Home >> Scion >> 2004 >> xA Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Diagnostics >> Location

Anti-Lock Brake System - Diagnostics: Location

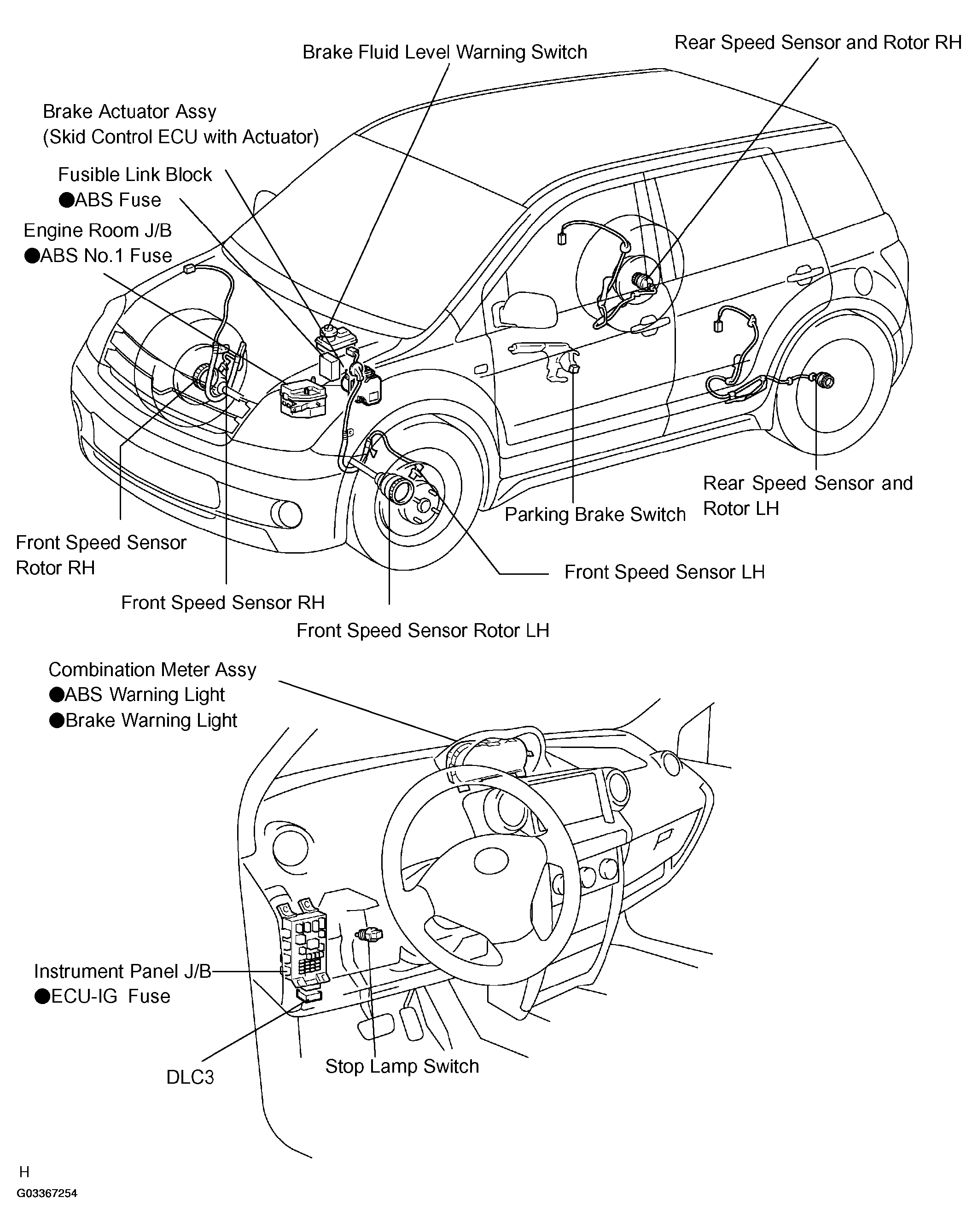

Fig 1: Identifying ABS With EBD System Components

G03367254

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
