Back Door: Adjustment

NOTE:

Use the same procedure for the RH side and LH side.

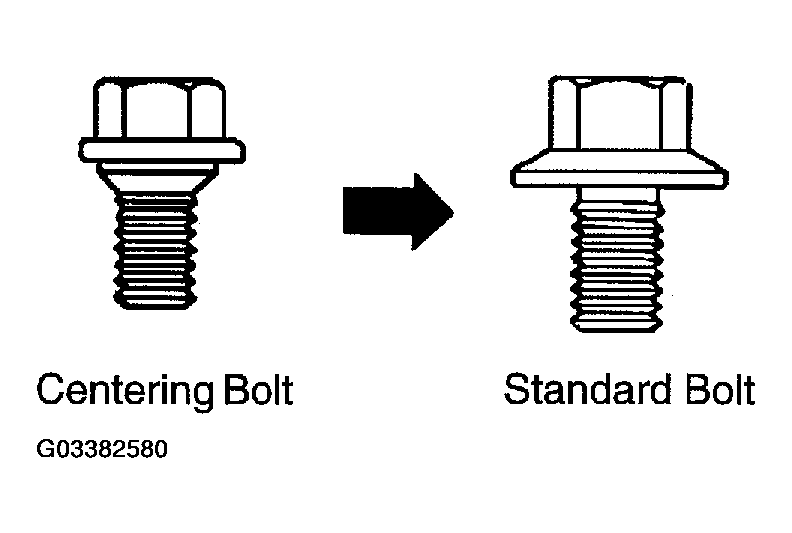

Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/ washers) when making adjustments.

Fig 1: Identifying Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BACK DOOR PANEL SUB-ASSY

Check that the clearance is within the standard range.

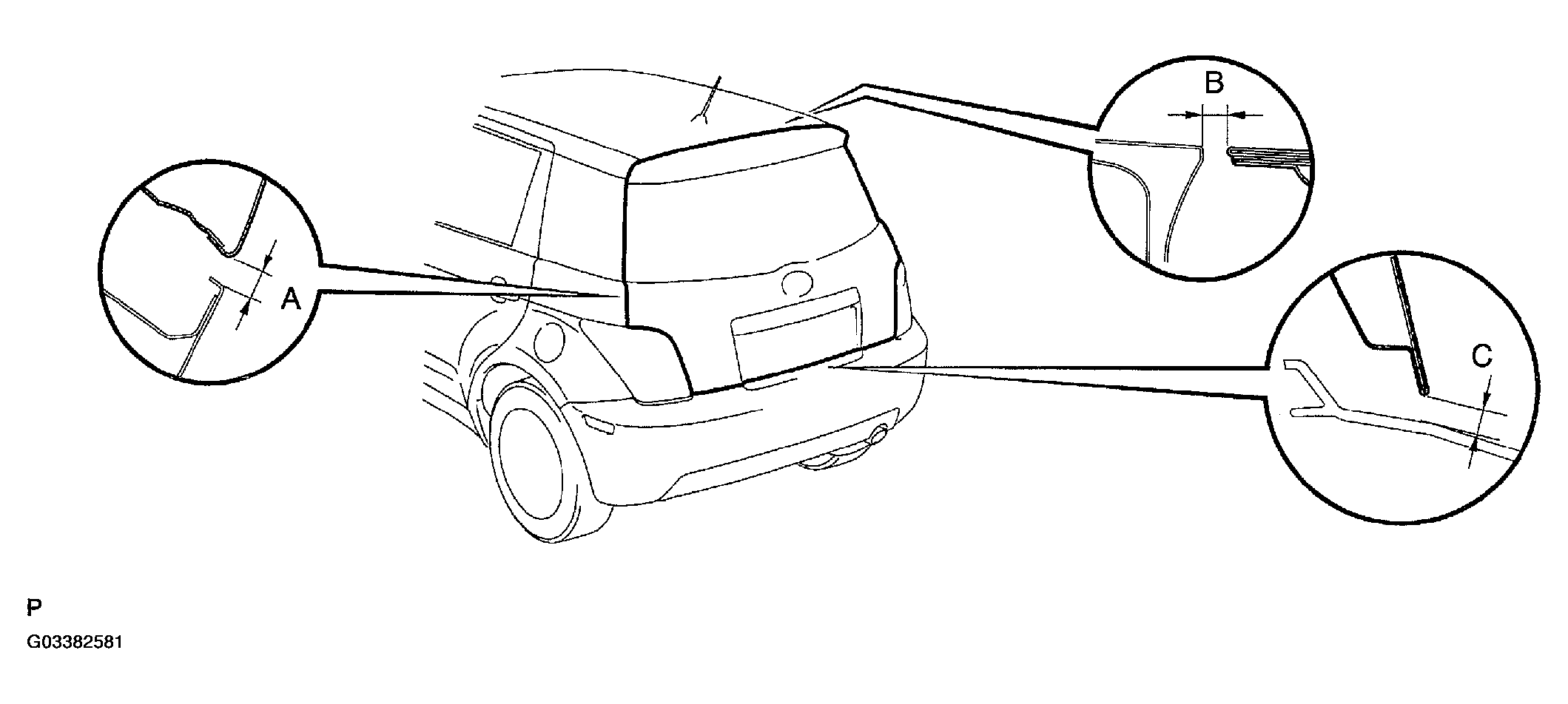

Fig 2: Identifying Back Door Panel Sub-Assy Clearances

G03382581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

MEASURING STANDARDS

Area	Measurement
A	6.0 +/- 1.5 mm (0.236 +/- 0.059 in.)
B	7.6 +/- 1.5 mm (0.300 +/- 0.059 in.)
C	7.0 +/- 1.5 mm (0.276 +/- 0.059 in.)

BACK DOOR PANEL SUB-ASSY
1. Remove the roof headlining.

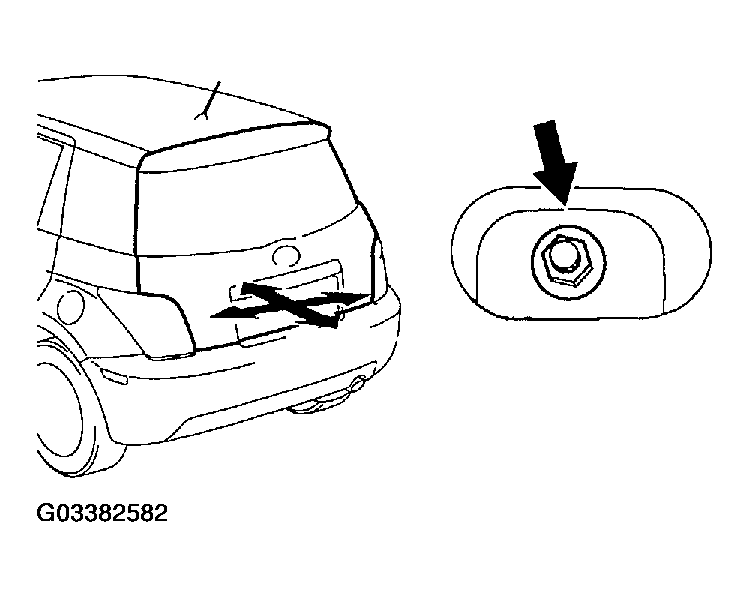

2. As shown in the illustration, adjust the door on the horizontal plane by loosening the body side hinge nuts.
3. Tighten the body side hinge nuts after the adjustment.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)
4. Horizontally and vertically adjust the door by loosening the door side hinge bolts.
5. Tighten the door side hinge bolts after the adjustment.
  Torque: 12 N.m (117 kgf.cm, 9 ft.lbf)

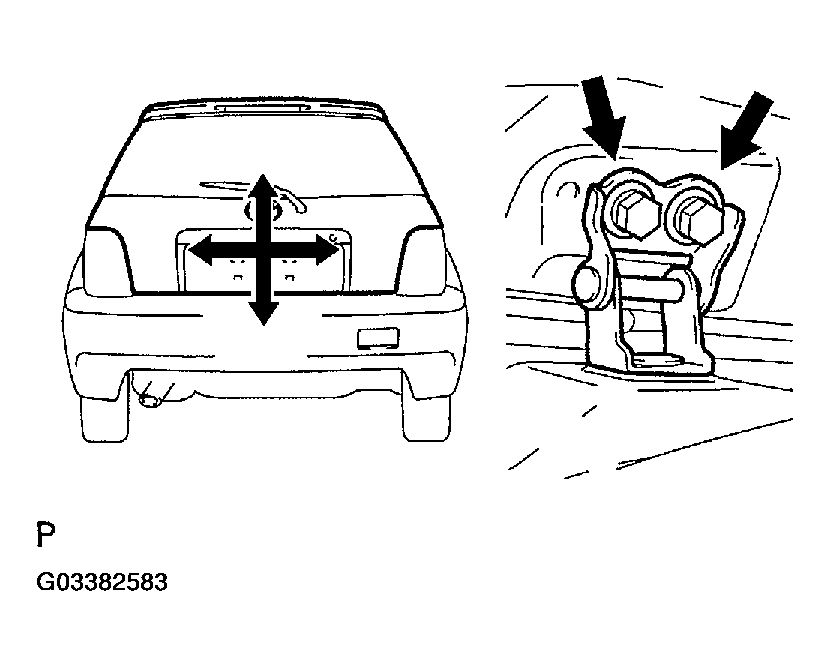

  Fig 4: Adjusting Door By Loosening Door Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the floor finish plate.
7. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
8. Tighten the striker mounting screws after the adjustment.
  Torque: 11.5 N.m (117 kgf.cm, 7.5 ft.lbf)

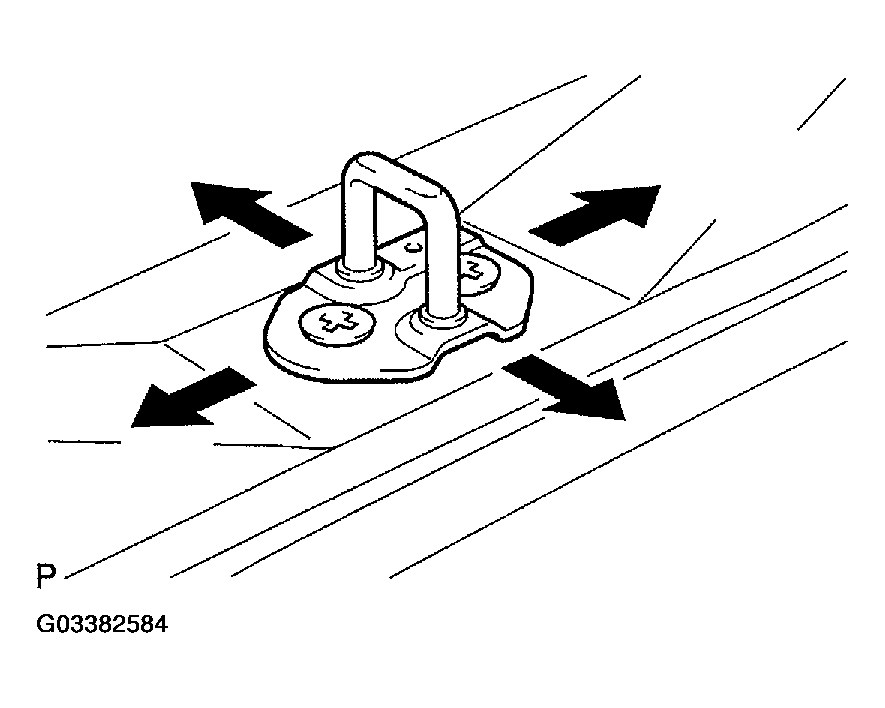

  Fig 5: Identifying Striker Mounting
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
