Audio & Visual System: Inspection

  1. FRONT NO. 1 SPEAKER ASSY
    1. Inspect front No. 1 speaker assy continuity.

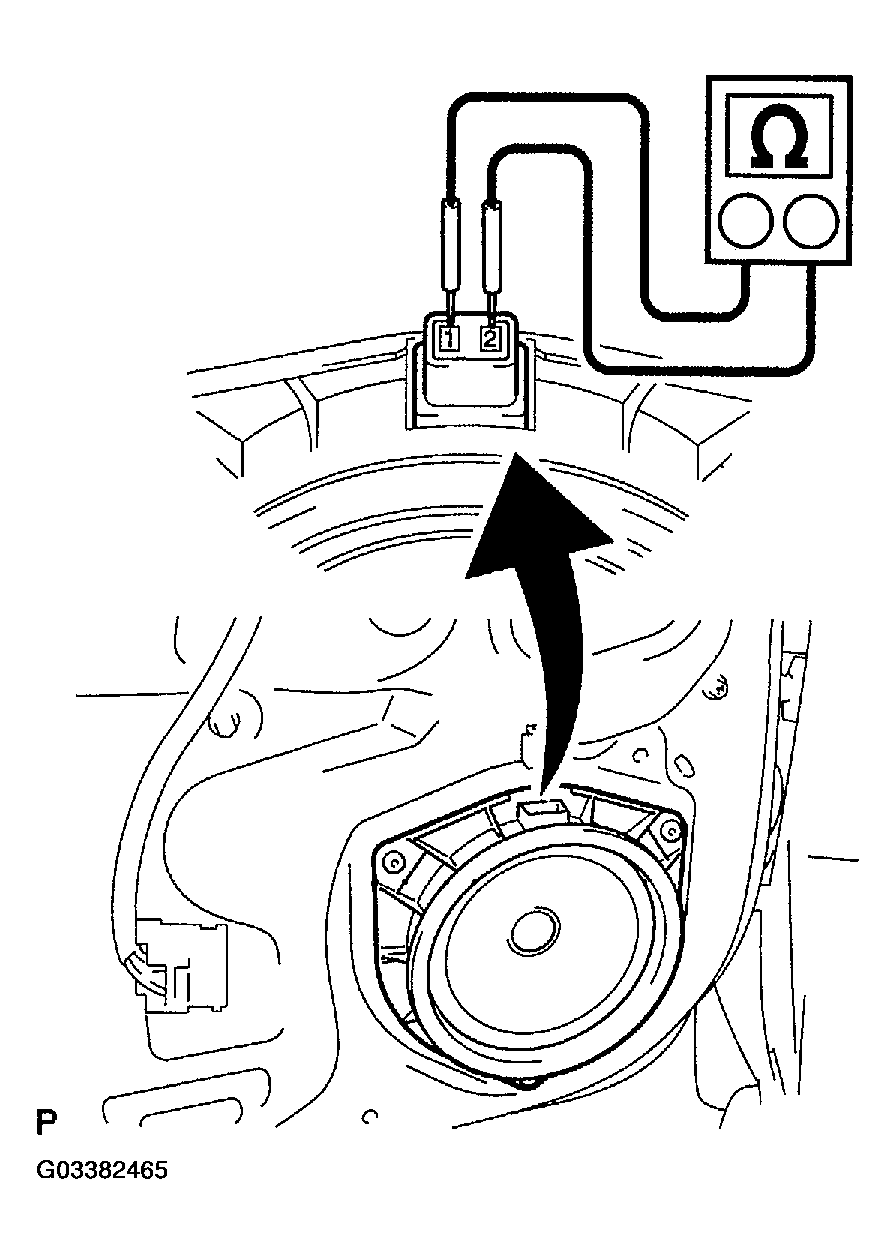

      Fig 1: Identifying Front Speaker
      G03382465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard:

        CONDITION AND SPECIFICATIONS

        Tester Connection Condition Specification
        1 - 2 Always 4 Ω
  2. FRONT NO. 2 SPEAKER ASSY
    1. Inspect front No. 2 speaker assy continuity.

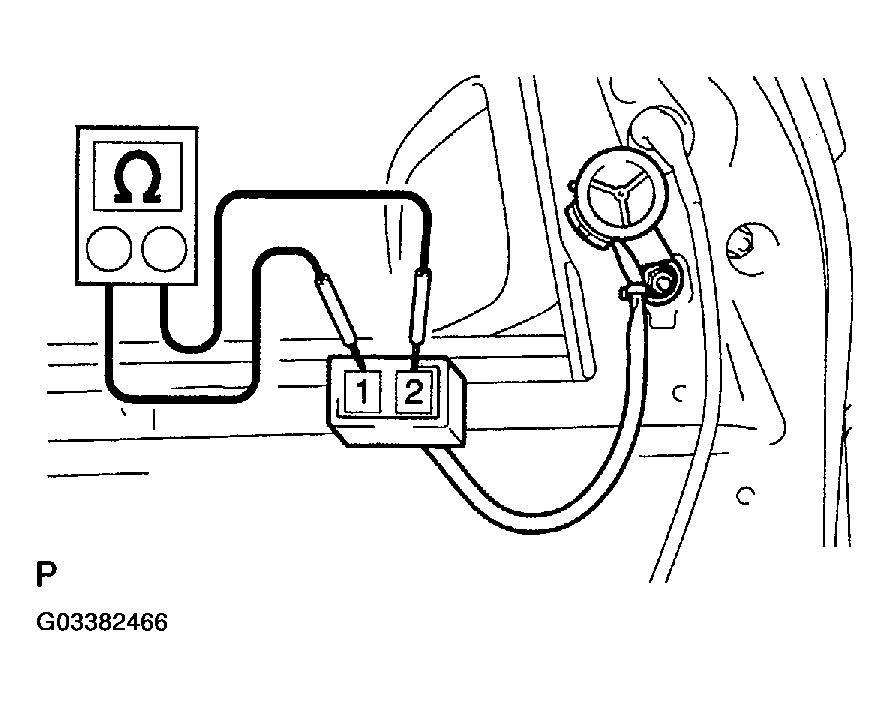

      Fig 2: Inspecting Front No. 2 Speaker Assy Continuity
      G03382466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below. Standard:
        CONDITION AND SPECIFICATIONS

        Tester Connection Condition Specification
        1 - 2 Always 4 Ω
  3. REAR SPEAKER ASSY
    1. Inspect rear speaker assy continuity.

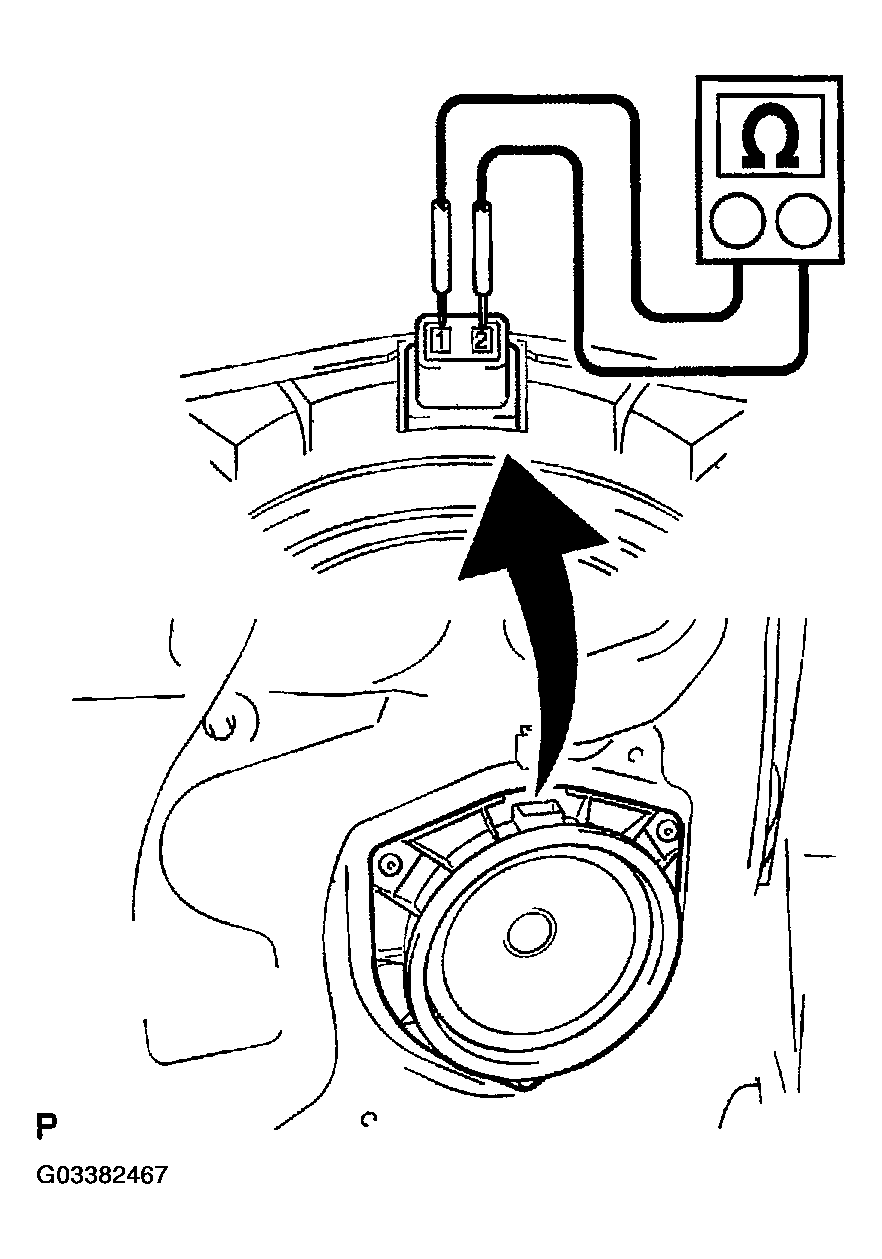

      Fig 3: Identifying Rear Speaker Assy
      G03382467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard:

        CONDITION AND SPECIFICATIONS

        Tester Connection Condition Specification
        1 - 2 Always 4 Ω
