Manual Shifting Test

PERFORM MANUAL SHIFTING TEST

NOTE: By this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transaxle.

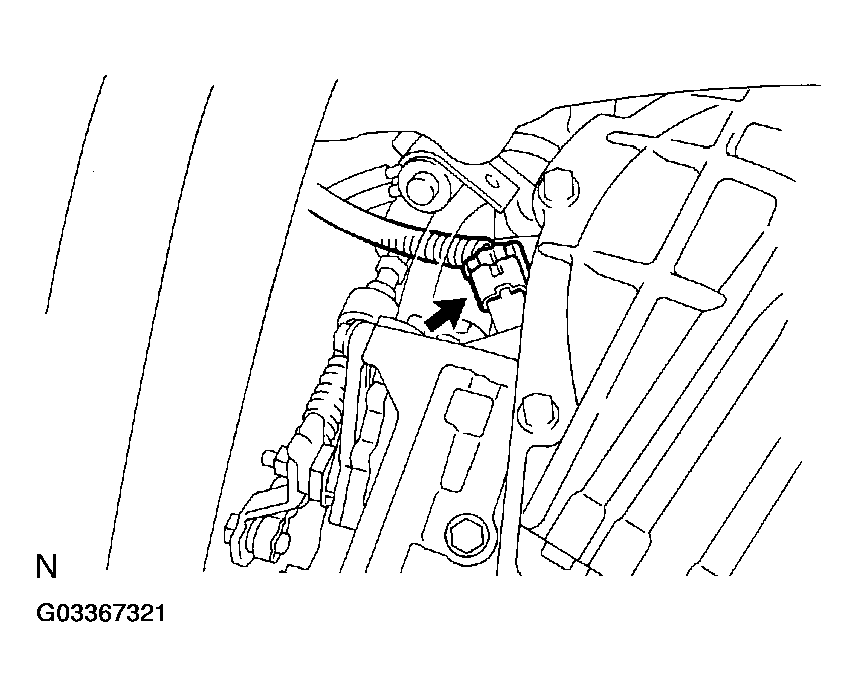

Fig 1: Disconnecting Transmission Wire Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inspect the manual driving operation.

Check that the shift and gear positions correspond to the table below.

While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.

SHIFT AND GEAR POSITION

NOTE: If the gear positions of the L, 2 and D are difficult to distinguish, do the following road test.

If any abnormality is found in the above test, the problem is in the transaxle itself.
