Transmission Revolution Sensor (ATM): Replacement

  1. REMOVE AIR CLEANER ASSY
  2. REMOVE AIR CLEANER BRACKET
    1. Disconnect wire harness clamp.
    2. Remove the 2 bolts and air cleaner bracket.

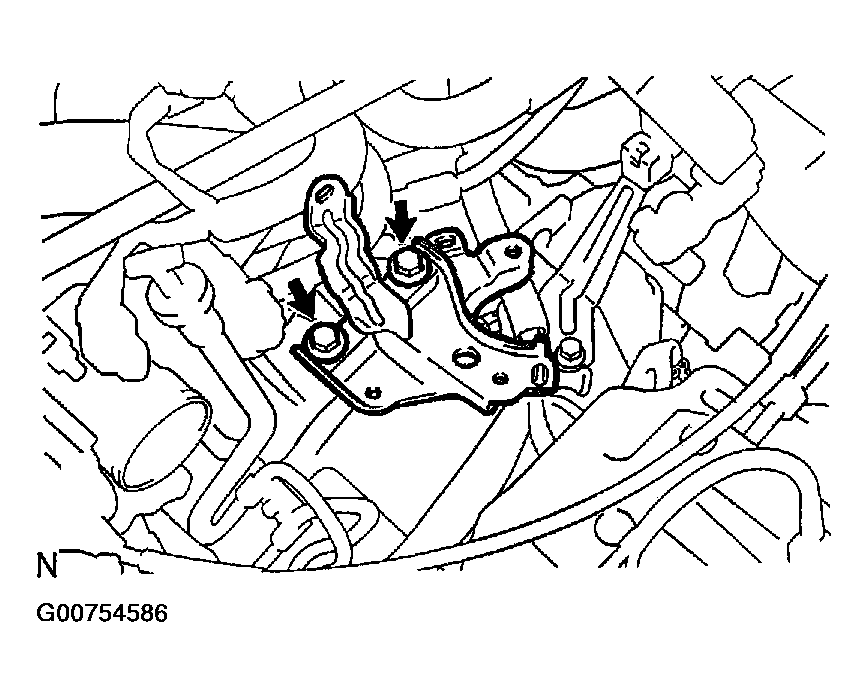

    Fig 1: Removing 2 Bolts And Air Cleaner Bracket
    G00754586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Disconnect the connector.
    2. Remove the bolt and transmission revolution sensor.

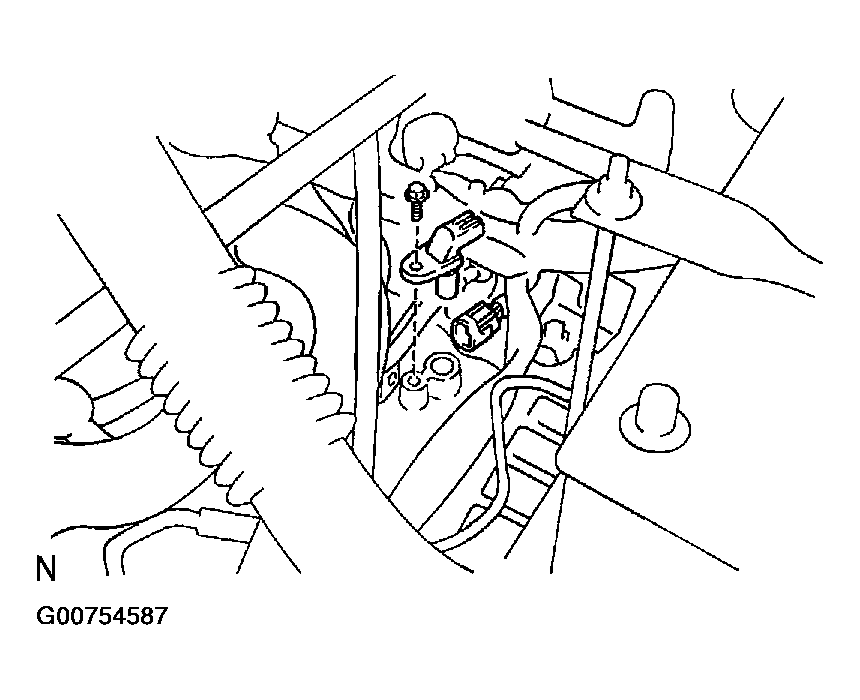

    Fig 2: Removing Bolt And Transmission Revolution Sensor
    G00754587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMISSION REVOLUTION SENSOR
    1. Coat the O-ring with ATF.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N-m (55 kgf.cm, 48 in.lbf)

    3. Connect the connector.

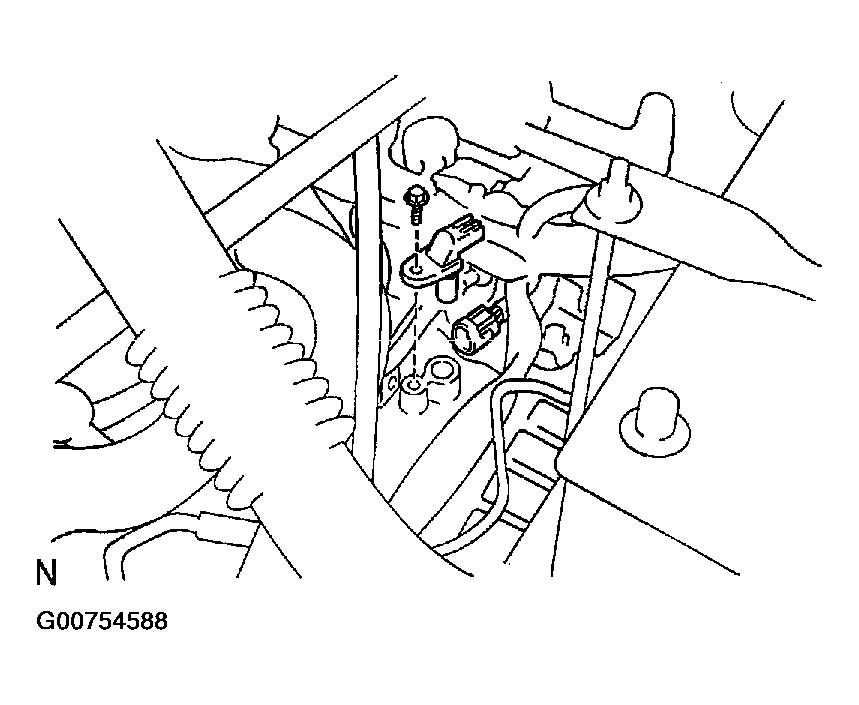

    Fig 3: Installing Transmission Revolution Sensor With Bolt
    G00754588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR CLEANER BRACKET
    1. Install the air cleaner bracket with the 2 bolts.

      Torque: 19 N-m (195 kgf.cm, 14 ft.lbf)

    2. Connect the wire harness clamp to the air cleaner bracket.

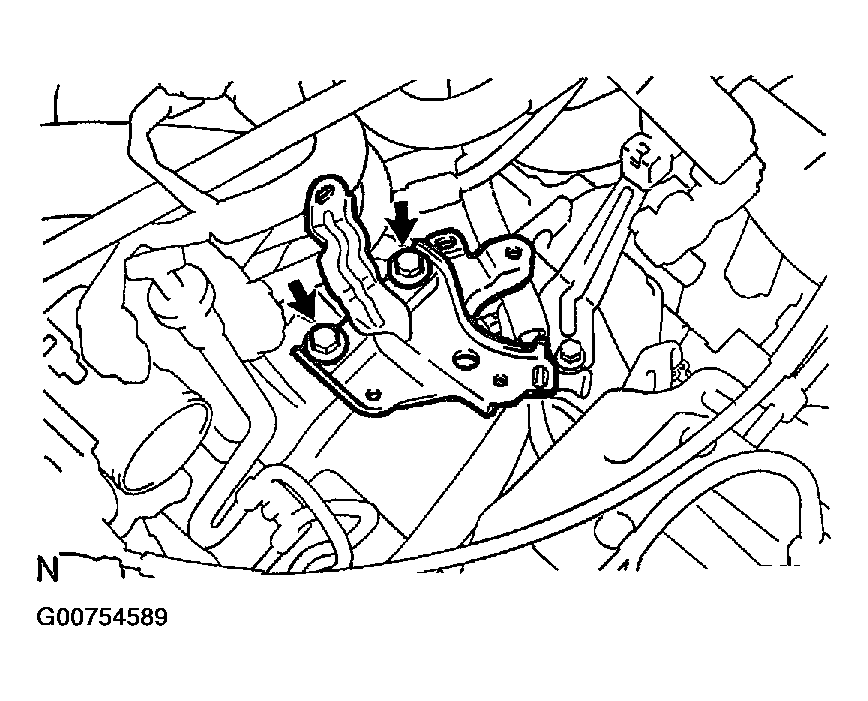

    Fig 4: Installing Air Cleaner Bracket With 2 Bolts
    G00754589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL AIR CLEANER ASSY
