Floor Shift ASSY (ATM): Components

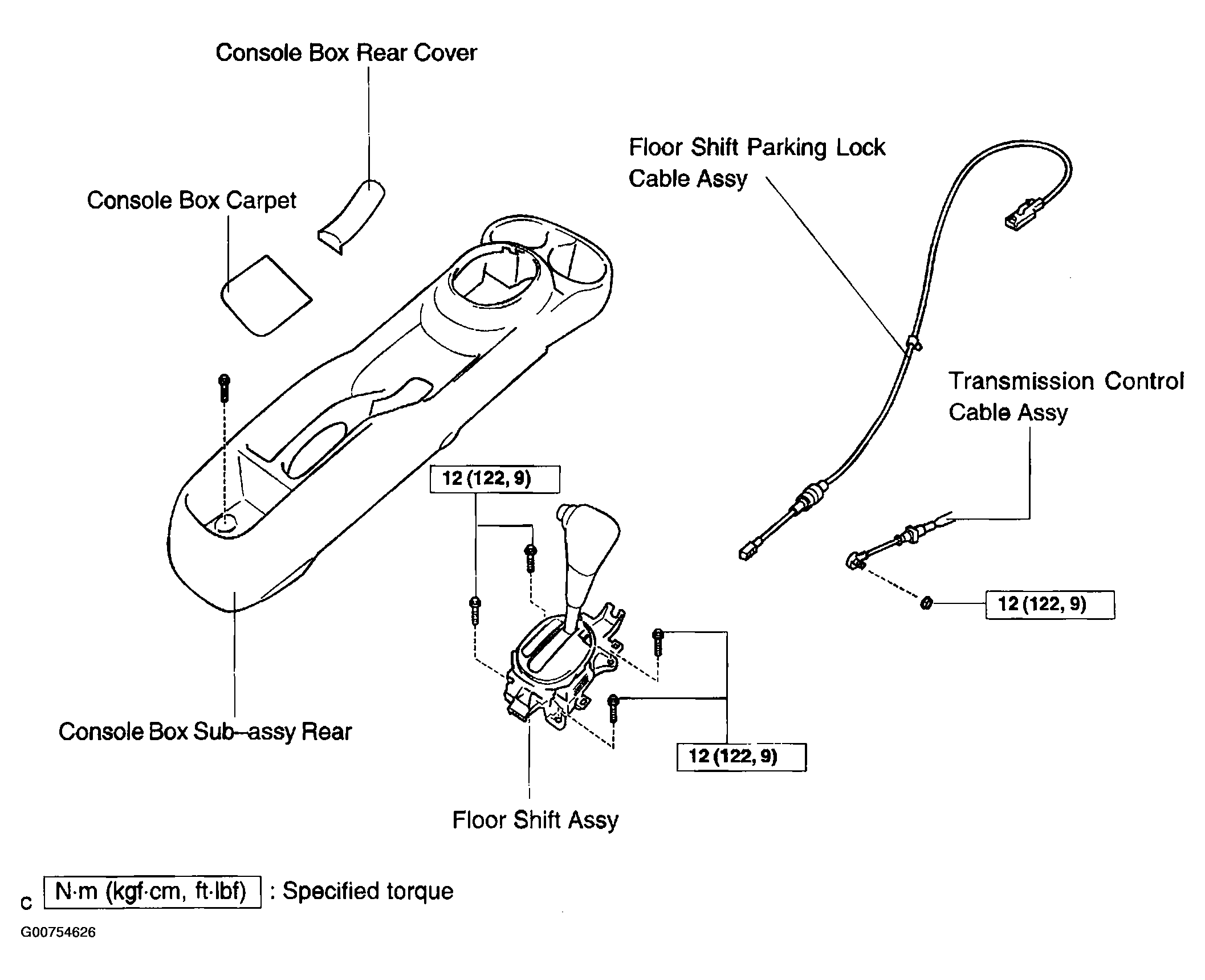

Fig 1: Locating Components Of Floor Shift Assembly (1 Of 2)
G00754626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

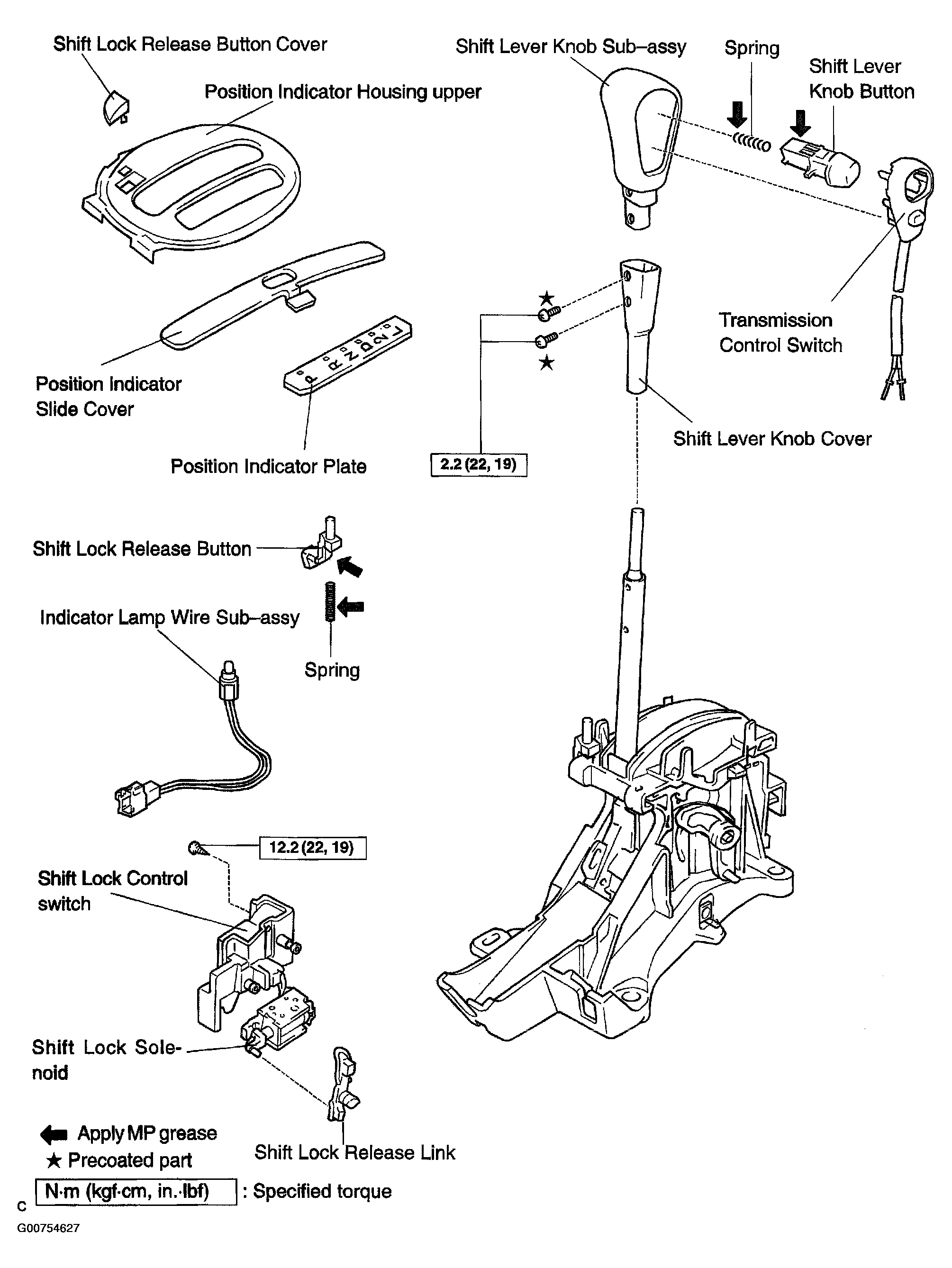

Fig 2: Locating Components Of Floor Shift Assembly (2 Of 2)
G00754627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
