Automatic Transaxle ASSY (ATM): Components

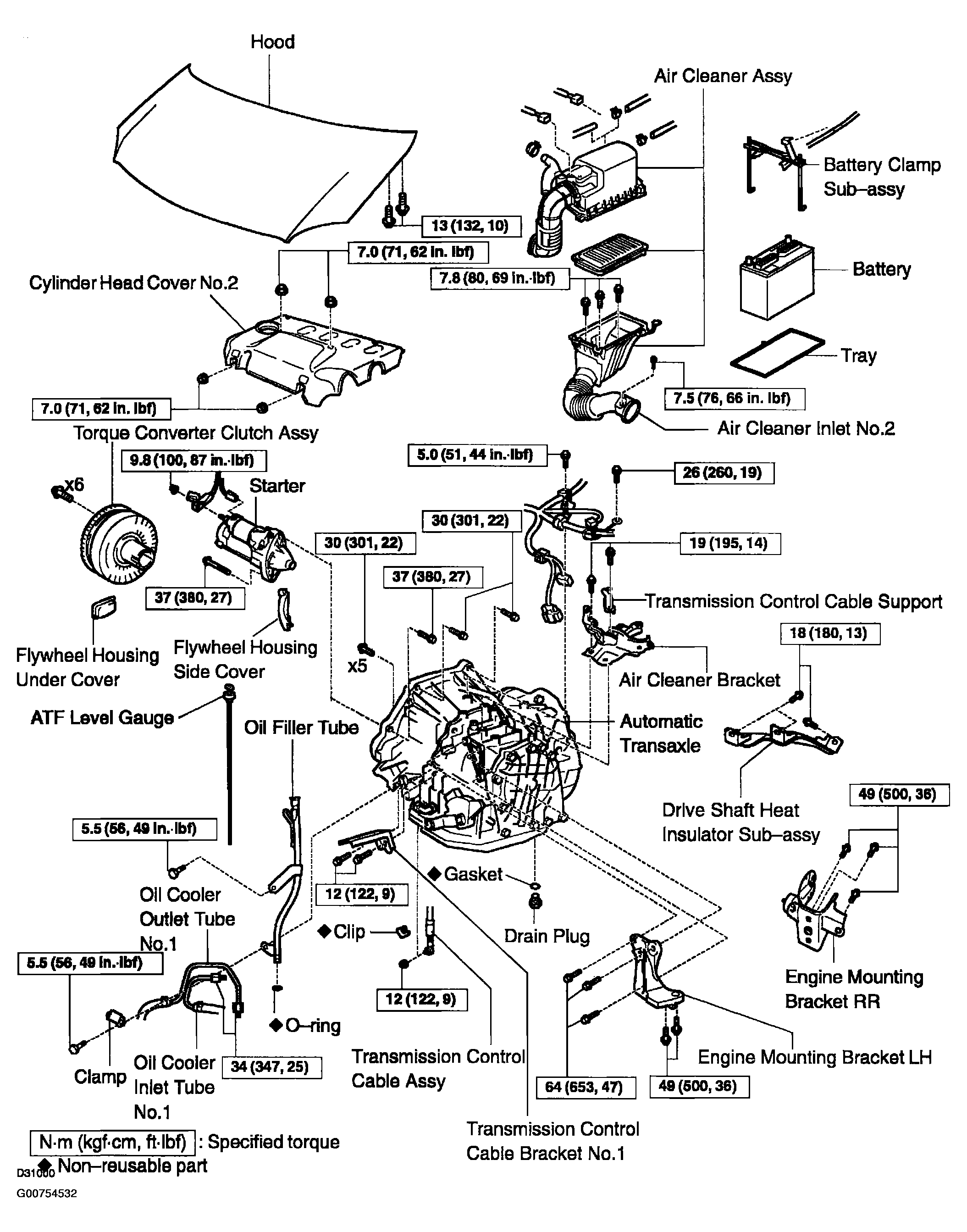

Fig 1: Locating Components Of Automatic Transaxle Assembly (ATM) (1 Of 2)
G00754532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

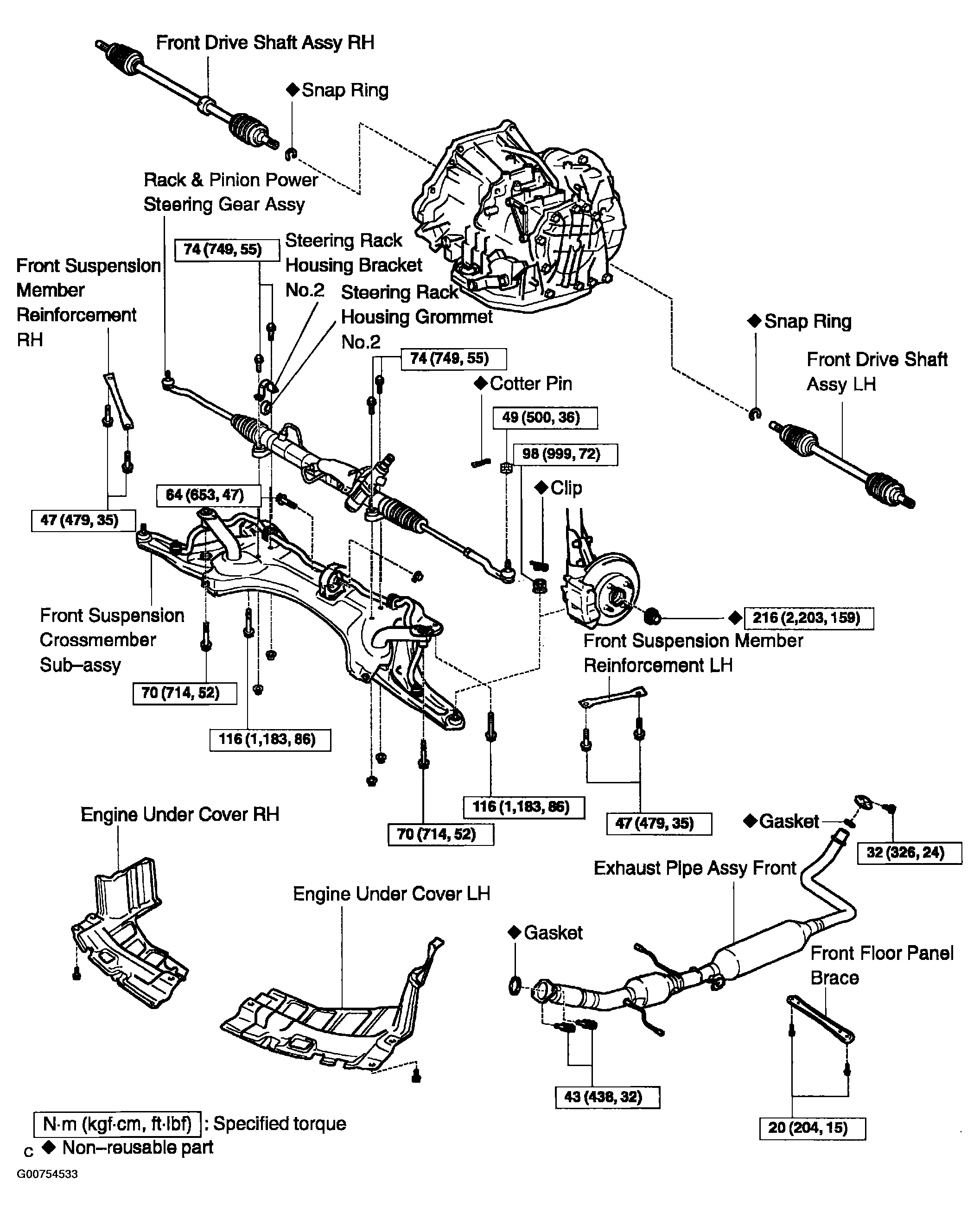

Fig 2: Locating Components Of Automatic Transaxle Assembly (ATM) (2 Of 2)
G00754533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
