Female Terminal

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

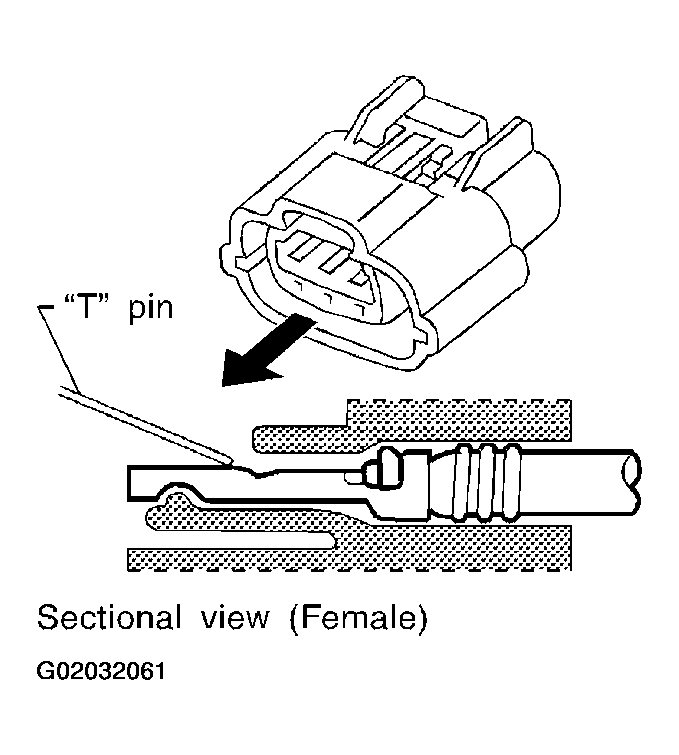

There is a small notch above each female terminal. Probe each terminal with the "T" pin through the notch.
Do not insert any object other than the same type male terminal into female terminal.

Fig 1: Probing From Terminal Side (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

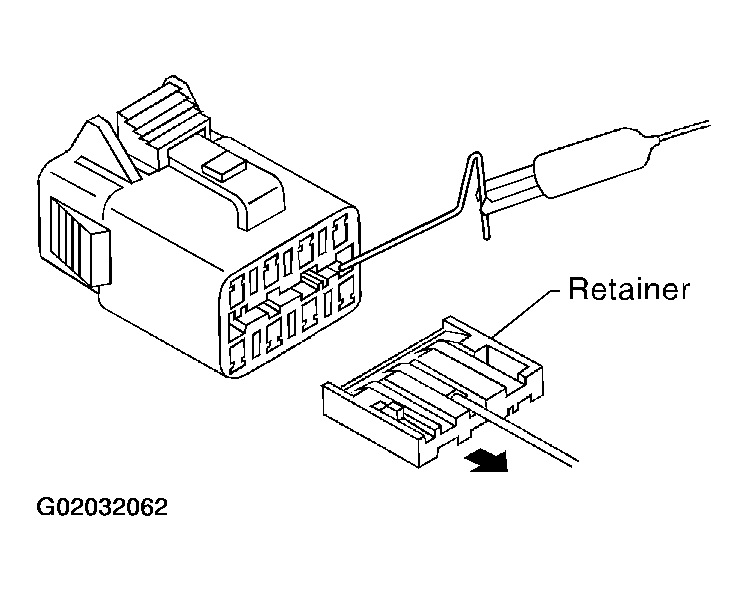

Some connectors do not have a notch above each terminal. To probe each terminal, remove the connector retainer to make contact space for probing.

Fig 2: Probing From Terminal Side (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
