WHEELARCH Height (Unladen*1)
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

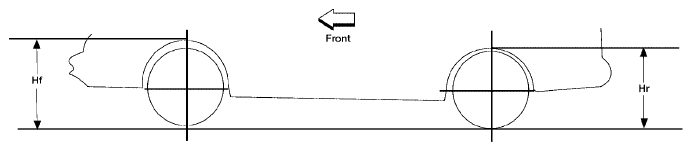

Wheelarch Height - Service Data And Specifications
| Unit: mm (in) | |||||||
|---|---|---|---|---|---|---|---|
| Drive type | 4X2 | 4X4 | |||||
| Body | King Cab | Crew Cab | King Cab | Crew Cab | |||
| Front wheelarch height (Hf) | 265/70R18 | 913 (35.9) | 916 (36.1) | 952 (37.5) (1) | 955 (37.6) (1) | ||
| 285/70R17 | 914 (36.0) | 917 (36.1) | 953 (37.5) (1) | 956 (37.6) (1) | |||
| 245/75R17 | 904 (35.6) | 907 (35.7) | 941 (37.0) | 944 (37.2) | |||
| Rear wheelarch height (Hr) | 265/70R18 | 955 (37.6) | 956 (37.6) | 995 (39.2) (1) | 996 (39.2) (1) | ||
| 285/70R17 | 956 (37.6) | 957 (37.7) | 996 (39.2) (1) | 997 (39.3) (1) | |||
| 245/75R17 | 946 (37.2) | 947 (37.3) | 984 (38.7) | 985 (38.8) | |||
| *1 : Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions. | |||||||
|
|||||||
