DTC P0120, DTC P0122, DTC P0123: Throttle/Pedal Position Sensor/Switch "A" Circuit: Wiring Diagram

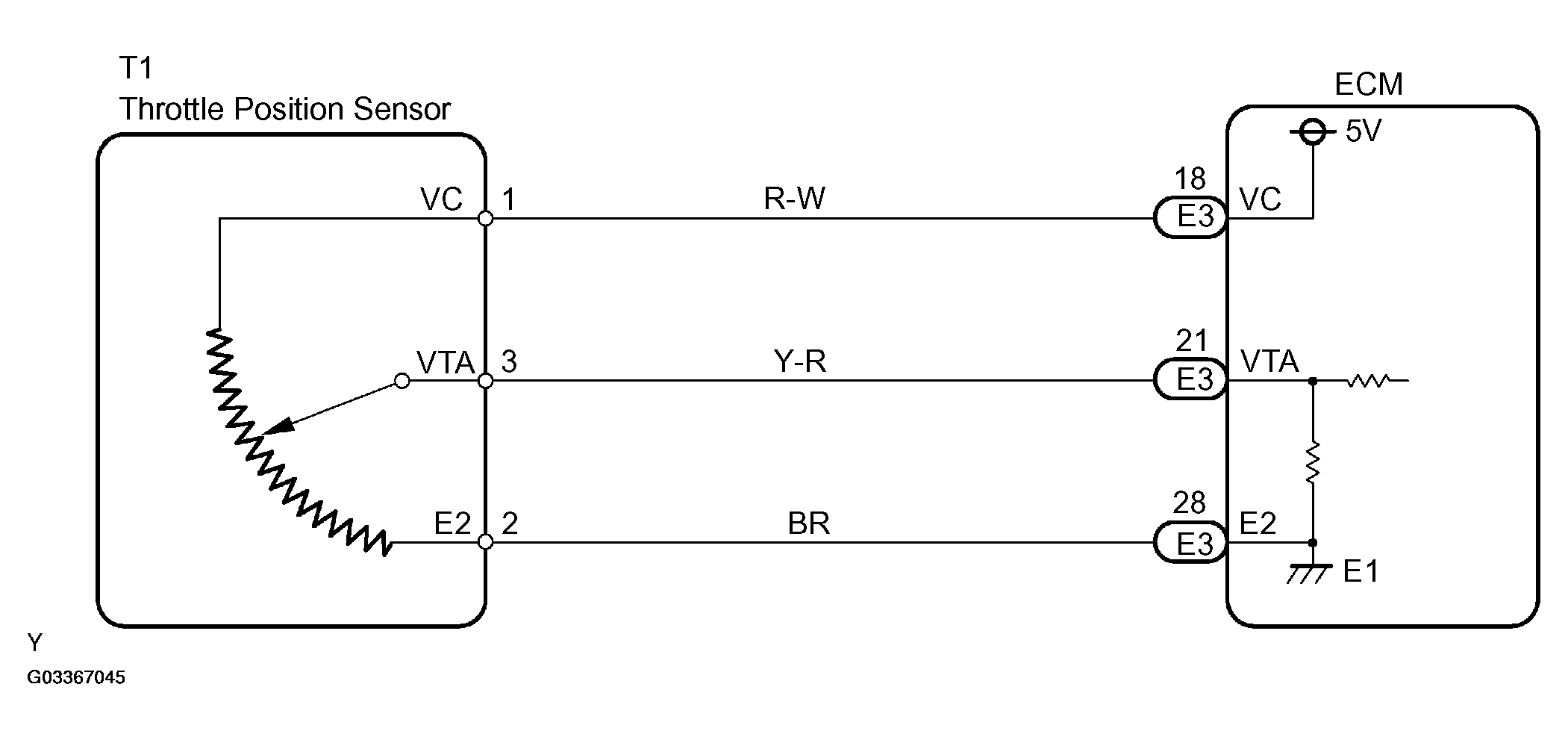

Fig 1: Throttle Position Sensor Wiring Diagram

G03367045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
