Diagnosis System

  1. INDICATOR CHECK

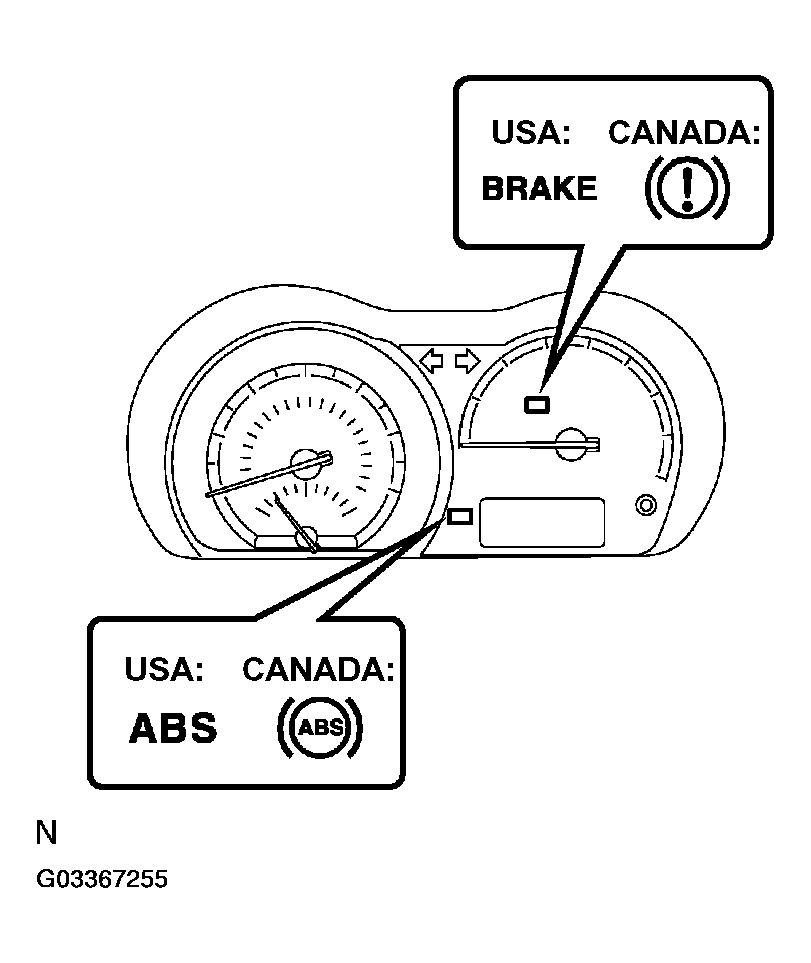

    Fig 1: Checking ABS & Brake Warning Light
    G03367255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Release the parking brake lever.
    2. Check the warning lights.

      When the ignition switch is turned ON, check that the ABS warning light and brake warning light goes on for 3 sec.

      NOTE:
      • When the parking brake is applied or the level of the brake fluid is low, the brake warning light comes on.
      • If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit or BRAKE warning light circuit.
        TROUBLE AREA SPECIFICATIONS

        Trouble Area See
        ABS Warning Light Circuit ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)
        BRAKE Warning Light Circuit BRAKE WARNING LIGHT CIRCUIT
