Powertrain Component Views
>>
Transmission Components (MH2/MH4)
Transmission Components (MH2/MH4)

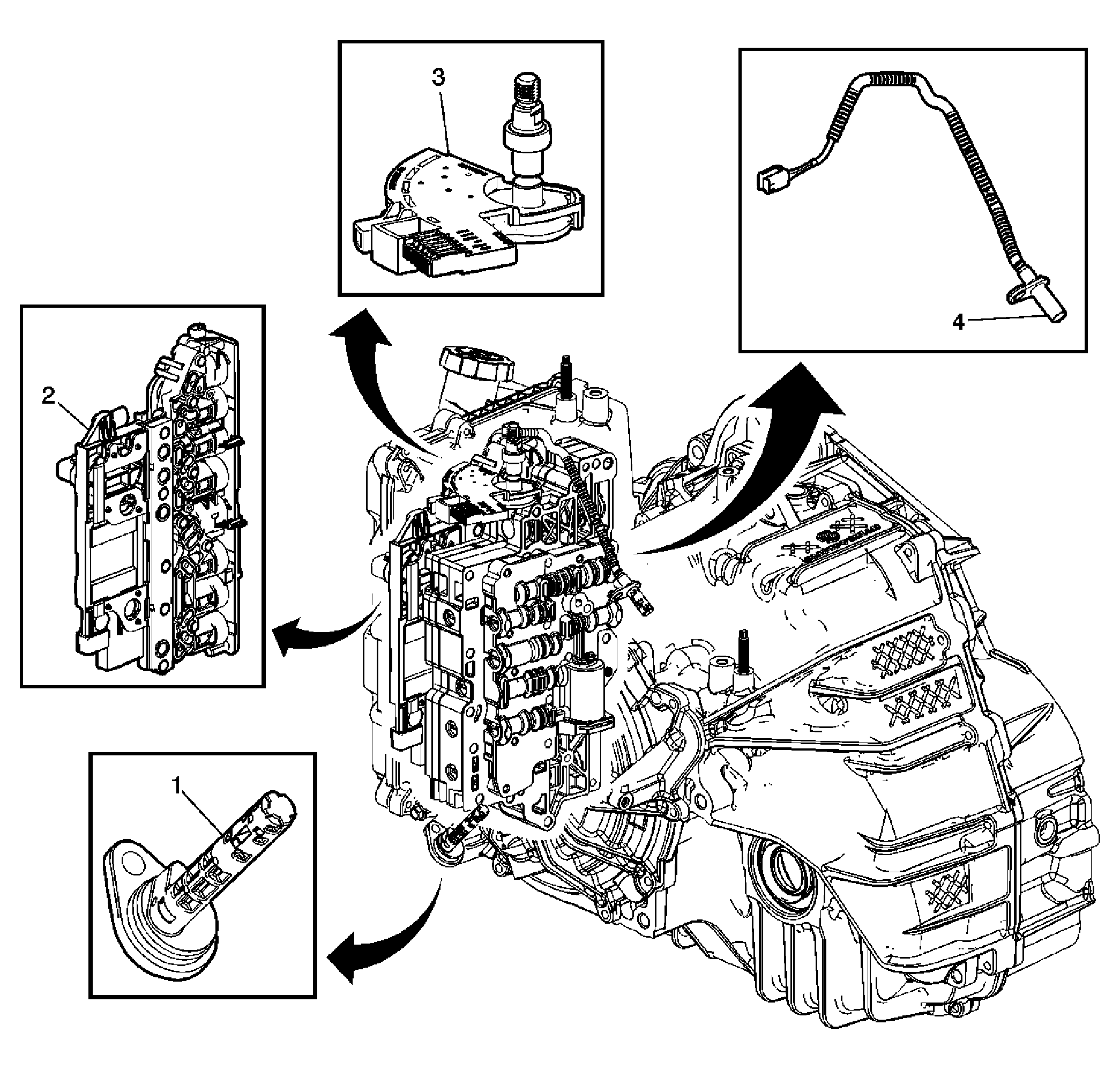

Fig 1: Transmission Components (MH2/MH4)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Automatic Transmission Input Shaft Speed (ISS) Sensor
2
Control Solenoid Valve Assembly X1
3
Automatic Transmission Shift Lever
4
Automatic Transmission Output Shaft Speed (OSS) Sensor
