Steering Column Components

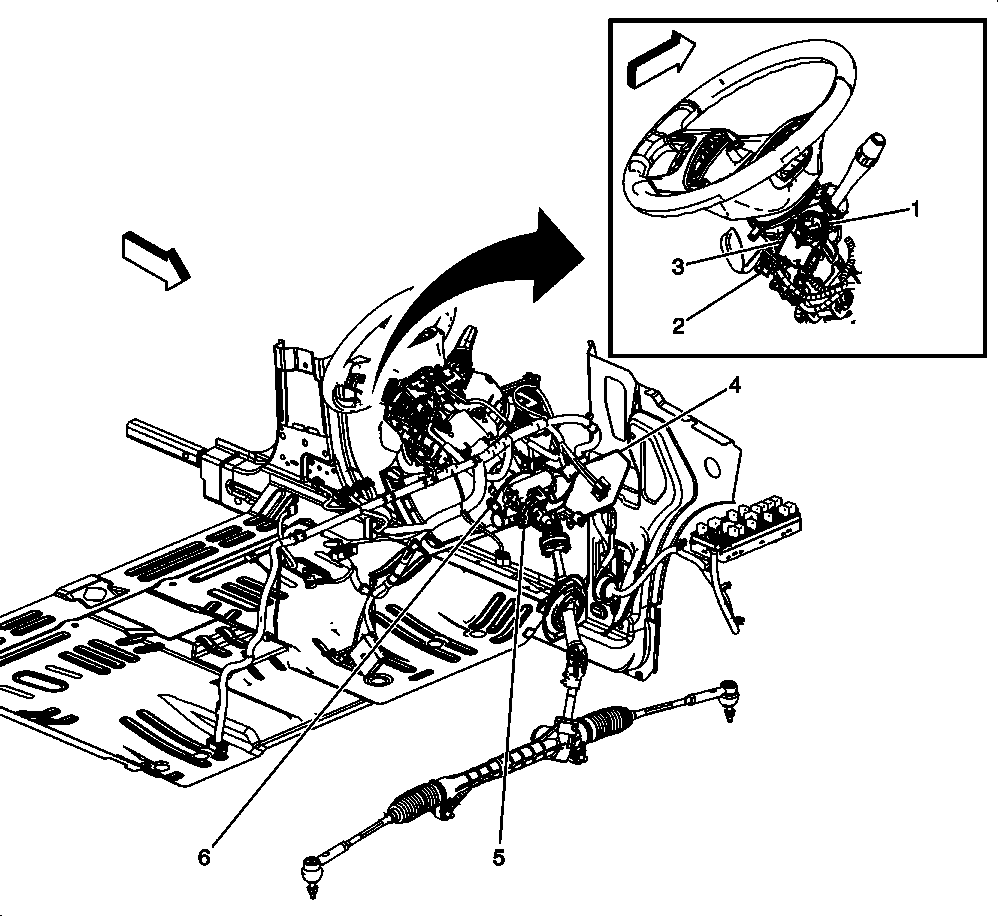

Fig 1: Steering Column Components
GM1906592Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Ignition Switch and Lamp
2 Ignition Lock Cylinder Control Solenoid (LAT or LE5 or LE9)
3 Theft Deterrent Module (TDM)
4 Electric Power Steering (EPS) Module (LAT or LE5 or LE9)
5 Steering Angle Sensor (LY7/LZ4)
6 Steering Shaft Torque Sensor (LAT or LE5 or LE9)
