Component Locations - Instrument Panel/Center Console Compartment Views
>>
Instrument Panel/Center Console Component Views
>>
Instrument Panel Components
Instrument Panel Components

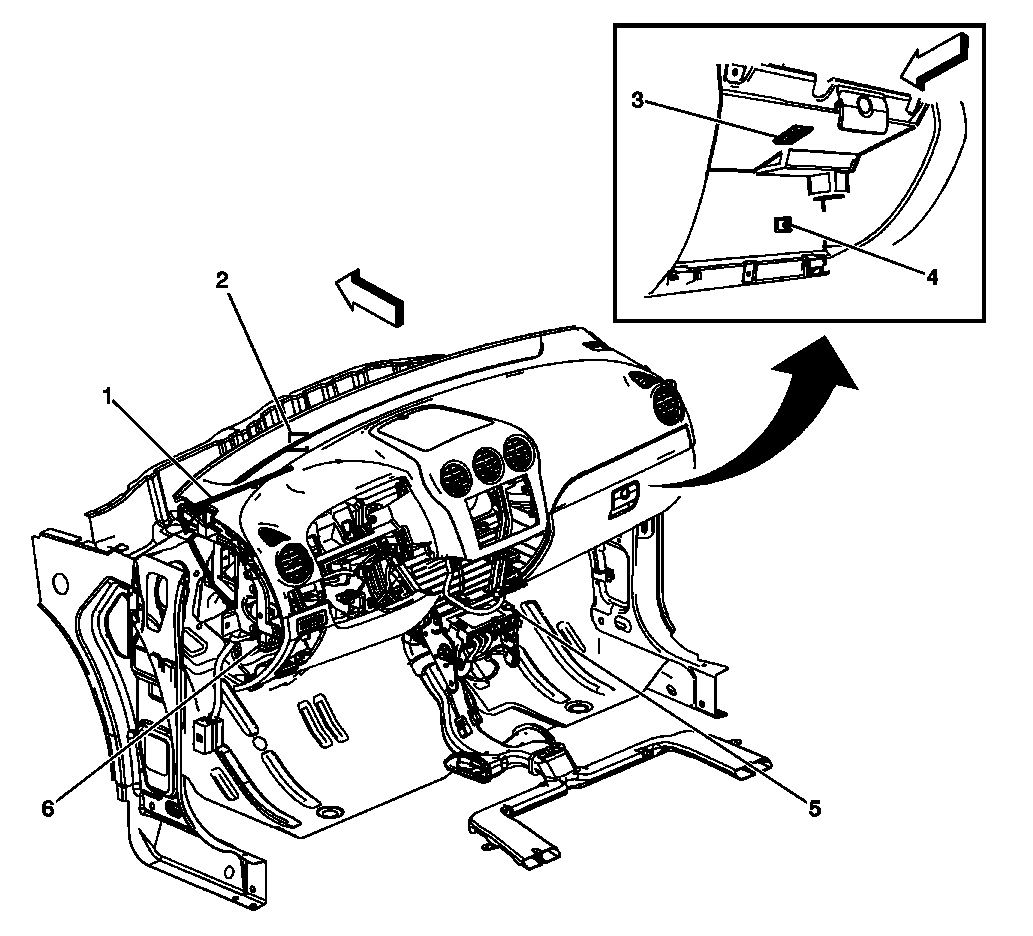

Fig 1: Instrument Panel Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Remote Control Door Lock Receiver (RCDLR) Antenna- Extended Range (AP3)
2
GPS Navigational Antenna - Radio
3
I/P Compartment Lamp
4
I/P Compartment Lamp Switch
5
Body Control Module (BCM)
6
Remote Control Door Lock Receiver (RCDLR) (AP3)
