Vue XR, 2.4 1
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Component Locations - Instrument Panel/Center Console Compartment Views
>>
Instrument Panel/Center Console Component Views
>>
HVAC Module Components
HVAC Module Components

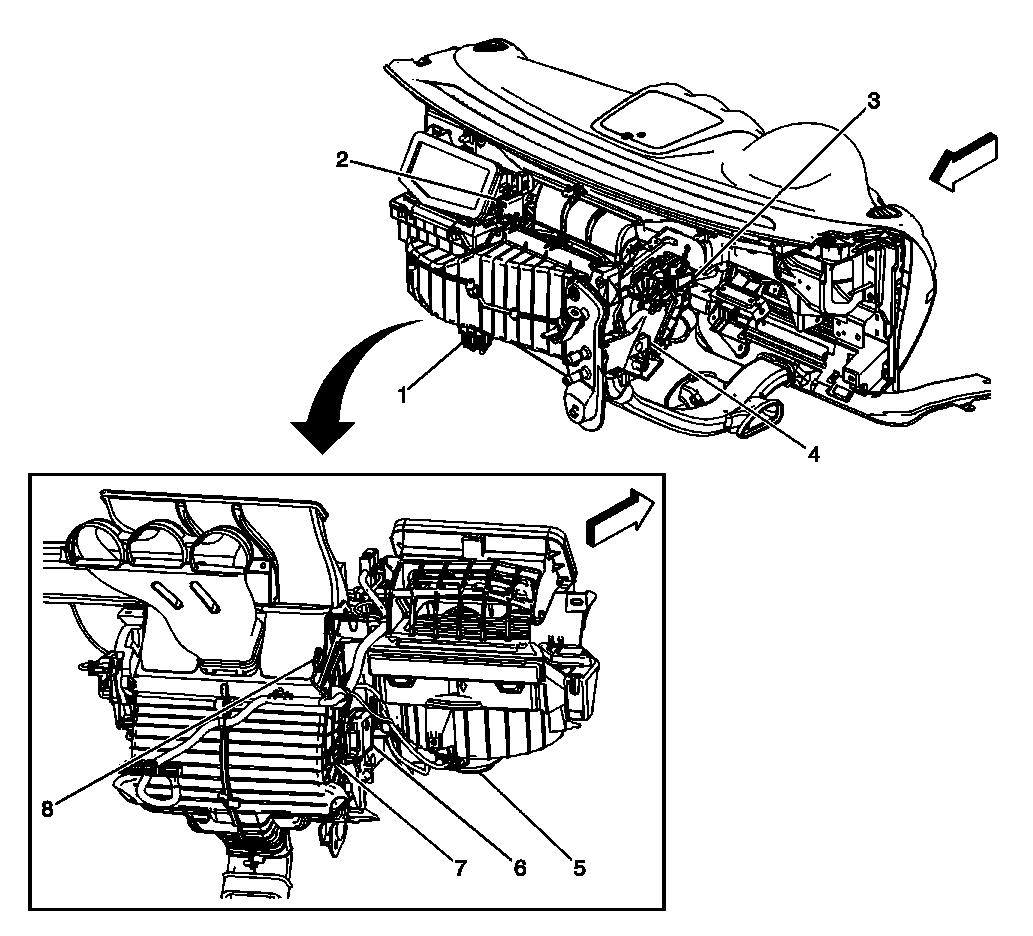

Fig 1: HVAC Module Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Blower Motor Control Module
2
Recirculation Actuator
3
Mode Actuator
4
Evaporator Temperature Sensor
5
Blower Motor
6
Air Temperature Actuator
7
Air Temperature Sensor- Lower (C68)
8
Air Temperature Sensor- Upper (C68)
