Component Locations - Instrument Panel/Center Console Compartment Views
>>
Instrument Panel/Center Console Component Views
>>
Floor Console Components
Floor Console Components

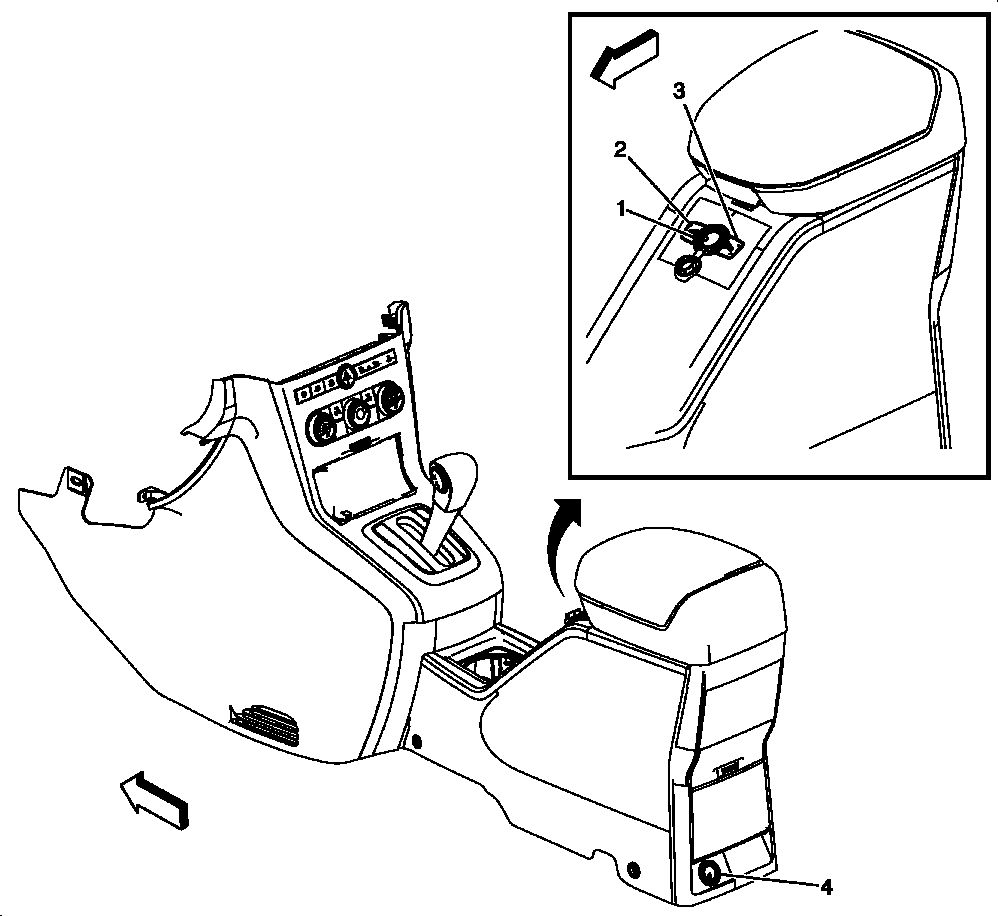

Fig 1: Floor Console Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Accessory Power Outlet- Console 1
2
Heated Seat Switch- Passenger (KA1)
3
Heated Seat Switch- Driver (KA1)
4
Accessory Power Outlet- Console 2
