Automatic Transmission Floor Shift Components

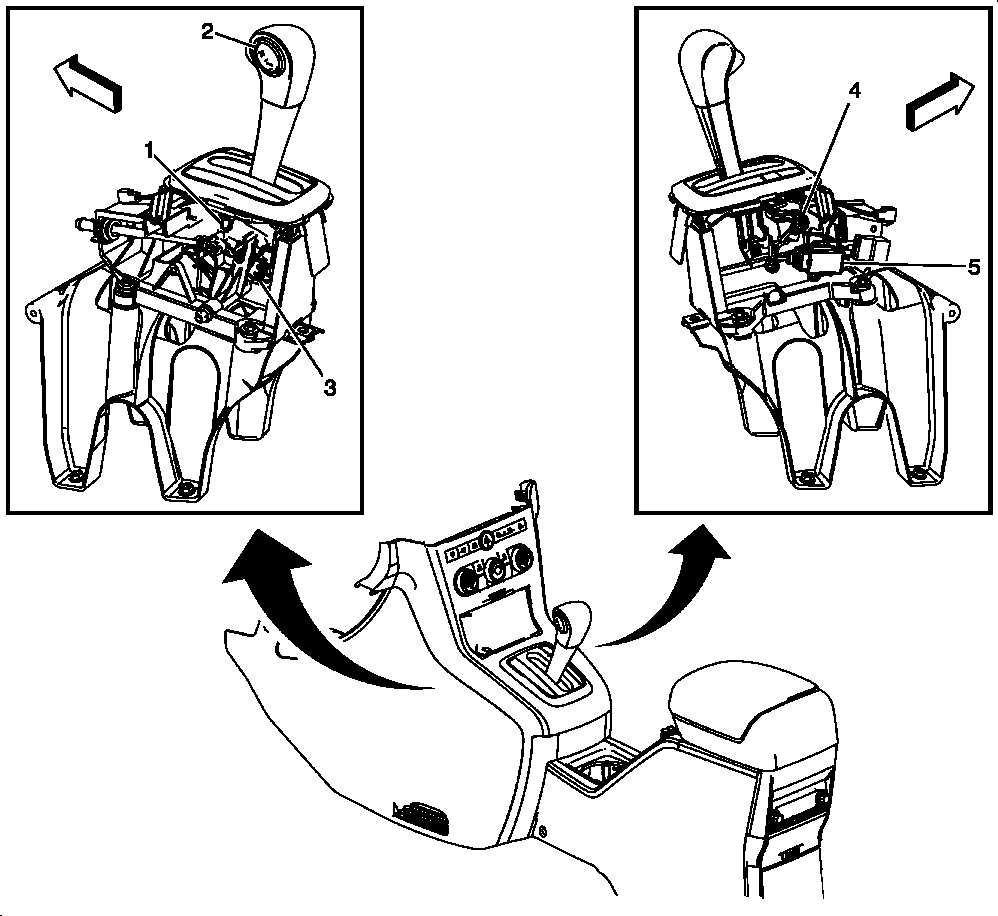

Fig 1: A/T Floor Shift Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Shift Lever Position Indicator
2	Automatic Transmission Manual Shift Switch (Tapup/Tapdown) 1
3	Automatic Transmission Manual Shift Switch (Tapup/Tapdown) 2
4	Park Position Switch
5	Automatic Transmission Shift Lock Control Solenoid
