Removal Procedure

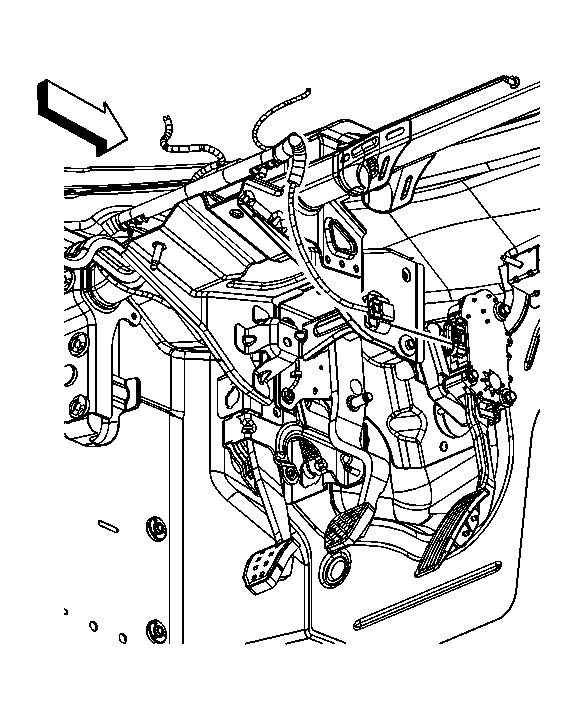

    Fig 1: View Of APP Sensor Electrical Connector
    GM1593852Courtesy of GENERAL MOTORS CORP.
  1. Remove the knee bolster. Refer to Knee Bolster Replacement (SKY) or Knee Bolster Replacement (Solstice) .
  2. Disconnect the accelerator pedal position (APP) sensor electrical connector.

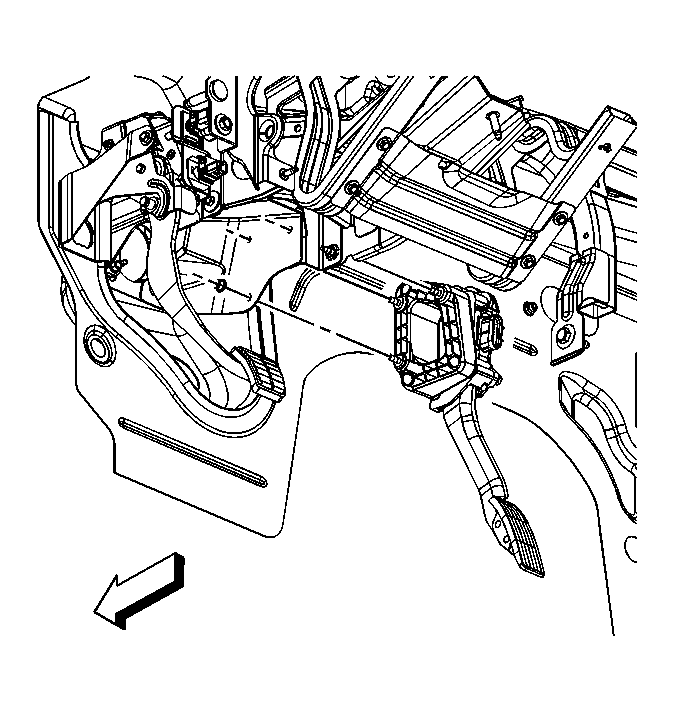

    3. Fig 2: Locating APP Sensor
    GM1593853Courtesy of GENERAL MOTORS CORP.
  3. Remove the APP sensor nuts.
  4. Remove the APP sensor from the vehicle.
