Installation Procedure

    Fig 1: View Of Upper Intake Manifold
    GM1775003Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW throttle body gasket (7).
  2. Install the throttle body (8).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the throttle body bolts (9) and nuts (10).

    Tighten:  Tighten the bolts/nuts to 10 N.m (89 lb in).

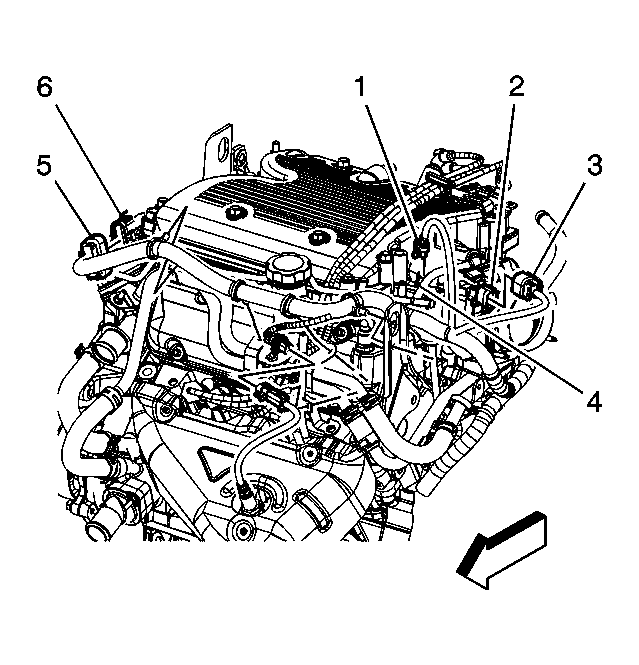

    4. Fig 2: Engine Wiring Harness Electrical Connector
    GM1883868Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (3) to the ETC (2).
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  6. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
