Installation Procedure

    Fig 1: Fuel Level Sensor Retainers
    GM1885402Courtesy of GENERAL MOTORS CORP.
  1. Position the fuel level sensor (2) to the fuel tank fuel pump module.
  2. Push the fuel level sensor down until the retainers (1) engage the fuel tank fuel pump module.

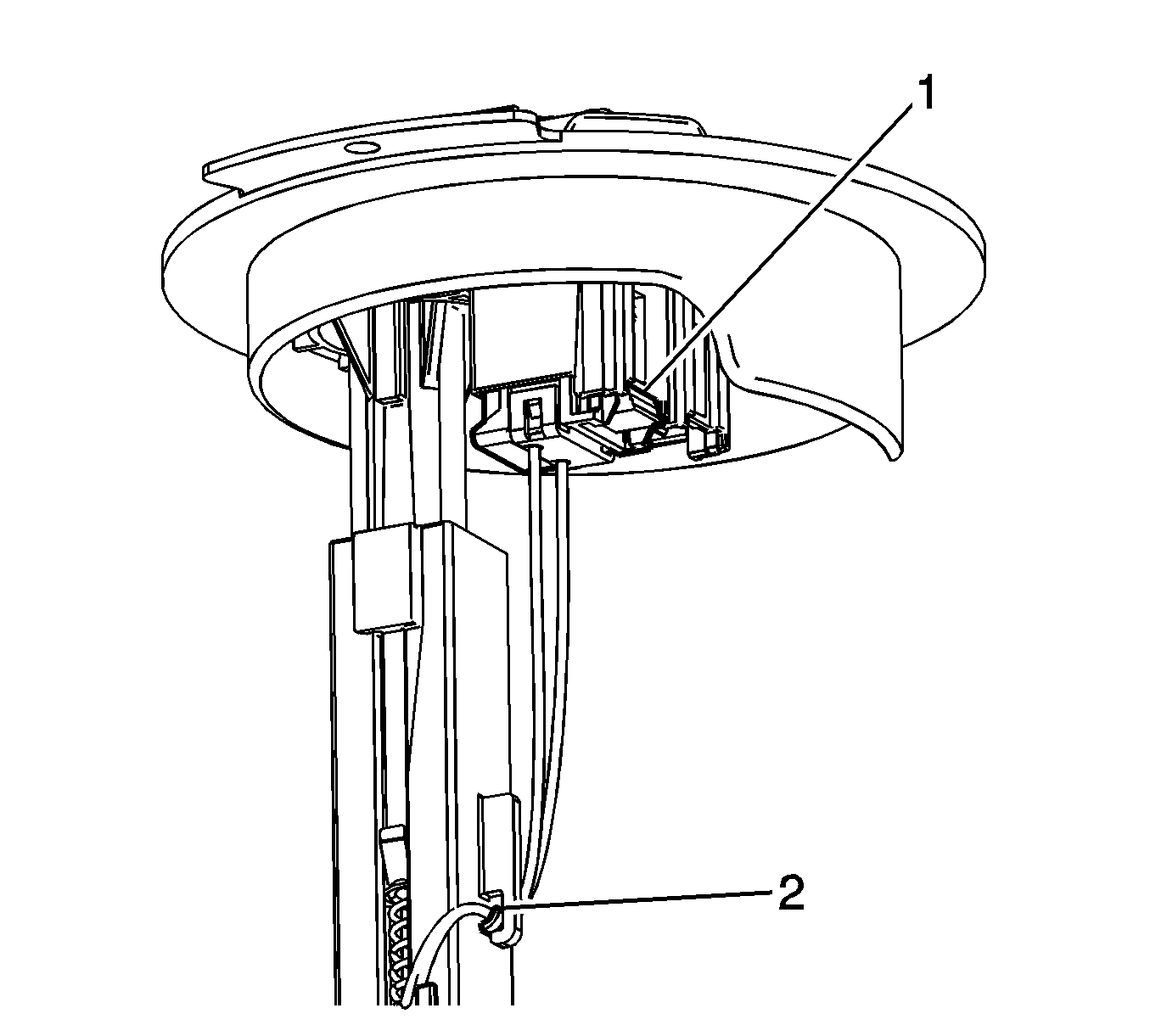

    3. Fig 2: Fuel Level Sender Electrical Connector
    GM1885401Courtesy of GENERAL MOTORS CORP.
  3. Connect the fuel level sender electrical connector (1) to the fuel tank fuel pump module cover.
  4. Install the fuel level sensor wiring to the retaining feature (2) on the fuel tank fuel pump module.
  5. Install the fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement - Secondary .
