Installation Procedure

    Fig 1: Identifying MAP Sensor
    GM1581050Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the NEW MAP sensor seal with clean engine oil.
  2. Install the MAP sensor into the intake manifold.
  3. Connect the engine harness electrical connector to the MAP sensor.
  4. Position and connect the fuel injector wiring harness.

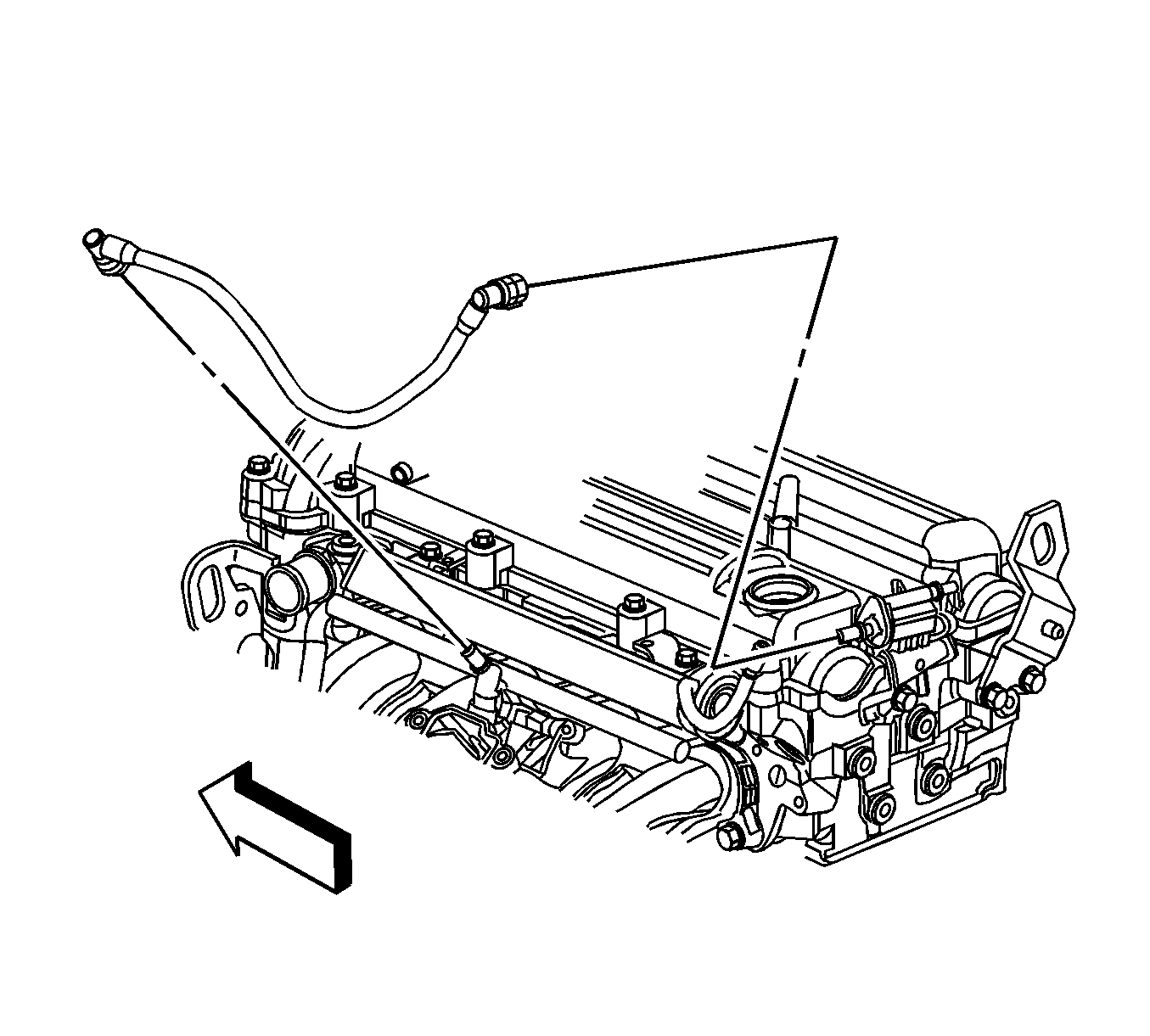

    5. Fig 2: EVAP Canister Purge Valve Tube
    GM1571757Courtesy of GENERAL MOTORS CORP.
  5. Position the EVAP canister purge tube to the intake manifold.
  6. Connect the EVAP canister purge tube to the intake manifold. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
