Installation Procedure

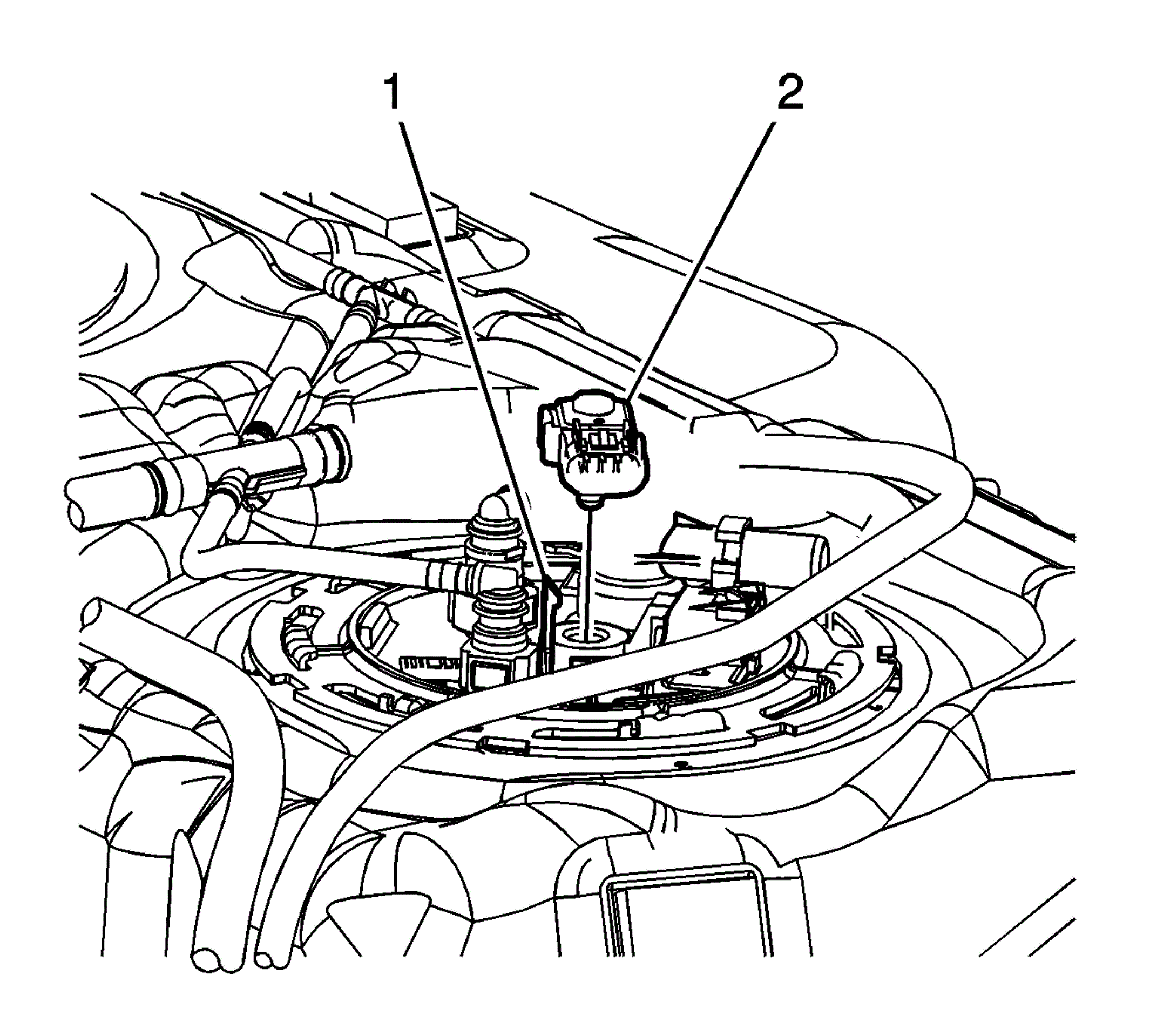

    Fig 1: Fuel Tank Pressure Sensor
    GM1885238Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank pressure sensor (2) to the fuel pump module assembly until the sensor engages the retaining tab (1).

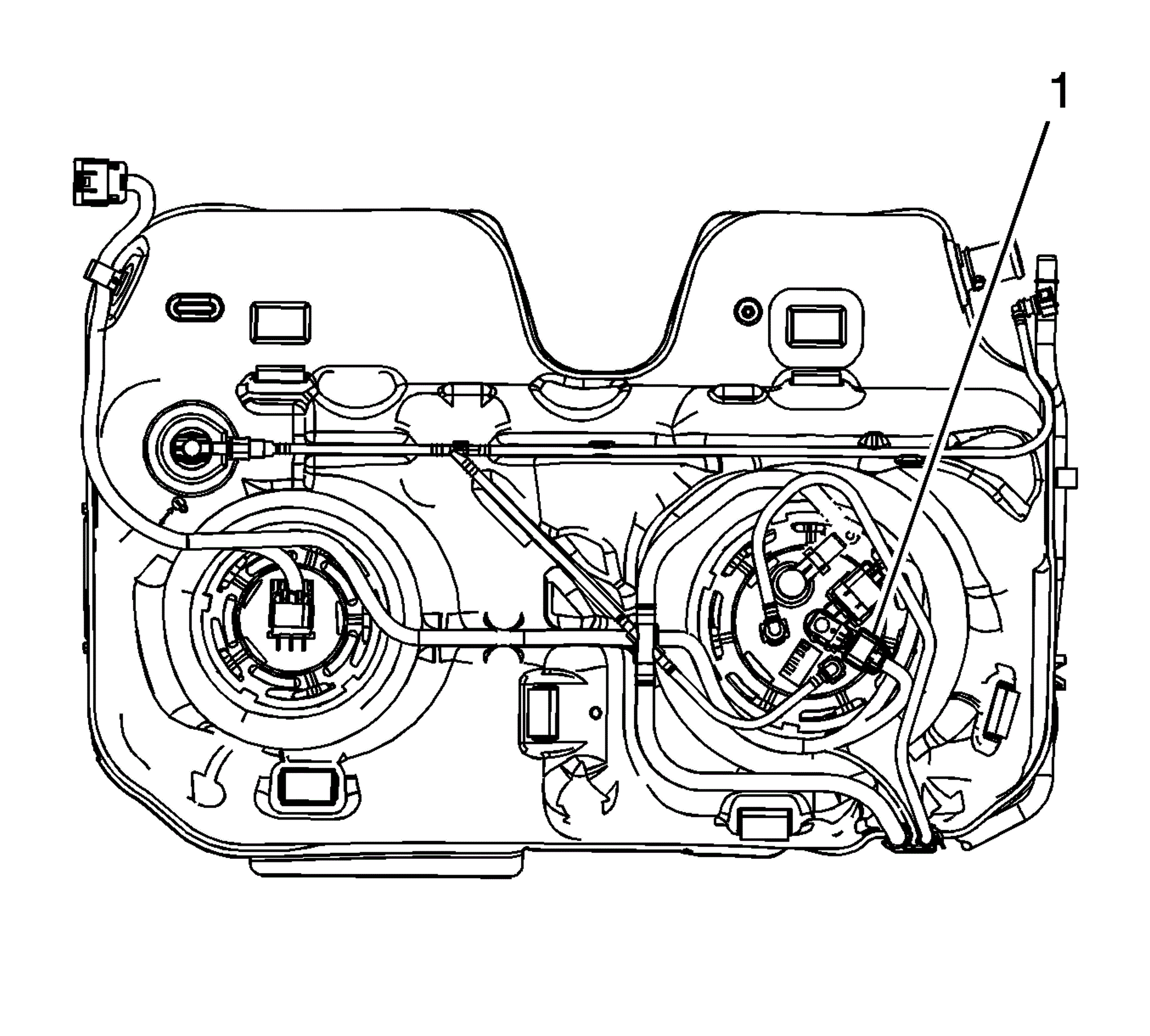

    2. Fig 2: Fuel Tank Wiring Harness Electrical Connector
    GM1885236Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel tank wiring harness electrical connector (1) to the fuel tank pressure sensor.
  3. Install the fuel tank. Refer to Fuel Tank Replacement (AWD)  or Fuel Tank Replacement (FWD) .
