Installation Procedure

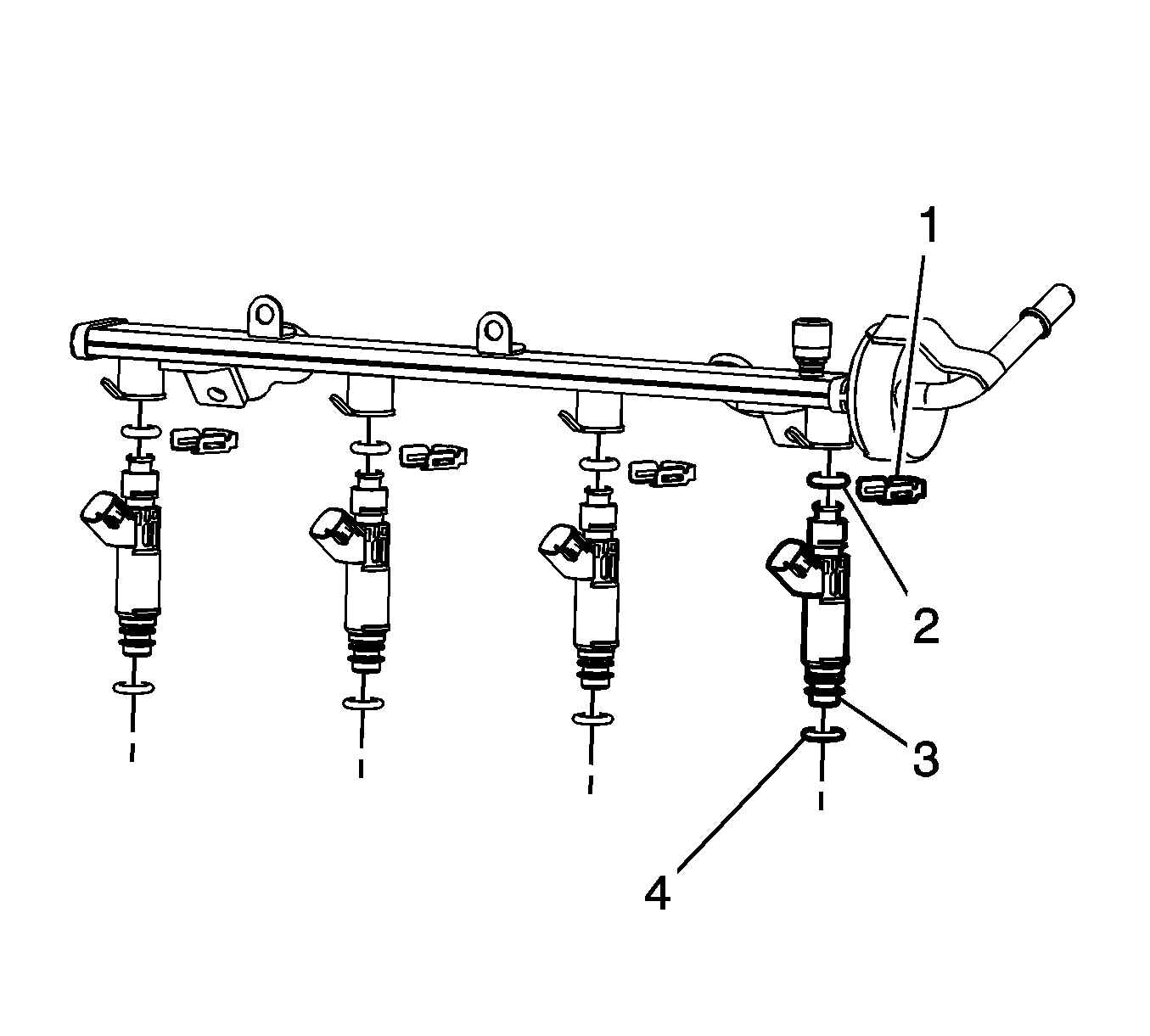

    Fig 1: Identifying Fuel Injector & Components
    GM1683403Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the NEW fuel injector O-rings with clean engine oil.
  2. Install the NEW fuel injector upper O-ring (2).
  3. Install the NEW fuel injector lower O-ring (4).
  4. Install the fuel injector (3) to the fuel injection fuel rail assembly.
  5. Install the fuel injector retainer (1).
  6. Install the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement .
