Installation Procedure

CAUTION: Replacement components must be the correct part number for the application. Components requiring the use of the thread locking compound, lubricants, corrosion inhibitors, or sealants are identified in the service procedure. Some replacement components may come with these coatings already applied. Do not use these coatings on components unless specified. These coatings can affect the final torque, which may affect the operation of the component. Use the correct torque specification when installing components in order to avoid damage.

CAUTION: Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.

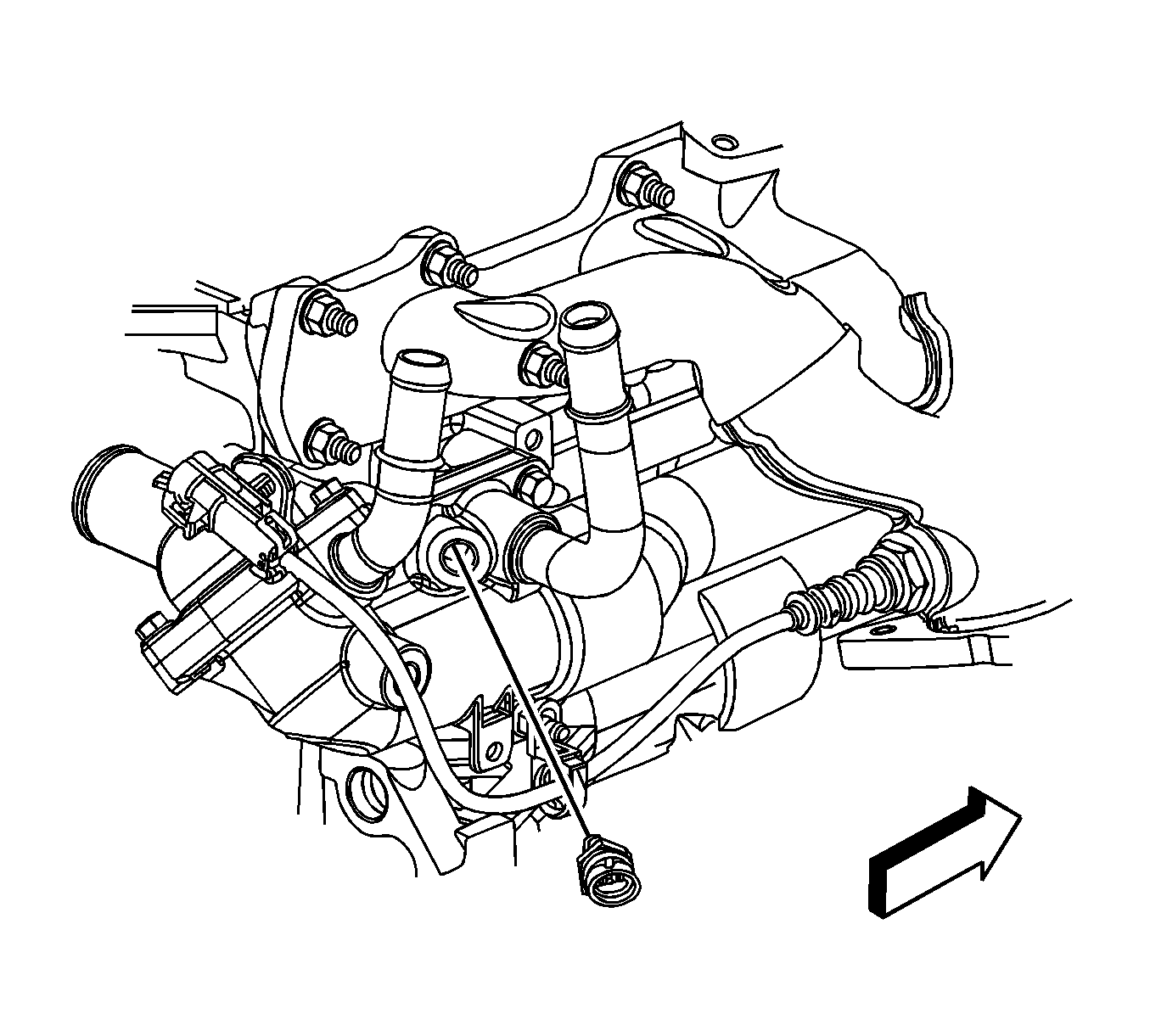

Fig 1: Locating ECT Sensor

Courtesy of GENERAL MOTORS CORP.

If reinstalling the original ECT sensor, or if installing a NEW ECT sensor without a sealer, coat the threads with sealant. Refer to Adhesives, Fluids, Lubricants, and Sealers .

CAUTION: Refer to Fastener Caution .

Install the ECT sensor.
Tighten: Tighten the sensor to 20 N.m (15 lb ft).

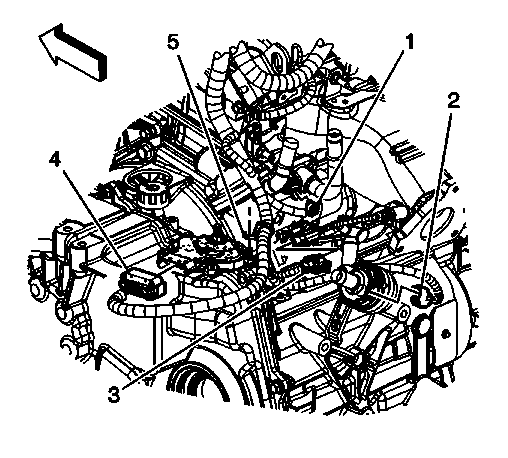

Fig 2: Identifying Engine Wiring Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector (1) to the ECT sensor.
Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
