Removal Procedure

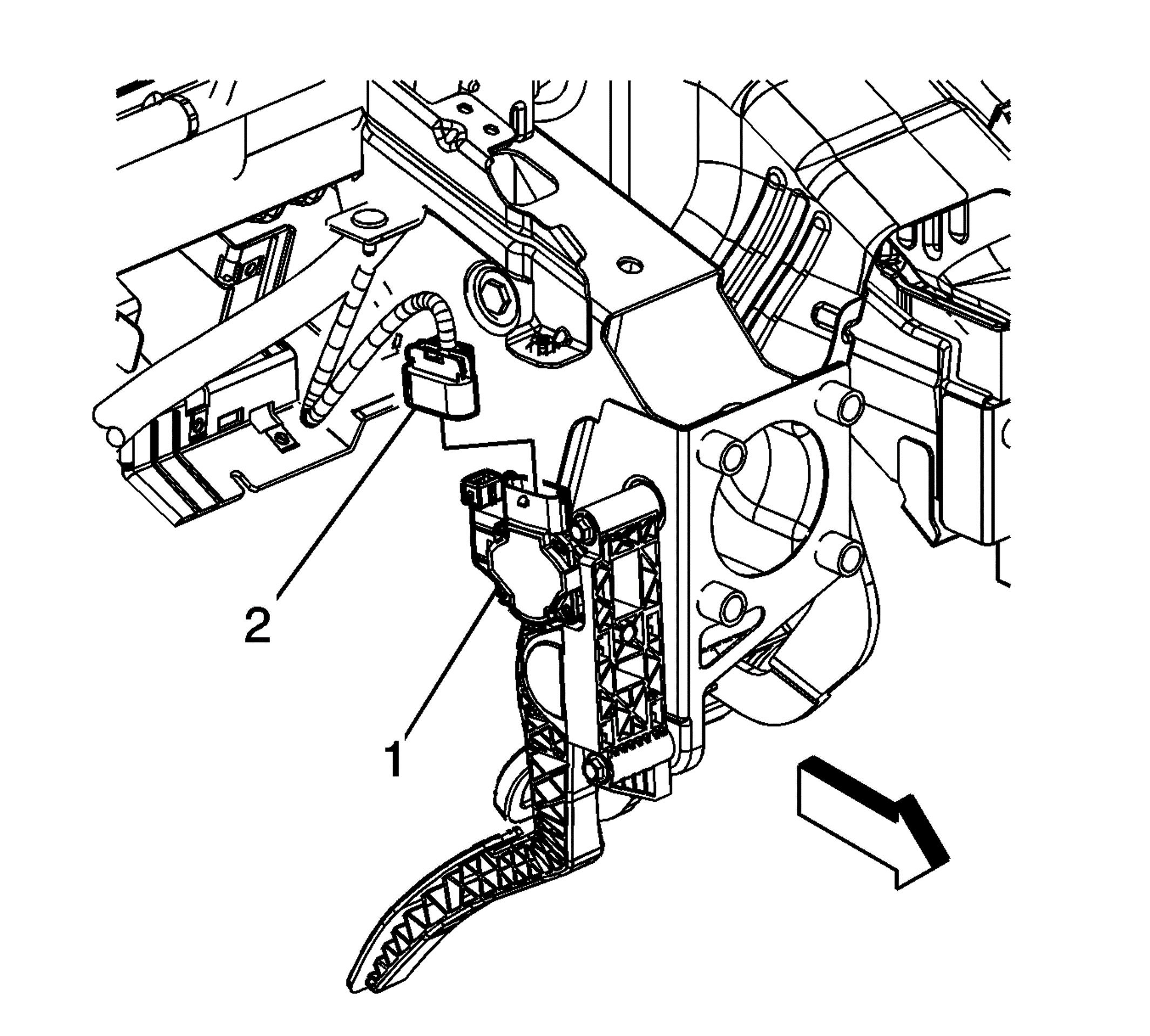

    Fig 1: Accelerator Pedal Position Sensor
    GM1883846Courtesy of GENERAL MOTORS CORP.
  1. Remove the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement .
  2. Disconnect the instrument panel wiring harness electrical connector (2) from the accelerator pedal position (APP) sensor (1).

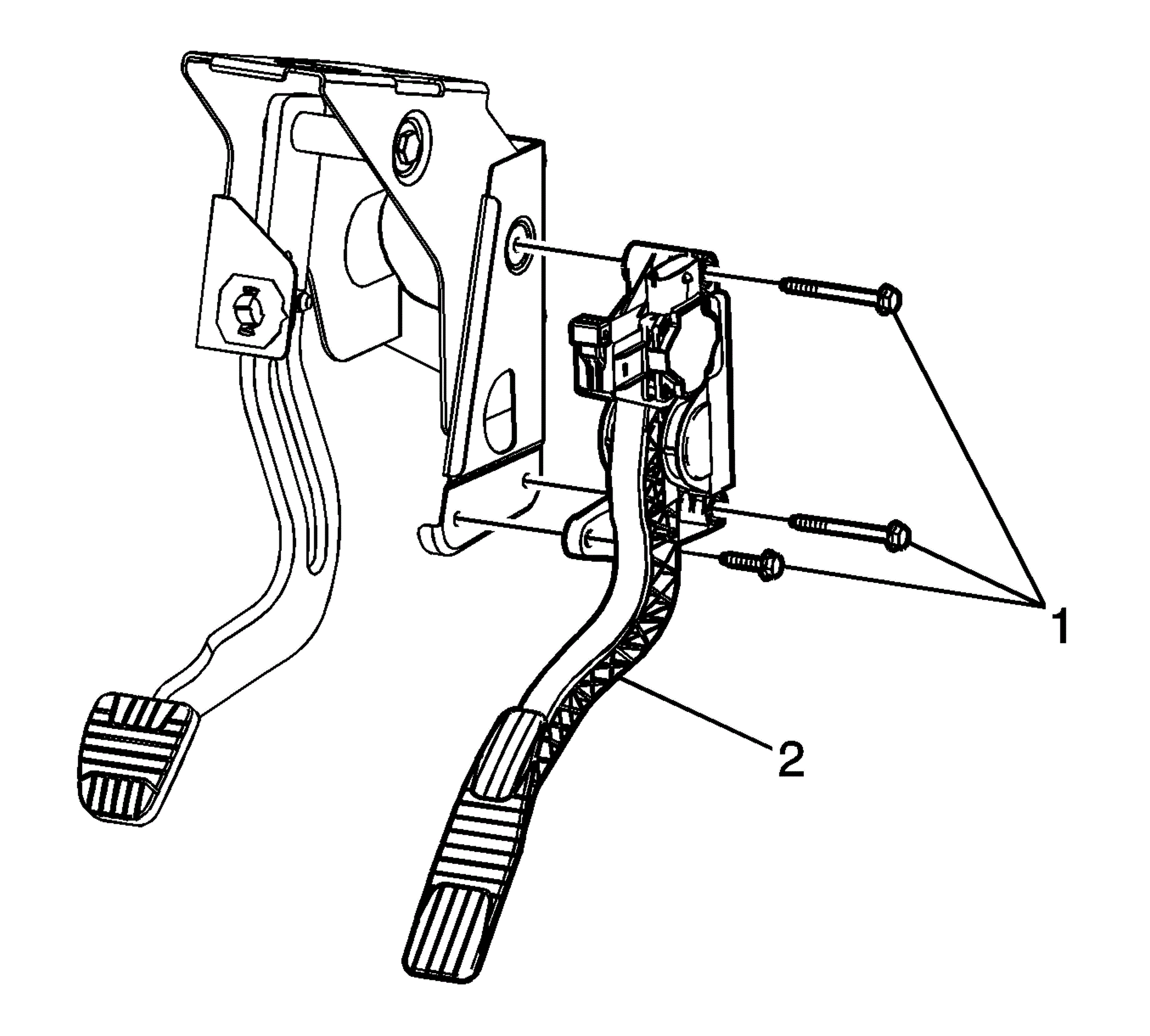

    3. Fig 2: APP Sensor And Bolts
    GM1883847Courtesy of GENERAL MOTORS CORP.
  3. Remove the APP sensor bolts (1).
  4. Remove the APP sensor (2).
