Rear Toe Adjustment

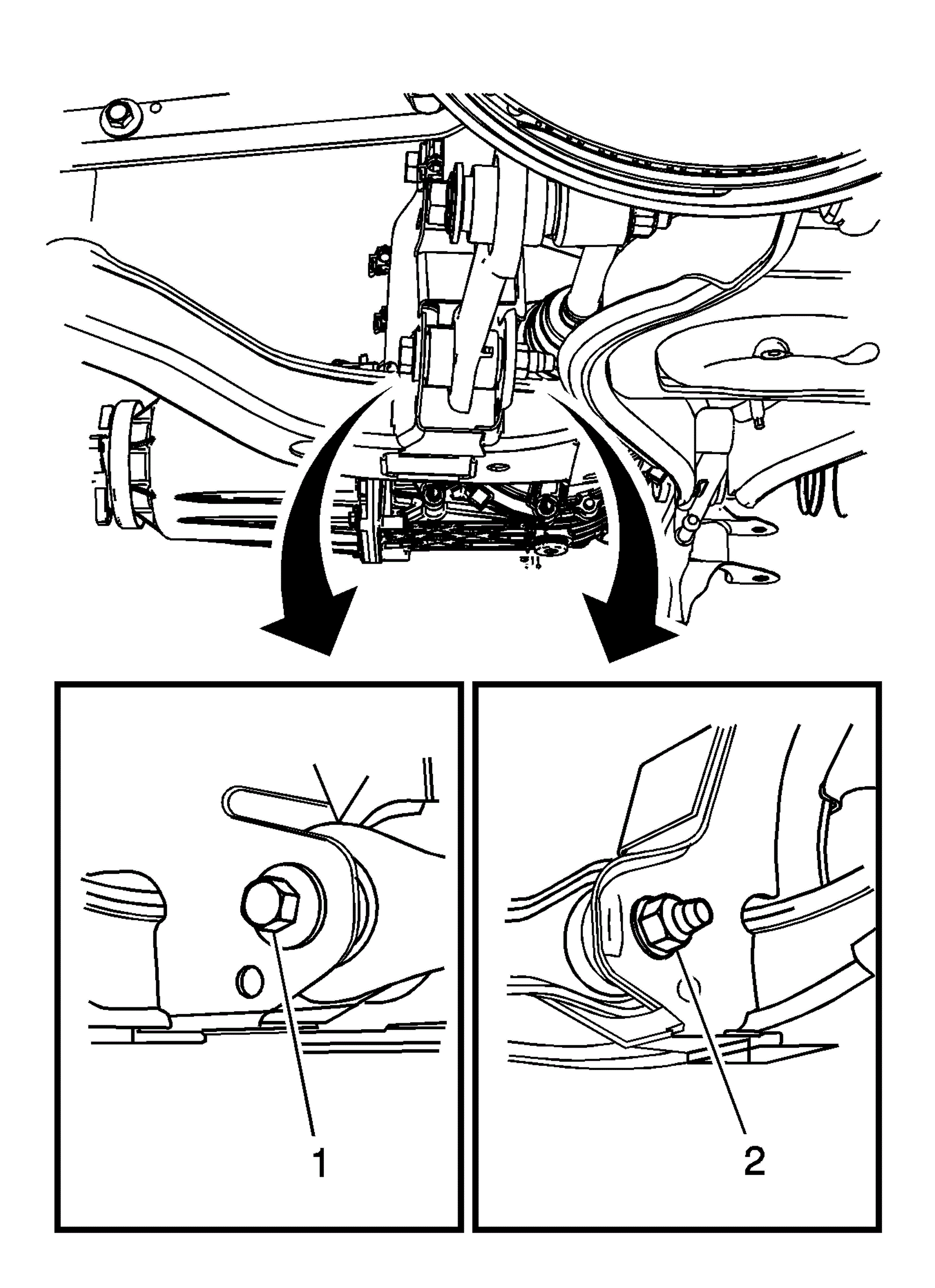

    Fig 1: Adjustment Link Nut
    GM1923252Courtesy of GENERAL MOTORS CORP.
  1. Loosen the adjustment link nut (2).
    2. NOTE: If experiencing problems in adjusting the rear toe, replace the existing nut with the service cam nut to eliminate the adjusting problem.
  2. Rotate the adjustment link bolt (1) to adjust the toe setting.
  3. Snug the adjustment link nut (2), do not tighten at this time.
  4. Reinspect the rear toe specifications and adjust as necessary.
  5. Hold the adjustment link bolt (1).
    6. CAUTION: Refer to Fastener Caution .
  6. Tighten the adjustment link nut (2) to 110 N.m (81 lb ft).
  7. Repeat the procedure for the other rear wheel.
