Position Lamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
Position Lamp Bulb Replacement

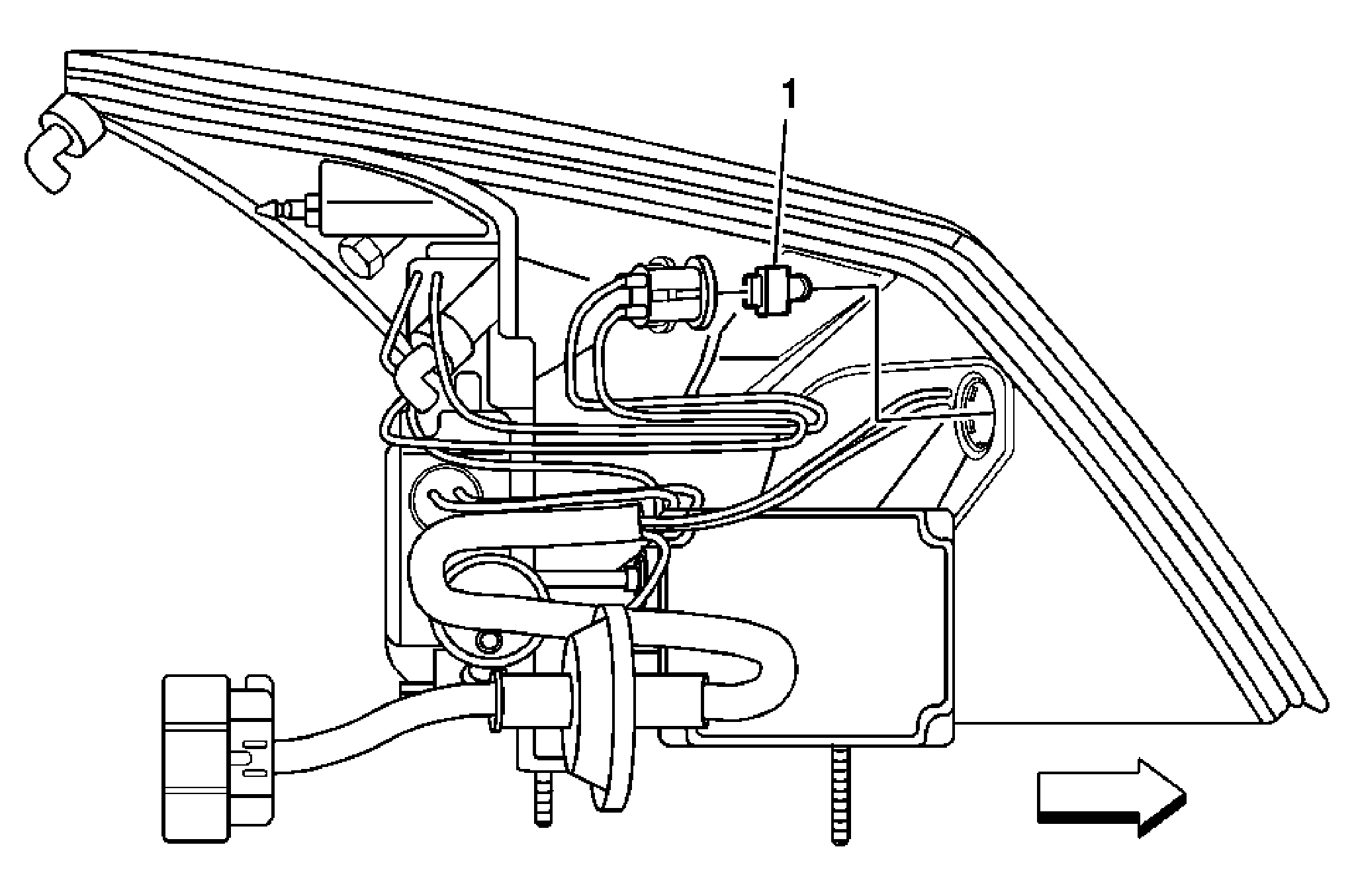

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LF or RF headlamp Assembly. Refer to Headlamp Replacement . |
|
| 1 | Front Side Position Lamp Bulb Tip: Disengage the bulb socket from the headlamp and remove the position bulb. |
