Antilock Brake System Schematics (without HP7)

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

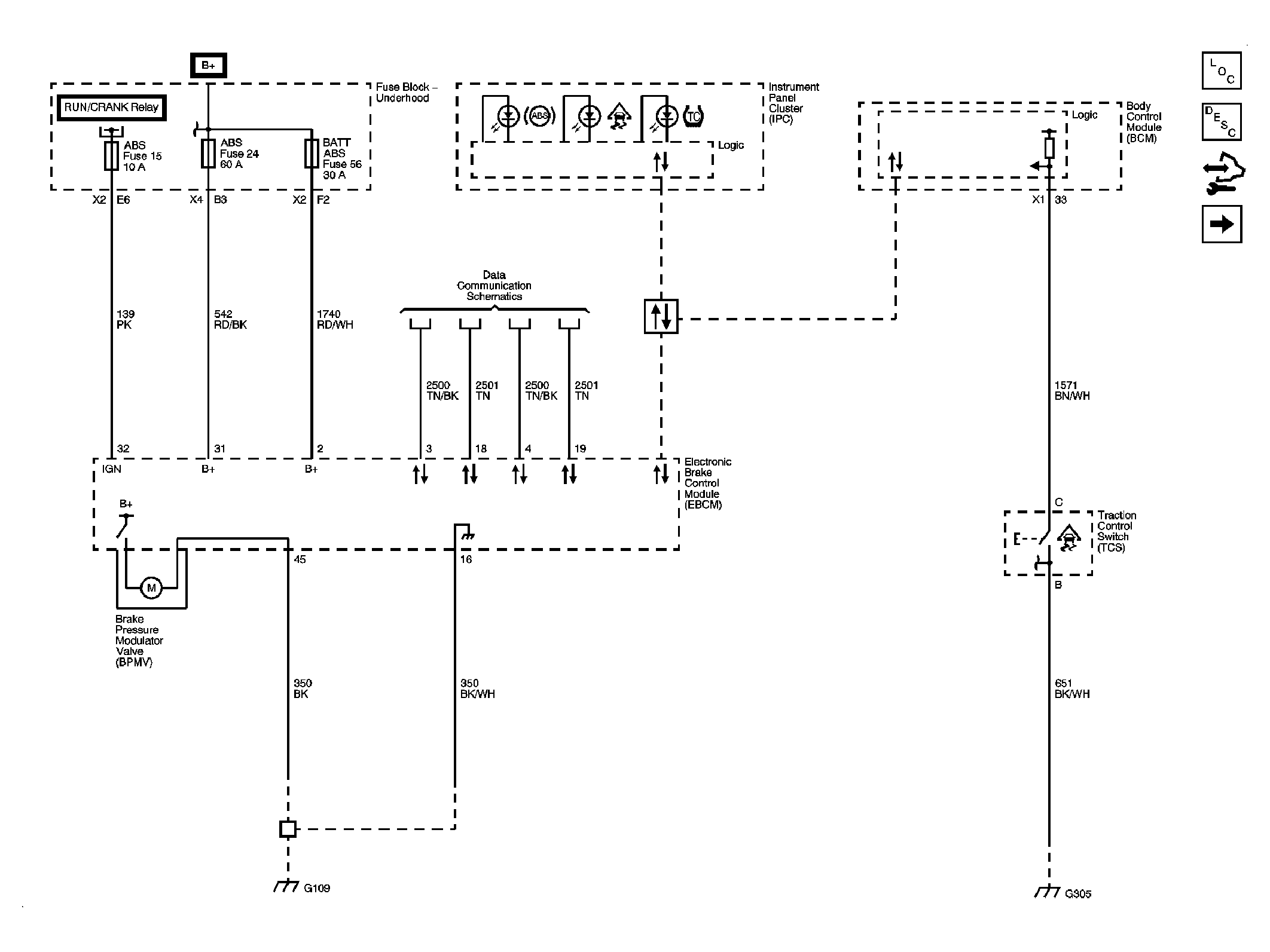

Fig 1: Power, Ground, Traction Control, and Indicators

Courtesy of GENERAL MOTORS CORP.

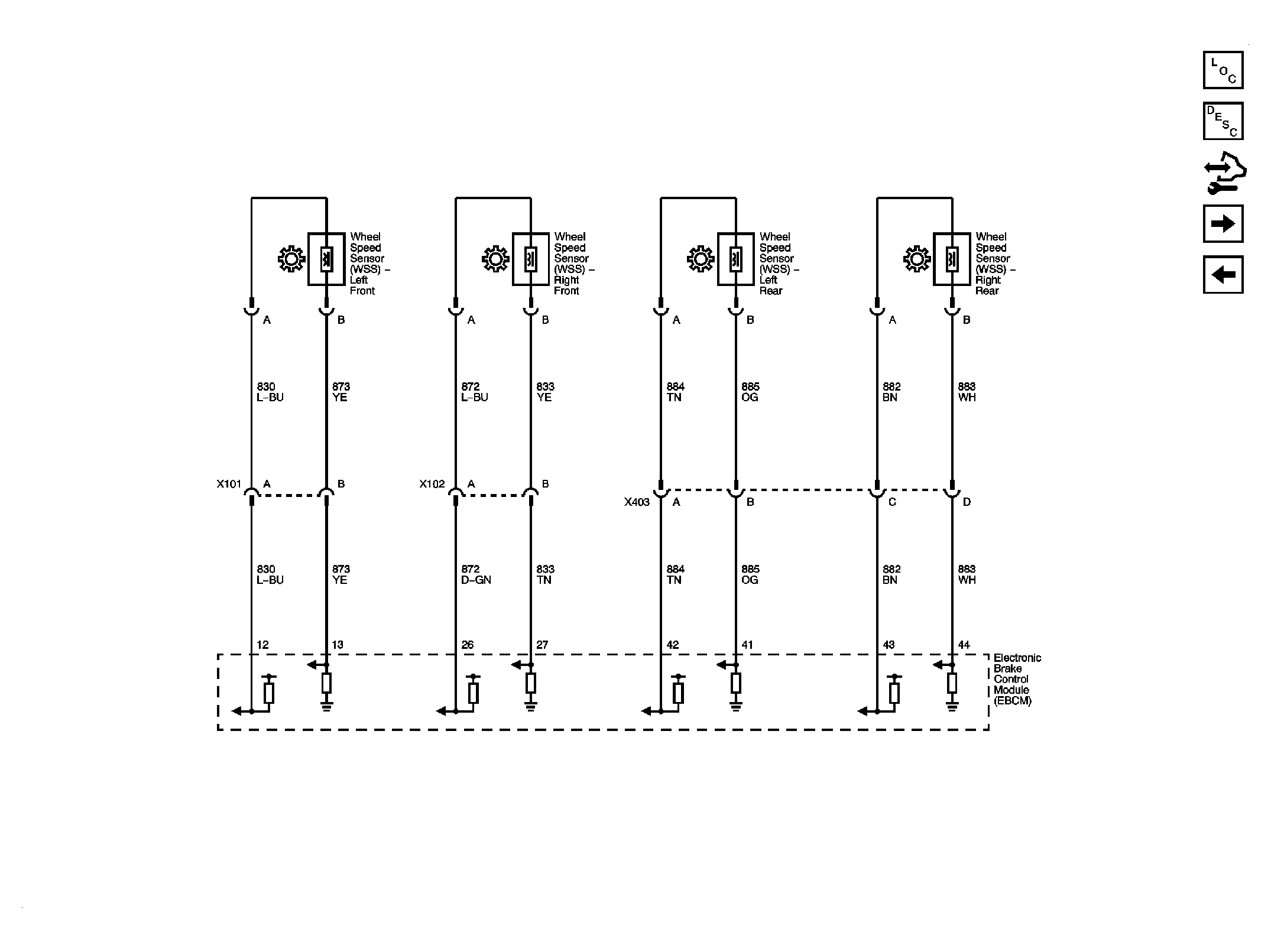

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 3: Sensors

Courtesy of GENERAL MOTORS CORP.
