Rearview Camera Replacement

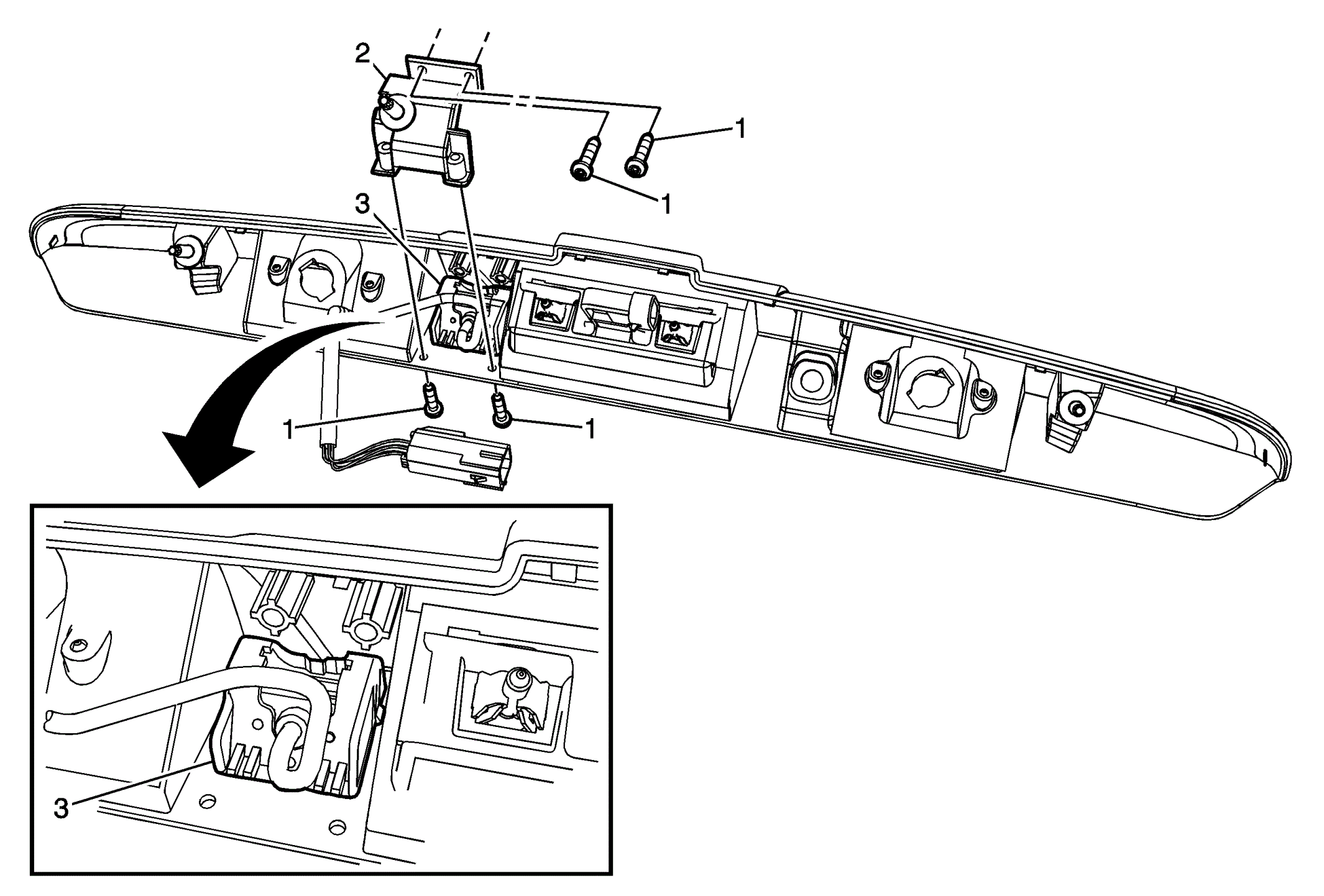

Fig 1: Rearview Camera Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate center applique. Refer to Liftgate Center Applique Replacement .
1	Rearview Camera Cover Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Rearview Camera Cover
3	Rearview Camera Procedure Disconnect the electrical connector. Depress the clip fingers and push outward to remove the rearview camera from the applique.
