Front Seat Belt Retractor Replacement

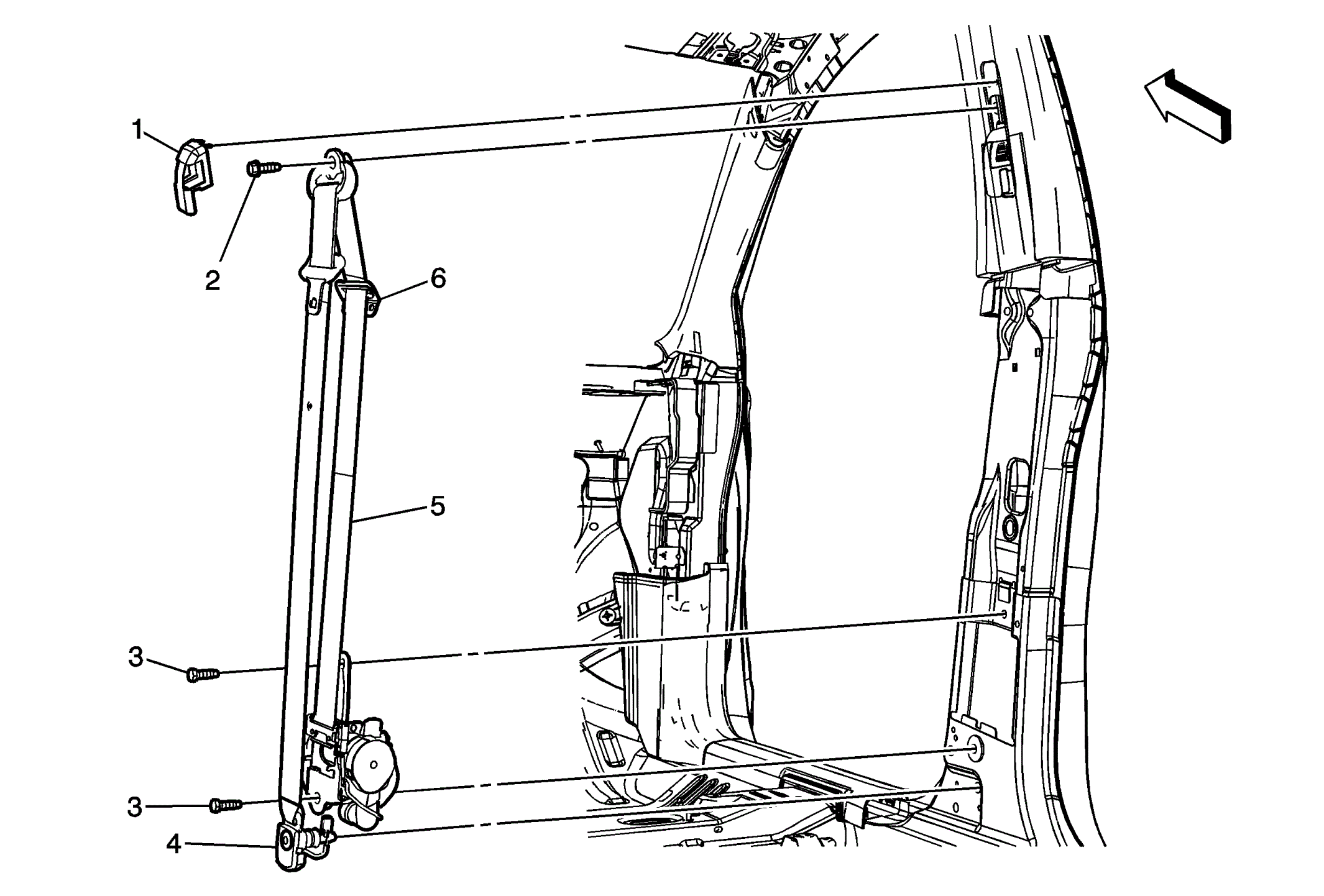

Fig 1: Front Seat Belt Retractor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws. WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .
1	Front Seat Shoulder Belt Guide Adjuster Cover
2	Front Seat Shoulder Belt Guide Bolt CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
3	Front Seat Shoulder Belt Retractor Bolt (Qty: 2) Tighten: 45 N.m (33 lb ft)
4	Front Seat Shoulder Belt Anchor Bolt Tighten: 10 N.m (88 lb in)
5	Front Seat Shoulder Belt Retractor Procedure: Disconnect the electrical connector.
6	Front Seat Shoulder Belt Guide
