Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

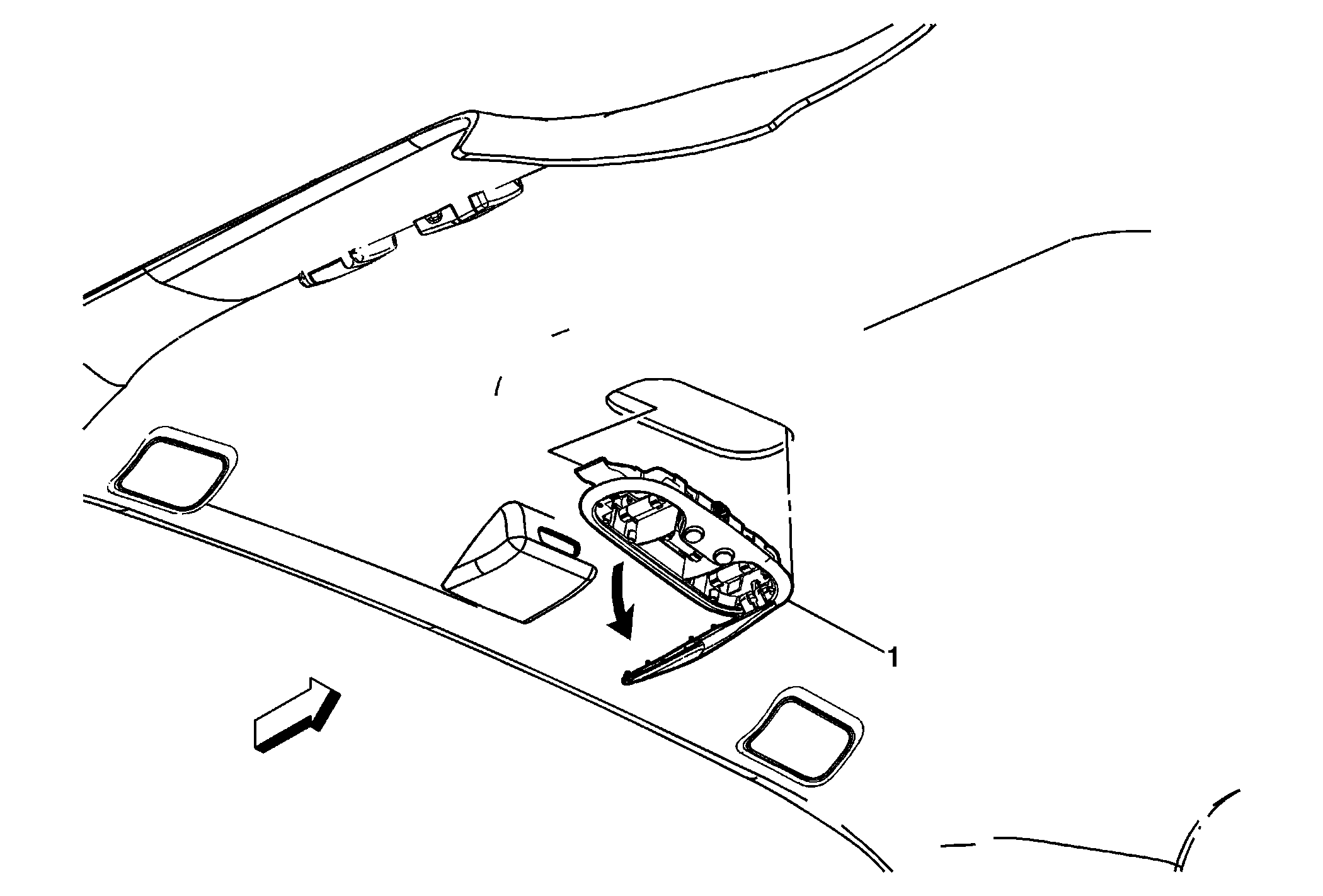

    Fig 1: View Of Cargo Lamp Assembly
    GM1888251Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector
  2. Locate the cargo lamp assembly onto the headliner.
  3. Push the cargo lamp assembly in to lock the retainers.
