Body Control System Schematics

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

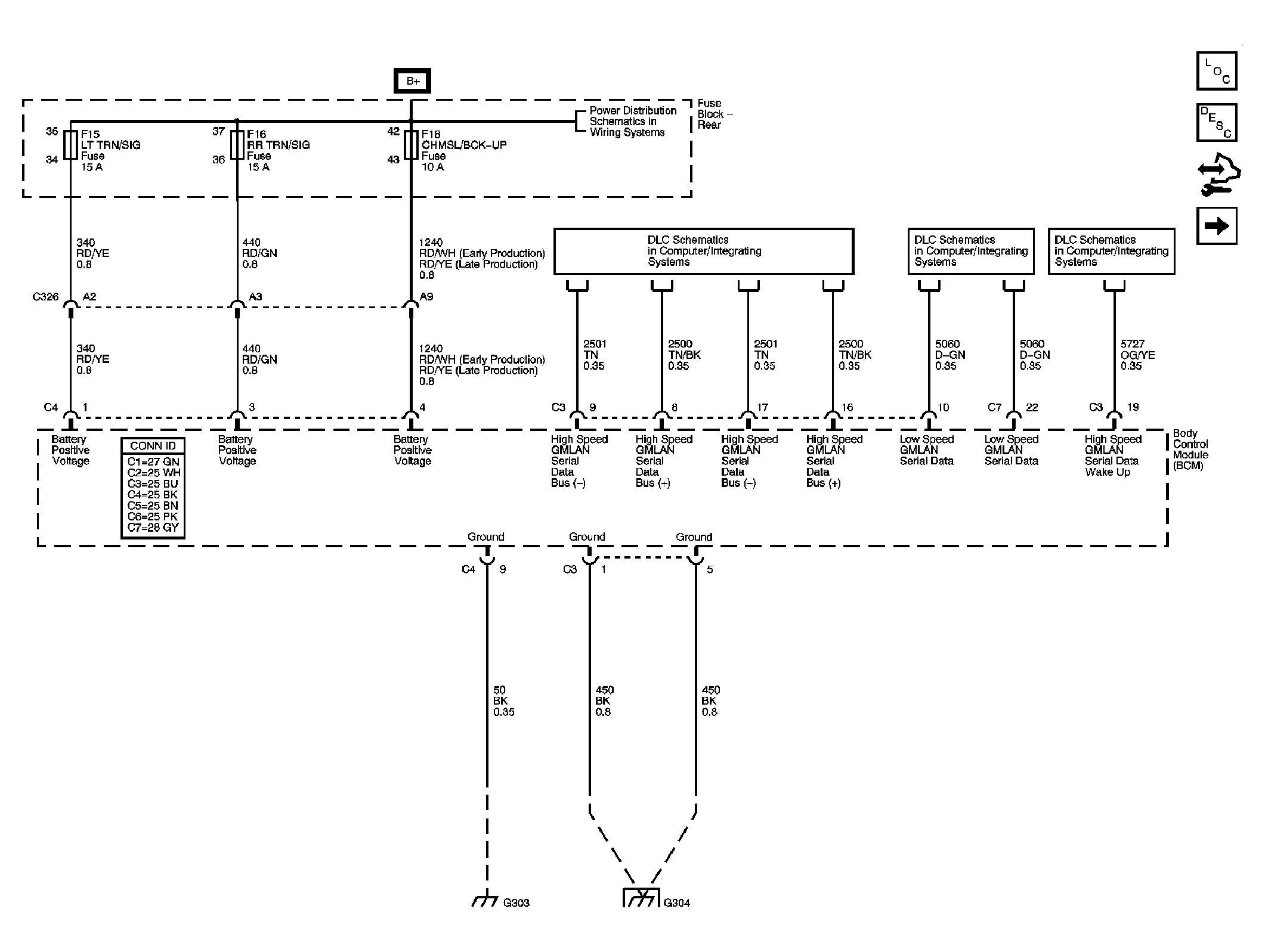

Fig 1: BCM Power, Ground & DLC Schematic

Courtesy of GENERAL MOTORS CORP.

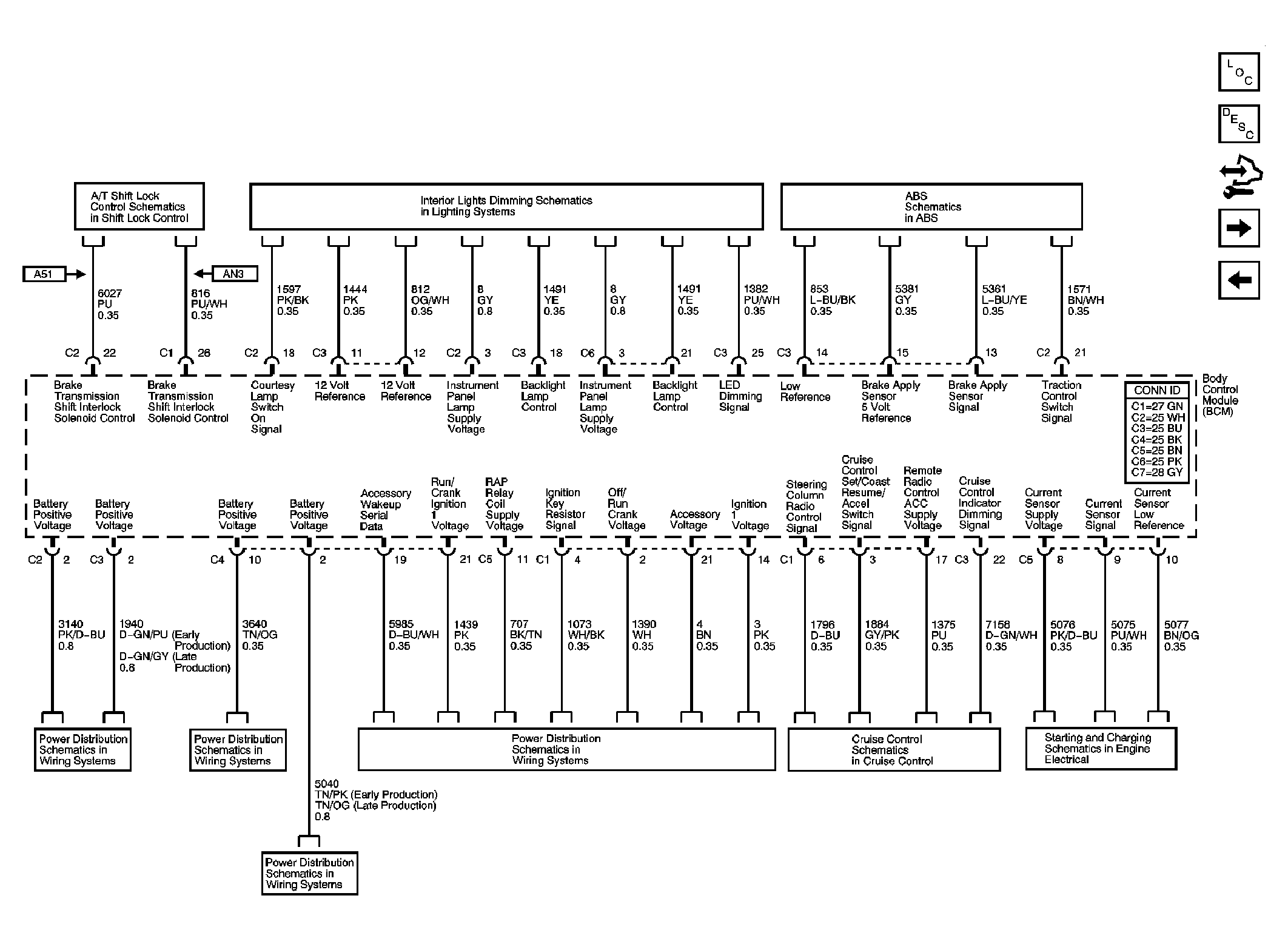

Fig 2: BCM Inputs & Outputs Schematic (1 of 4)

Courtesy of GENERAL MOTORS CORP.

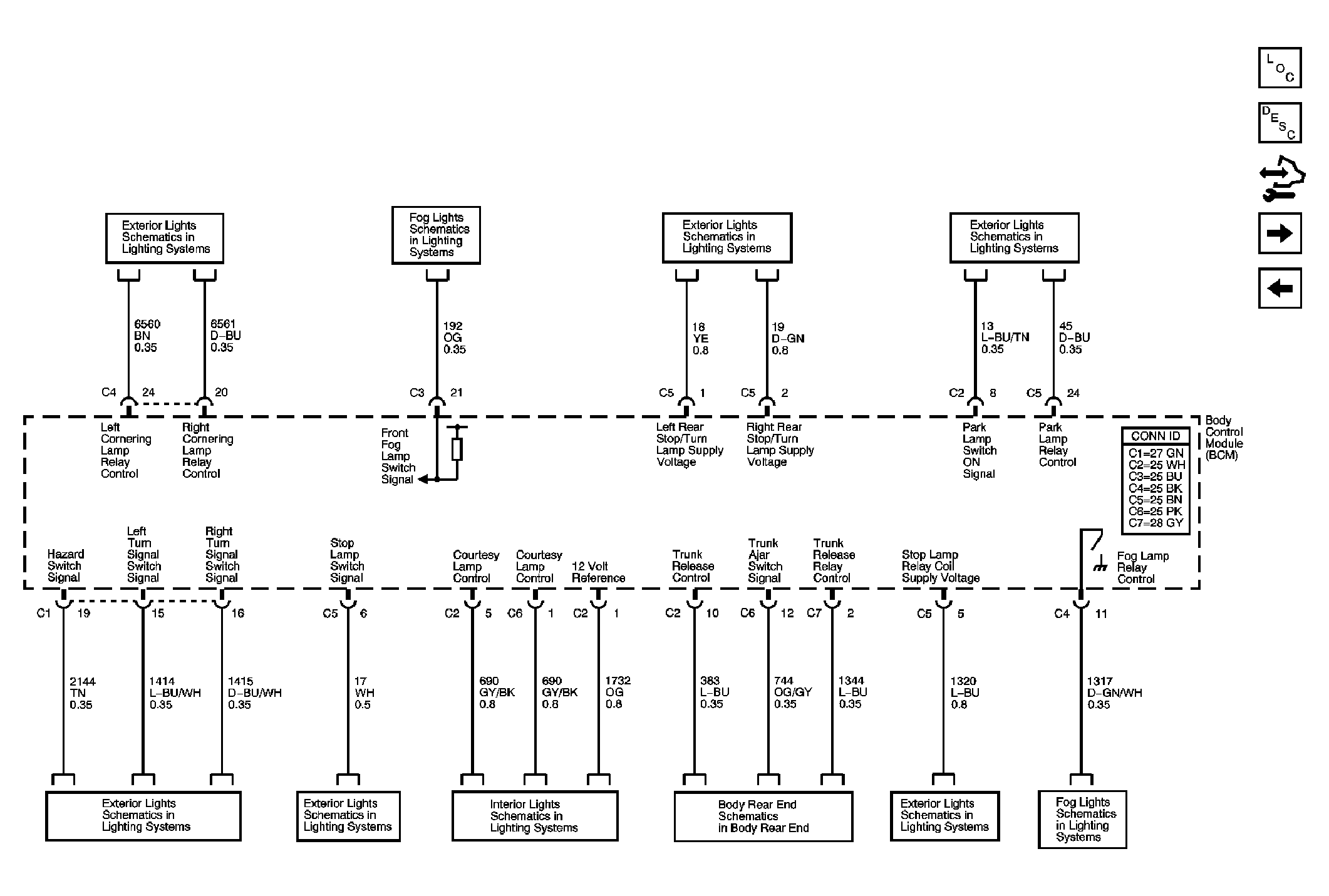

Fig 3: BCM Inputs & Outputs Schematic (2 of 4)

Courtesy of GENERAL MOTORS CORP.

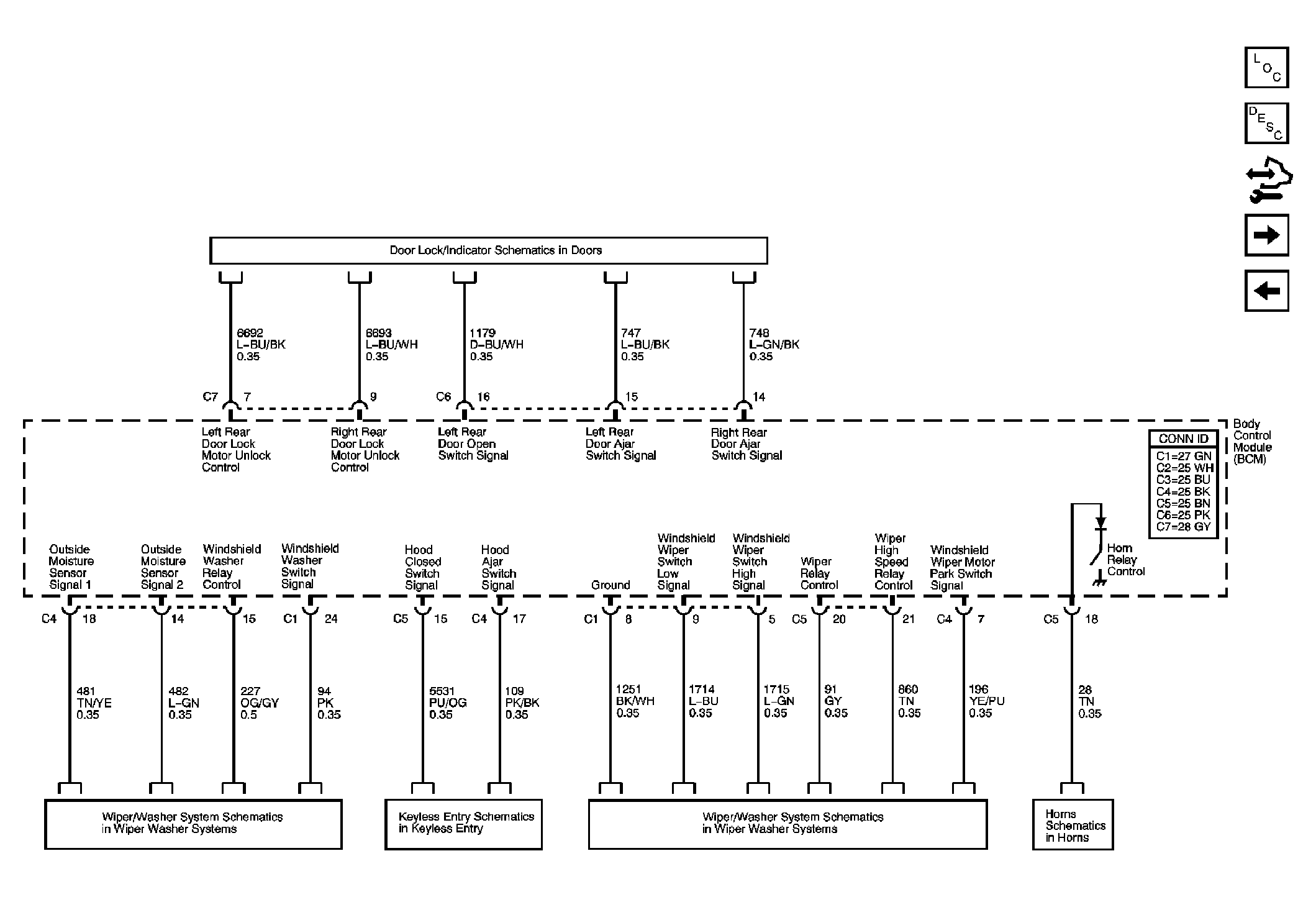

Fig 4: BCM Inputs & Outputs Schematic (3 of 4)

Courtesy of GENERAL MOTORS CORP.

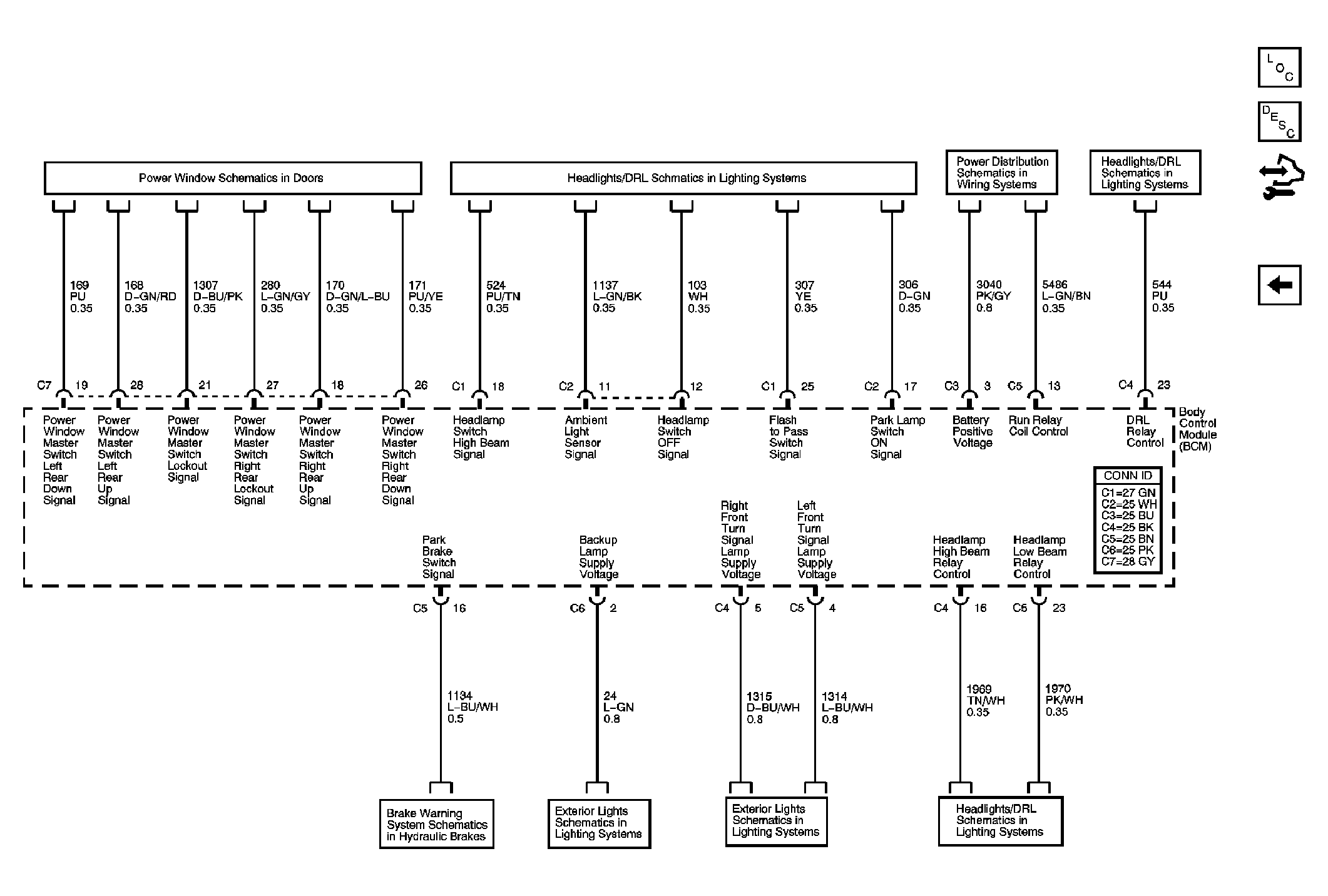

Fig 5: BCM Inputs & Outputs Schematic (4 of 4)

Courtesy of GENERAL MOTORS CORP.
