Front Upper Speaker Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

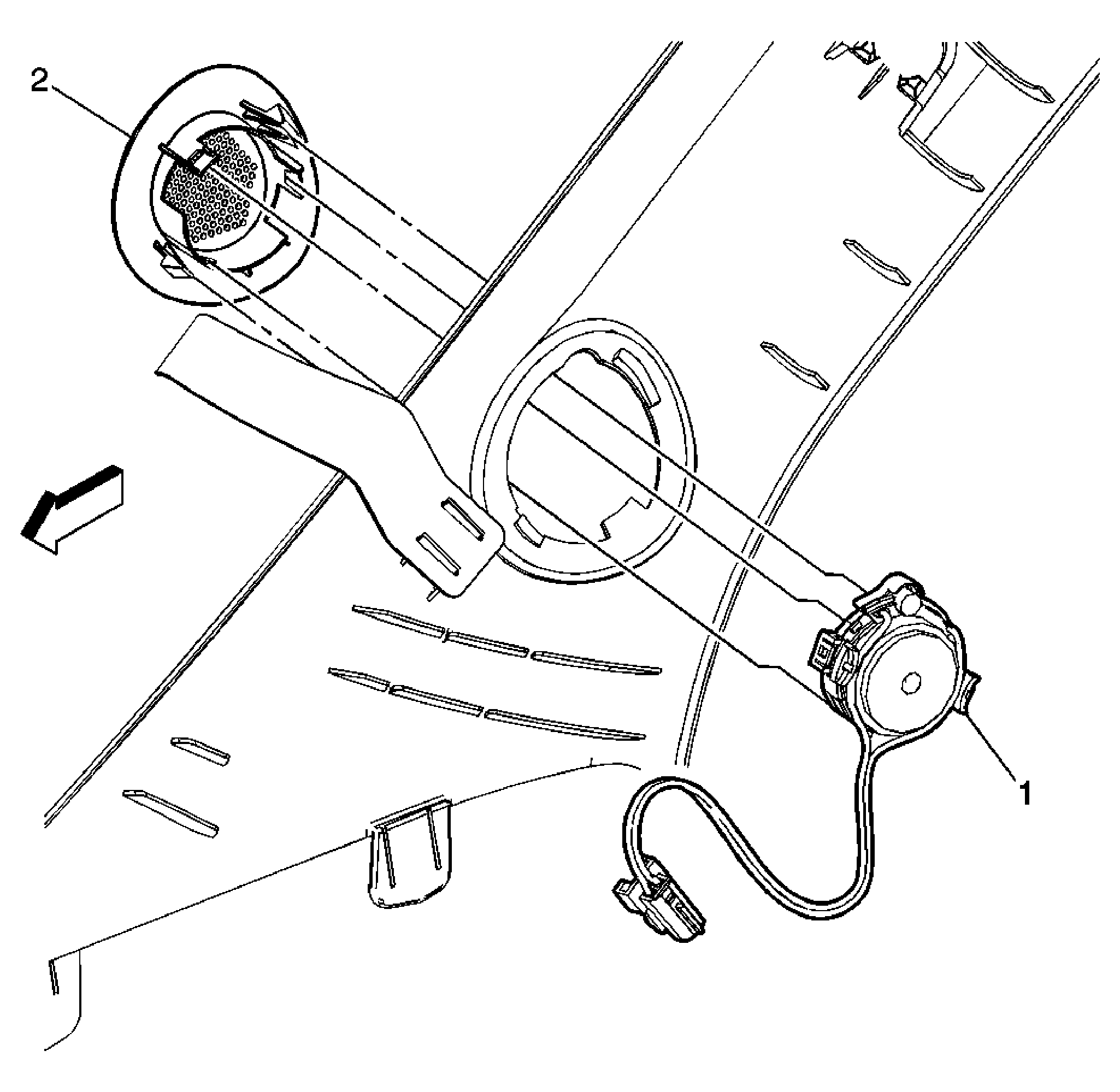

Fig 1: View Of Front Upper Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
1	Radio Windshield Side Garnish Molding Speaker Assembly Procedure: Press in the tabs on the speaker to release from the windshield side garnish molding speaker grille.
2	Radio Windshield Side Garnish Molding Speaker Grille Procedure: Press in on the tabs of the speaker grille to release from the windshield pillar.
