Body Control System Schematics

WARNING: This page is about a different car, the 2008 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

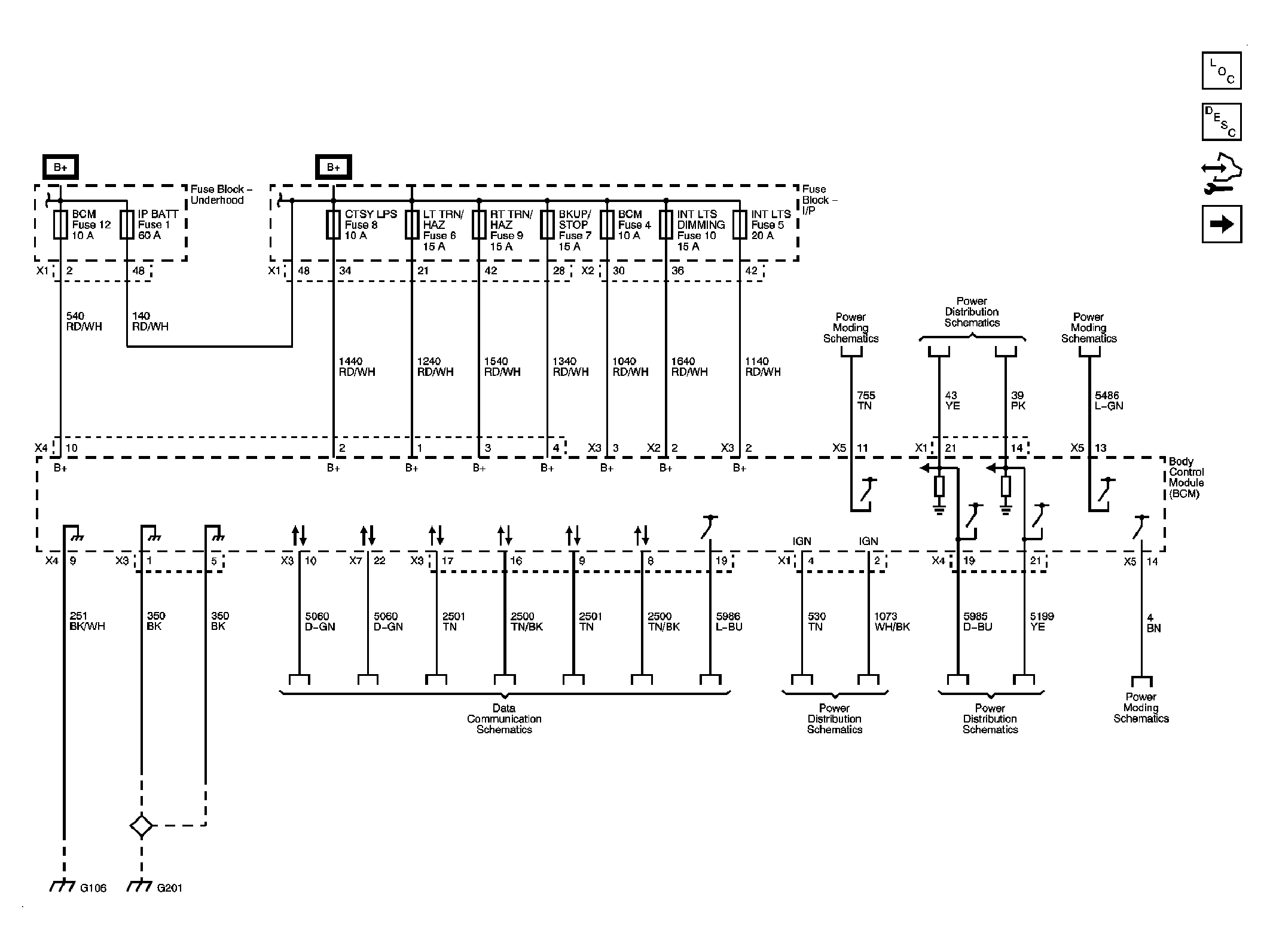

Fig 1: Power, Grounds and Data Communications - Schematic

Courtesy of GENERAL MOTORS CORP.

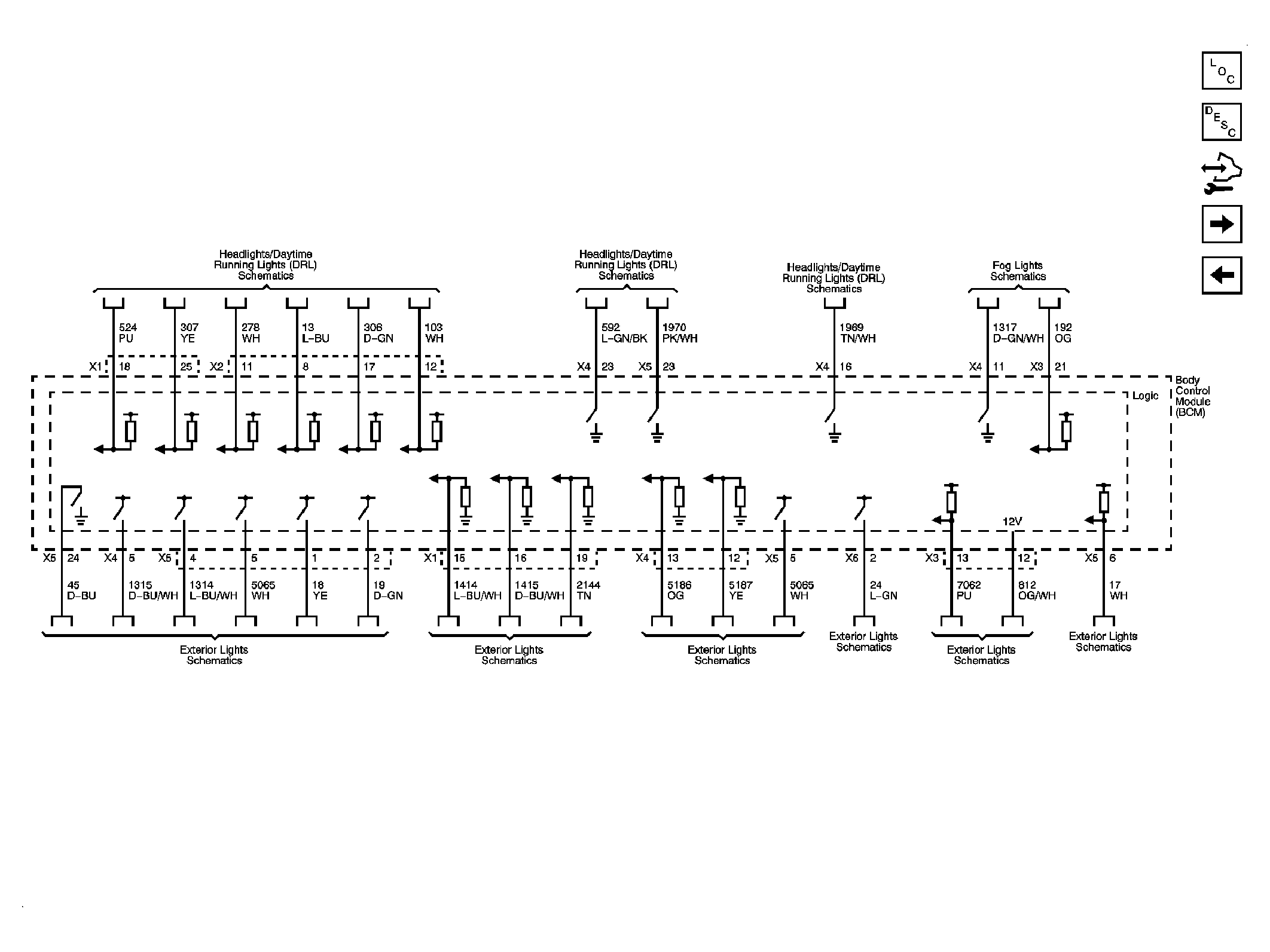

Fig 2: References 1 of 3 - Schematic

Courtesy of GENERAL MOTORS CORP.

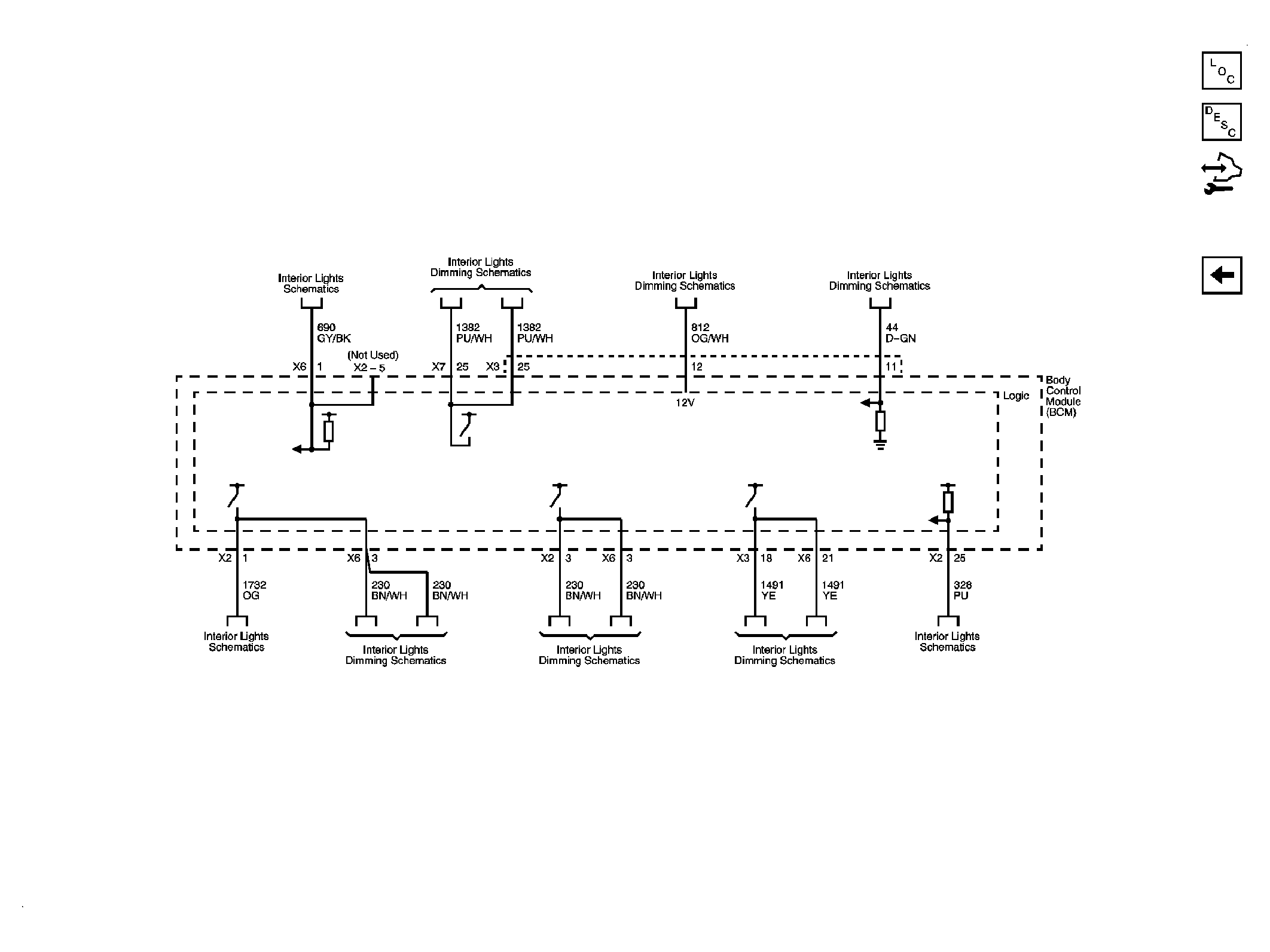

Fig 3: References 2 of 3 - Schematic

Courtesy of GENERAL MOTORS CORP.

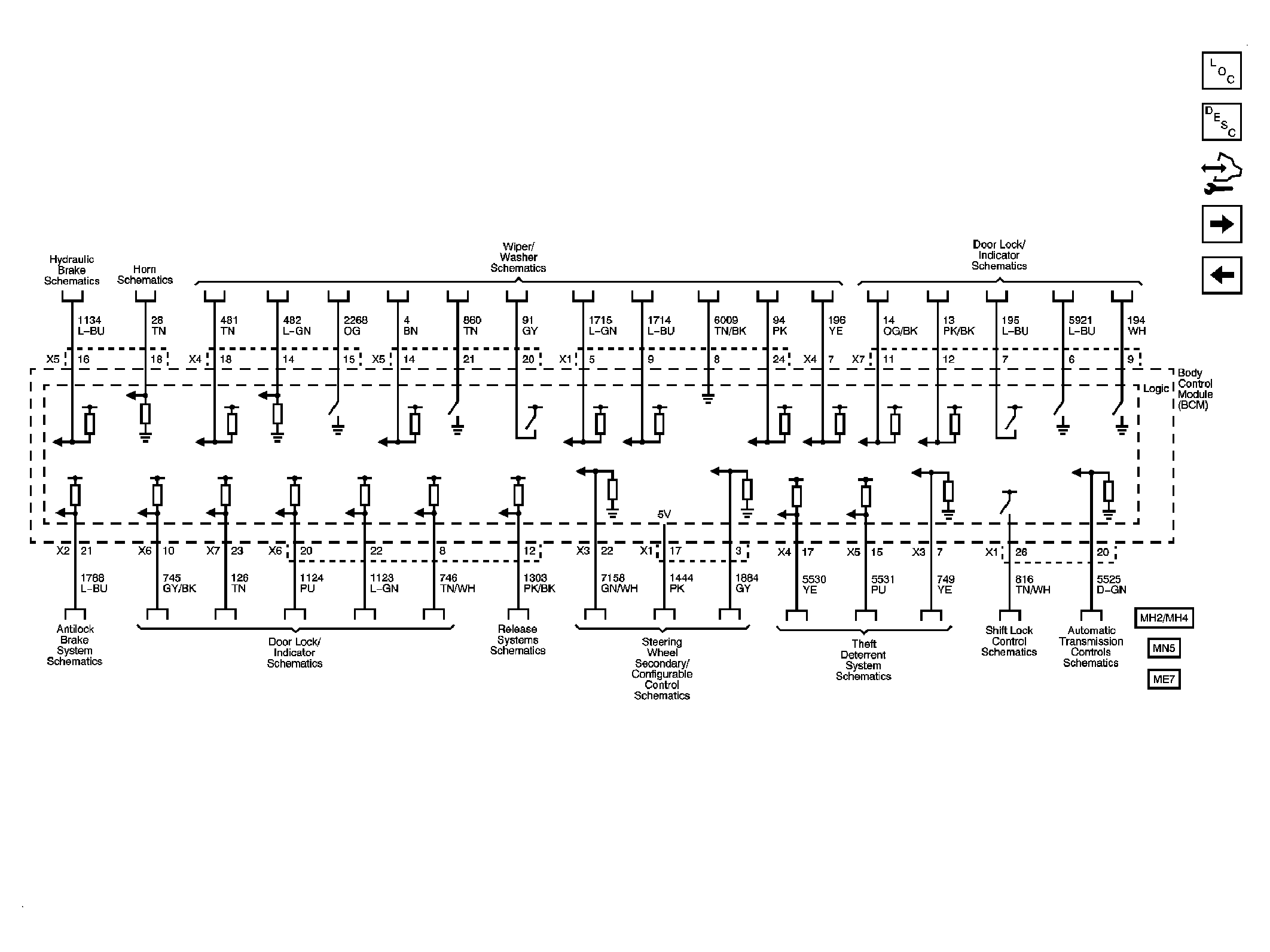

Fig 4: References 3 of 3 - Schematic

Courtesy of GENERAL MOTORS CORP.
