Battery Tray Support Bracket Replacement

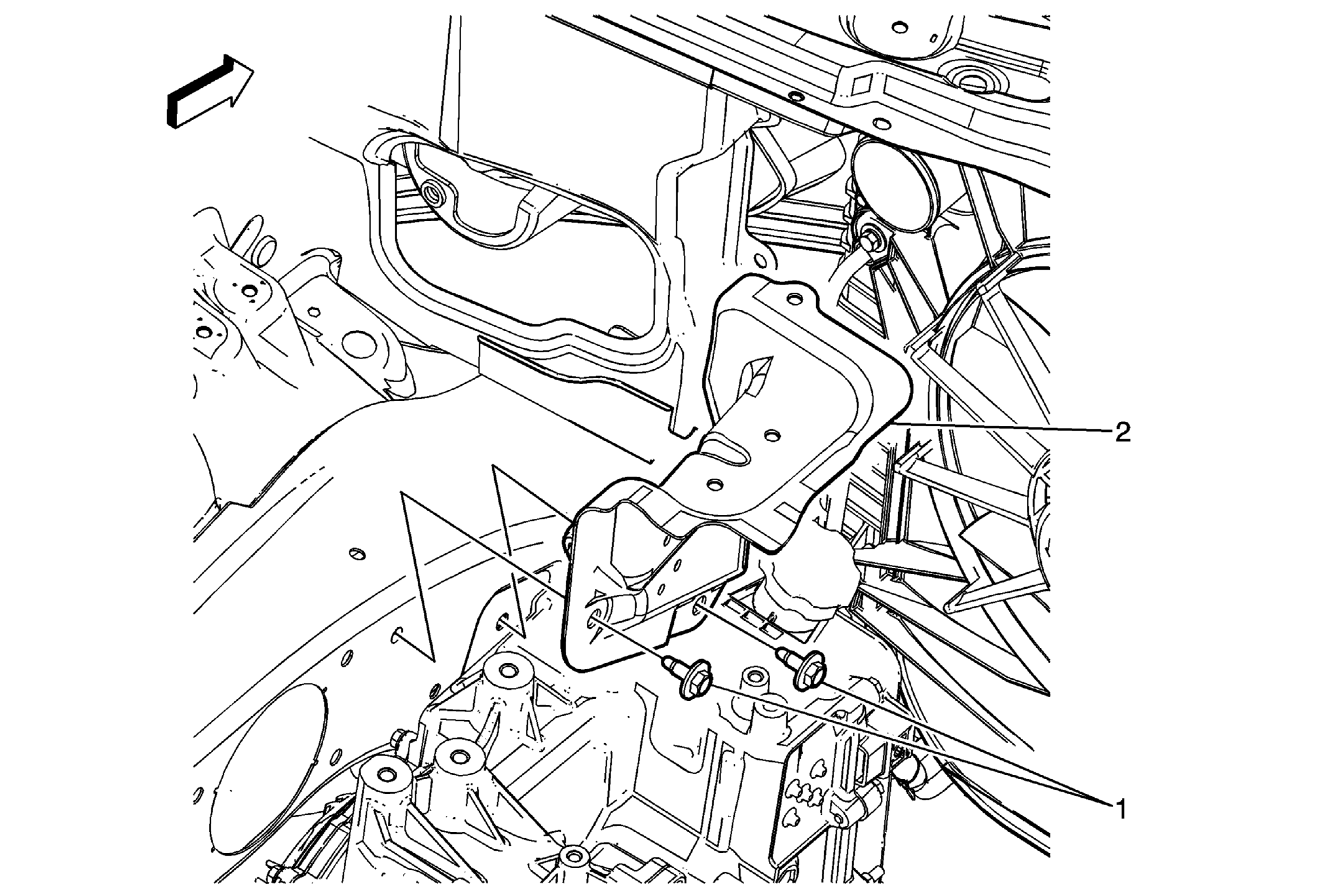

Fig 1: Battery Tray Support Bracket Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the battery. Refer to Battery Replacement . Remove the battery box. Refer to Battery Box Replacement .
1	Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Battery Tray Support Bracket

Callout

Component Name

Preliminary Procedure

Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (18 lb ft)

Battery Tray Support Bracket
