Battery Negative Cable Disconnection and Connection

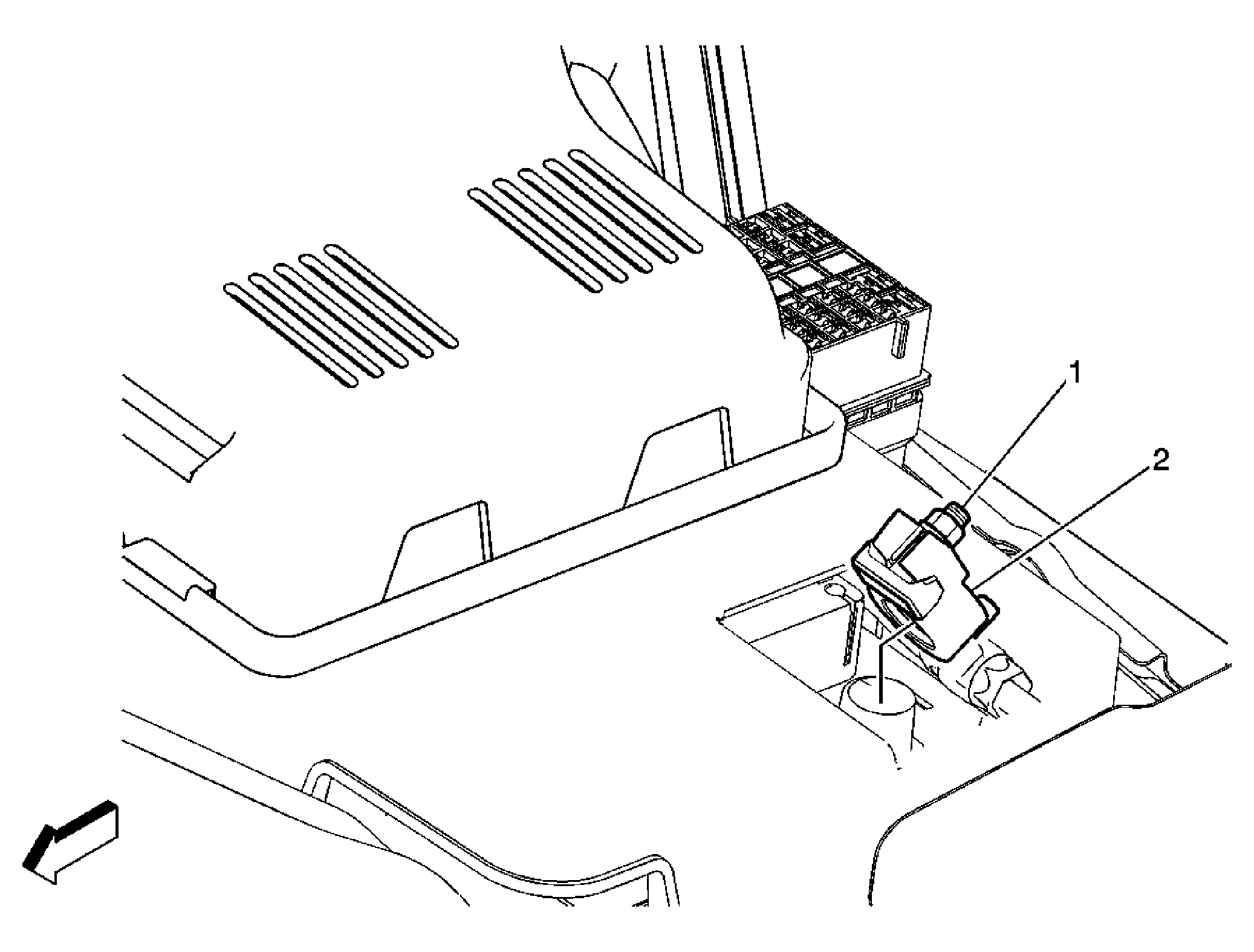

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn on the radio and record all of the radio station presets. Ensure all lamps and accessories are turned off. Ensure the ignition switch is in the OFF position, and remove the ignition key.
1	Negative Battery Cable Terminal Nut CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (45 lb in)
2	Negative Battery Cable Terminal

Callout

Component Name

Preliminary Procedures

Negative Battery Cable Terminal Nut

CAUTION: Refer to Fastener Caution .

Tighten: 5 N.m (45 lb in)

Negative Battery Cable Terminal
