Installation Procedure

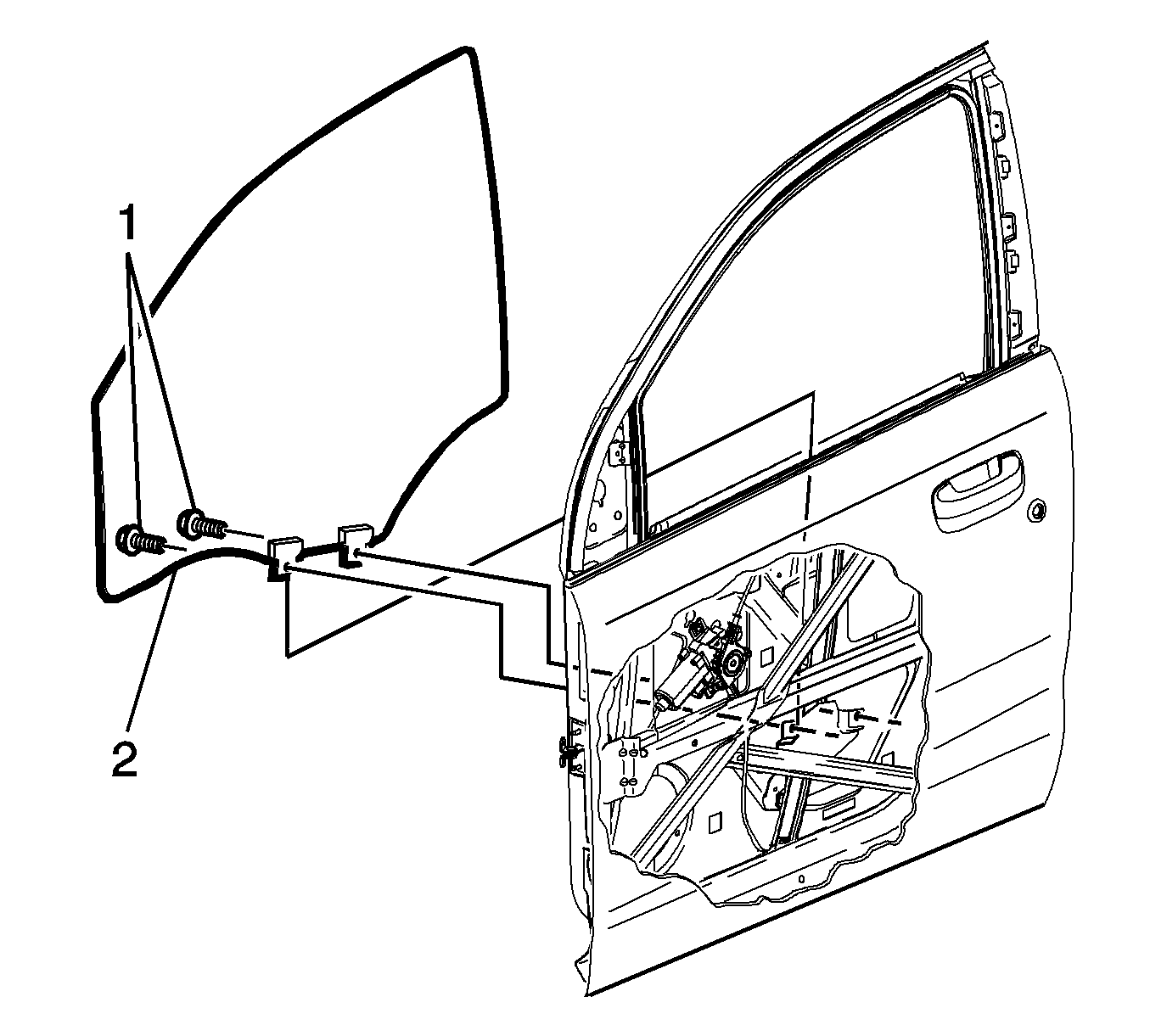

    Fig 1: View Of Front Door Window
    GM941821Courtesy of GENERAL MOTORS CORP.
  1. Install the window (2) by sliding the window into the door through the outside door belt opening.
  2. Install the window into the primary glass channels and rest the window on the regulator guide plate.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the window guide bolts (1) to the regulator. Tighten the bolts to 10 N.m (89 lb in).
  4. Install the front door water deflector.
  5. Install the front inner door trim panel. Refer to Front Side Door Trim Panel Replacement .
  6. Inspect the door window for proper operation before installing the door trim panel.
