Front Side Door Window Regulator Replacement

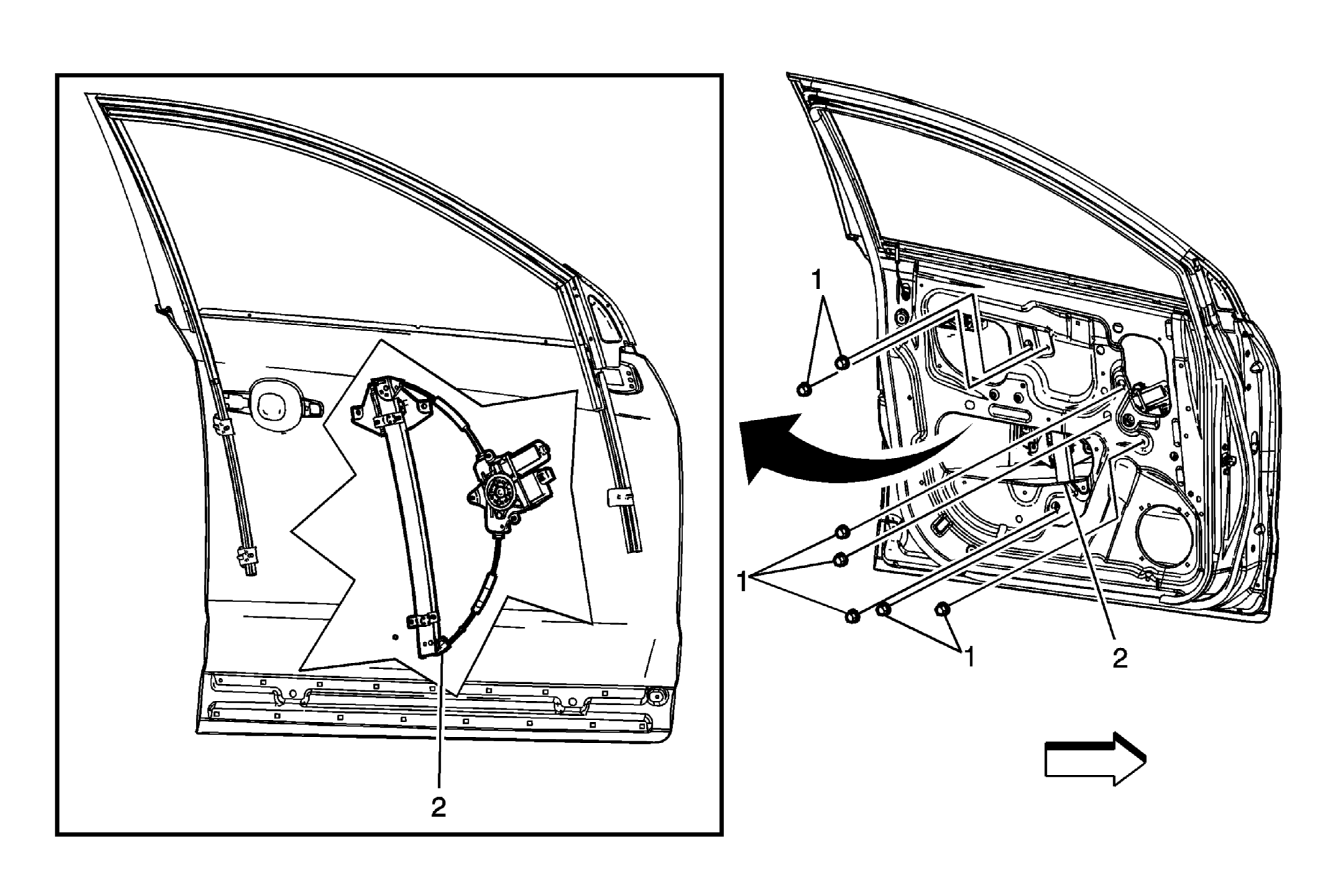

Fig 1: Front Side Door Window Regulator
GM1866204Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Front Side Door Window Regulator Nut (Qty: 7)
CAUTION: Refer to Fastener Caution .

Procedure:
Remove water deflector.

Tighten:  8 N.m (71 lb in)
2 Front Side Door Window Regulator

Procedure

  1. Disconnect the electrical connector from the window regulator motor.
  2. Remove the front side door window. Refer to Front Side Door Window Replacement .

Tip:  The window regulator motor is not serviced separately.
