Front Side Door Window Channel Retainer Replacement

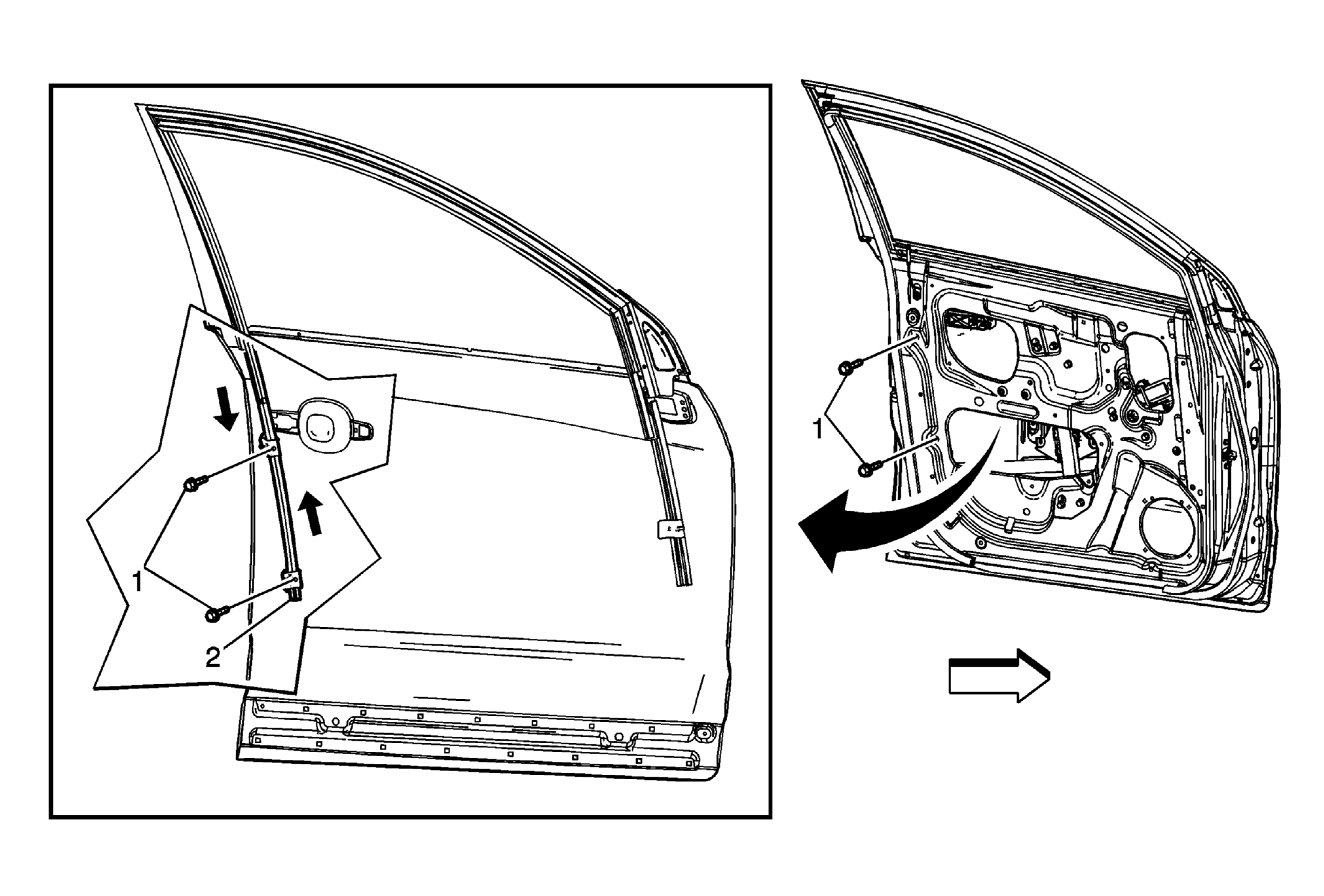

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the front side door window. Refer to Front Side Door Window Replacement . |
|
| 1 | Front Side Door Window Weatherstrip Channel Retainer Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Front Side Door Window Weatherstrip Channel Retainer Tip: Pull the weatherstrip out of the channel, remove the channel retainer from the door. |
