Rear Compartment Lid Latch Release Cable Replacement

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

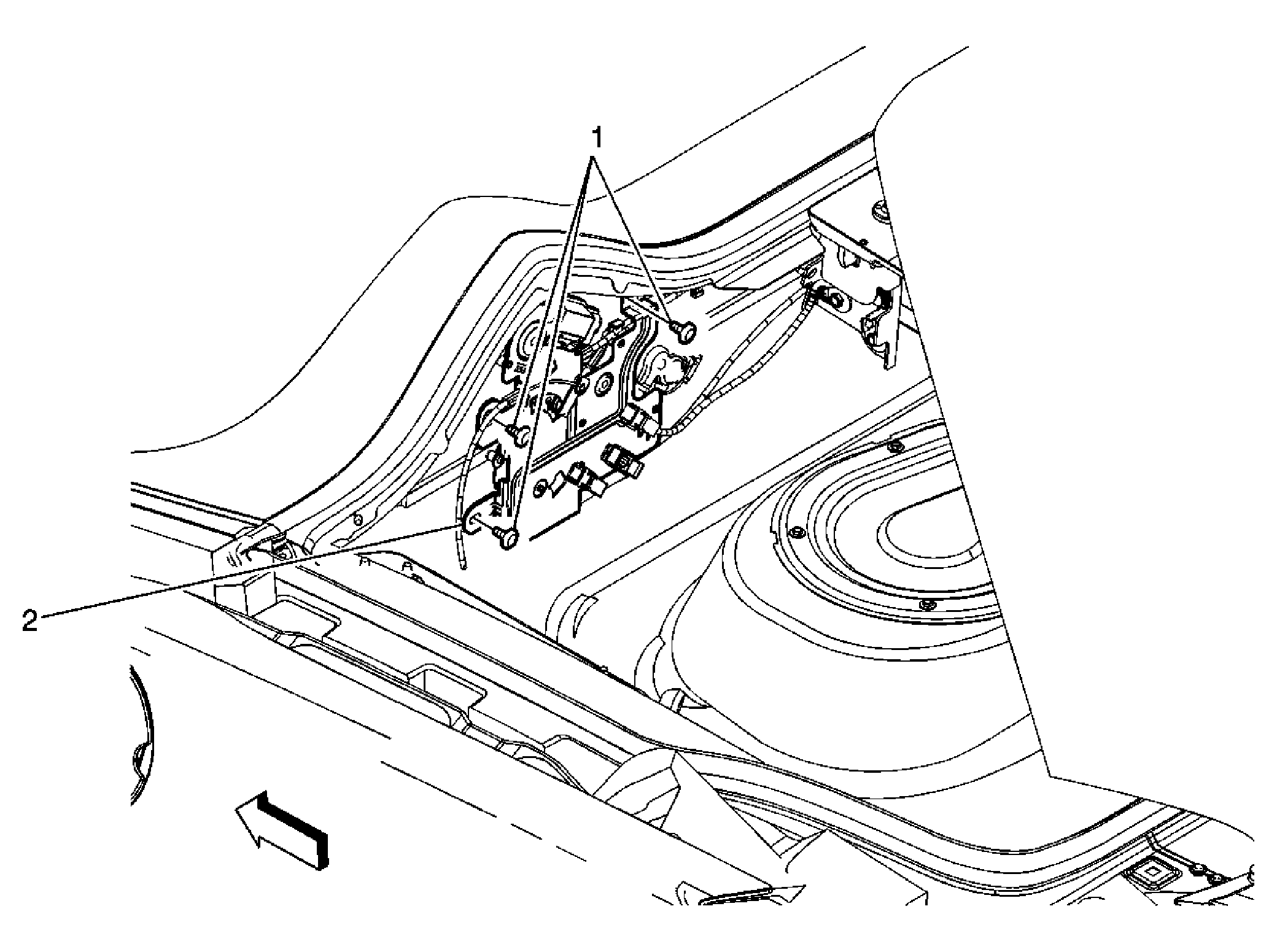

Fig 1: View Of Rear Compartment Latch Release Cable & Bolts
GM1582196Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Latch Release Cable Bolts (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  10 N.m (89 lb in)
2 Rear Compartment Latch Release Cable
Tip:
  1. Remove the left side of the folding top tack strip to gain access to the latch release cables.
  2. Disconnect the release cables.
