Door Lock Cylinder Replacement

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

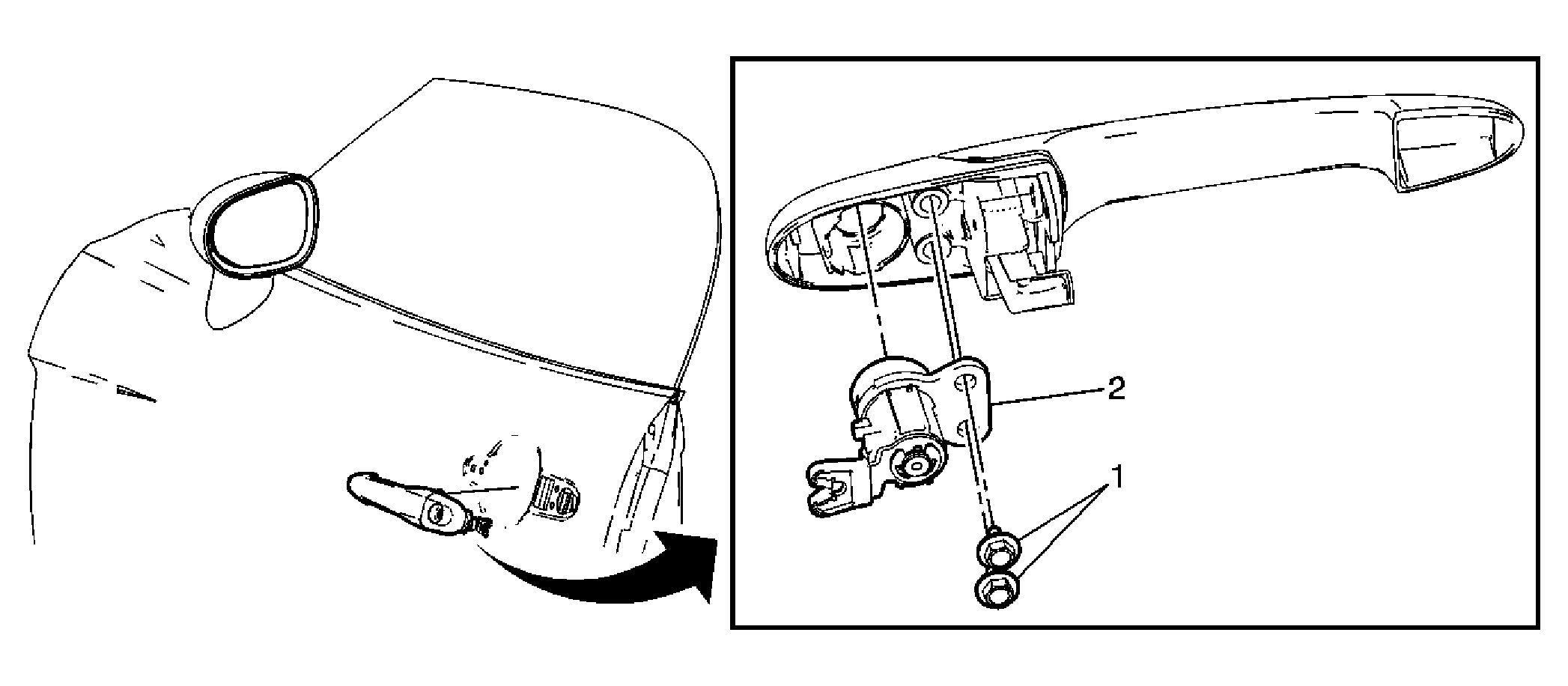

Fig 1: View Of Door Lock Cylinder & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Door Trim Panel Replacement . Remove the water deflector. Refer to Door Water Deflector Replacement . Remove the outside door handle. Refer to Door Outside Handle Replacement .
1	Bolt, Lock Cylinder (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Lock Cylinder, Front Side Door Outside Handle

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Door Trim Panel Replacement .
Remove the water deflector. Refer to Door Water Deflector Replacement .
Remove the outside door handle. Refer to Door Outside Handle Replacement .

Bolt, Lock Cylinder (Qty: 2)

Tighten: 10 N.m (89 lb in)

Lock Cylinder, Front Side Door Outside Handle
