OnStar Schematics

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

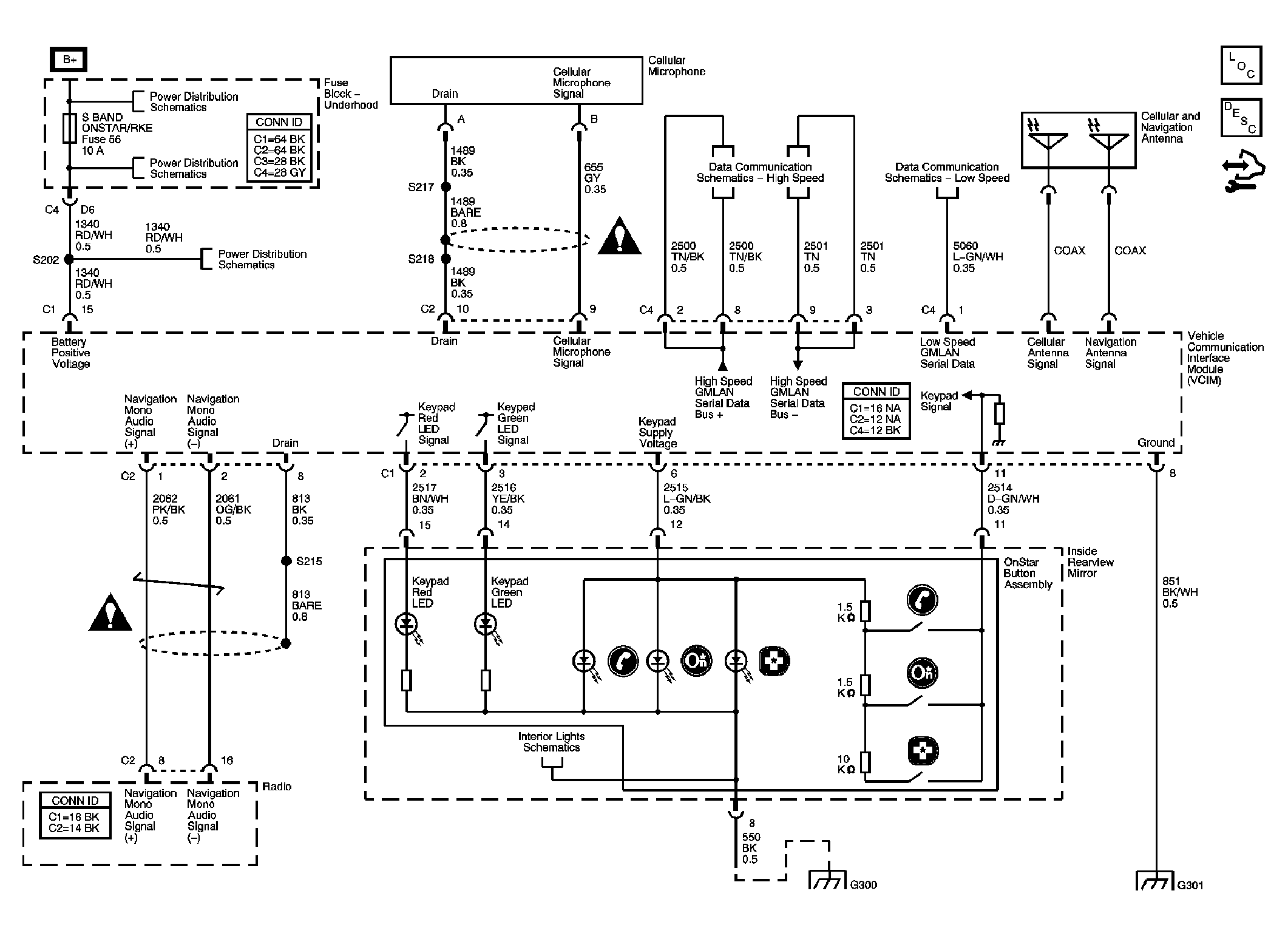

Fig 1: OnStar Schematic
GM1914157Courtesy of GENERAL MOTORS CORP.
