Radio Front Side Door Speaker Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

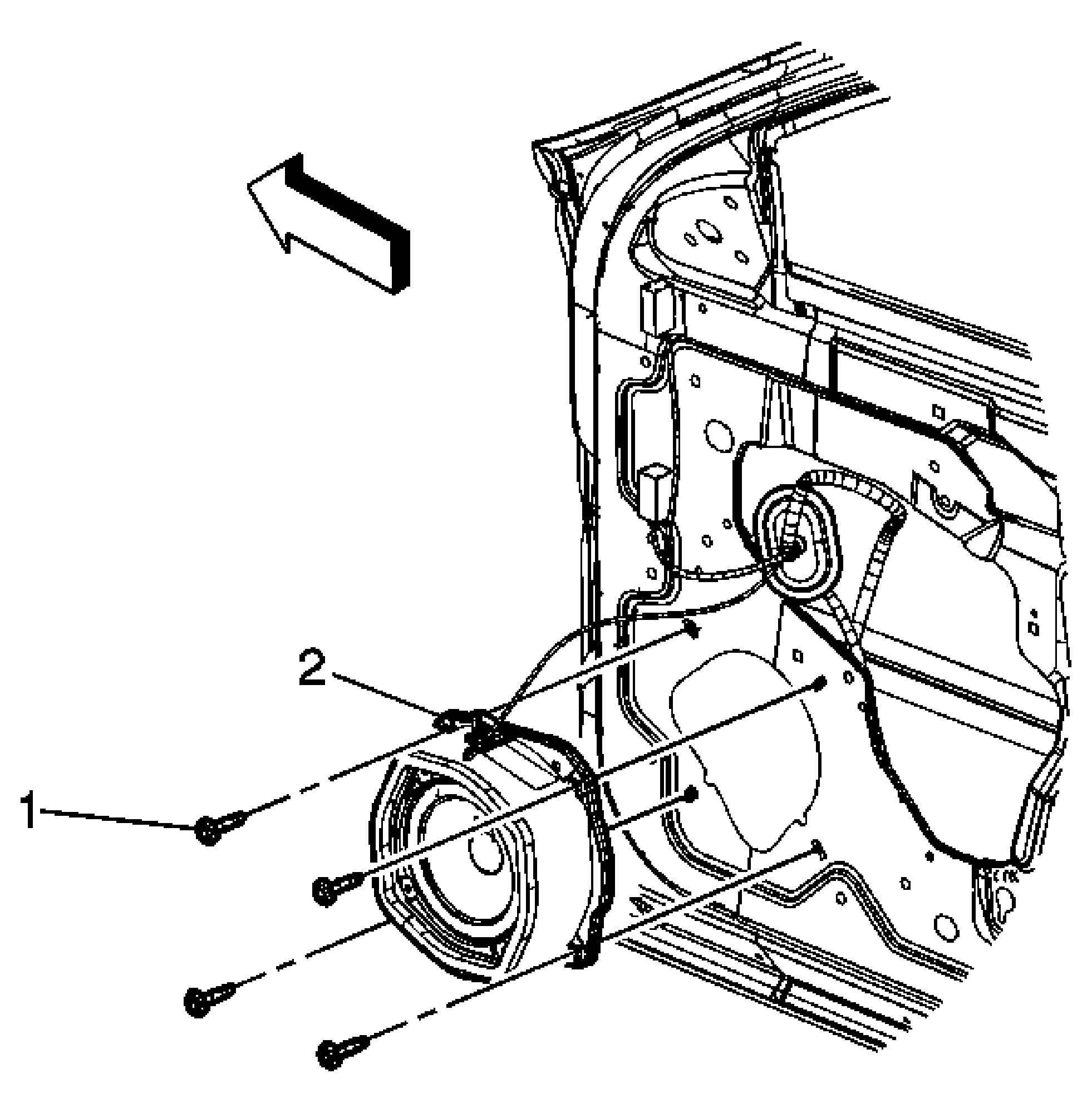

Fig 1: View Of Front Door Speakers & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front door inner trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Door Speaker Screws NOTE: Refer to Fastener Notice . Tighten: 3 N.m (25 lb in)
2	Front Door Speakers
