Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

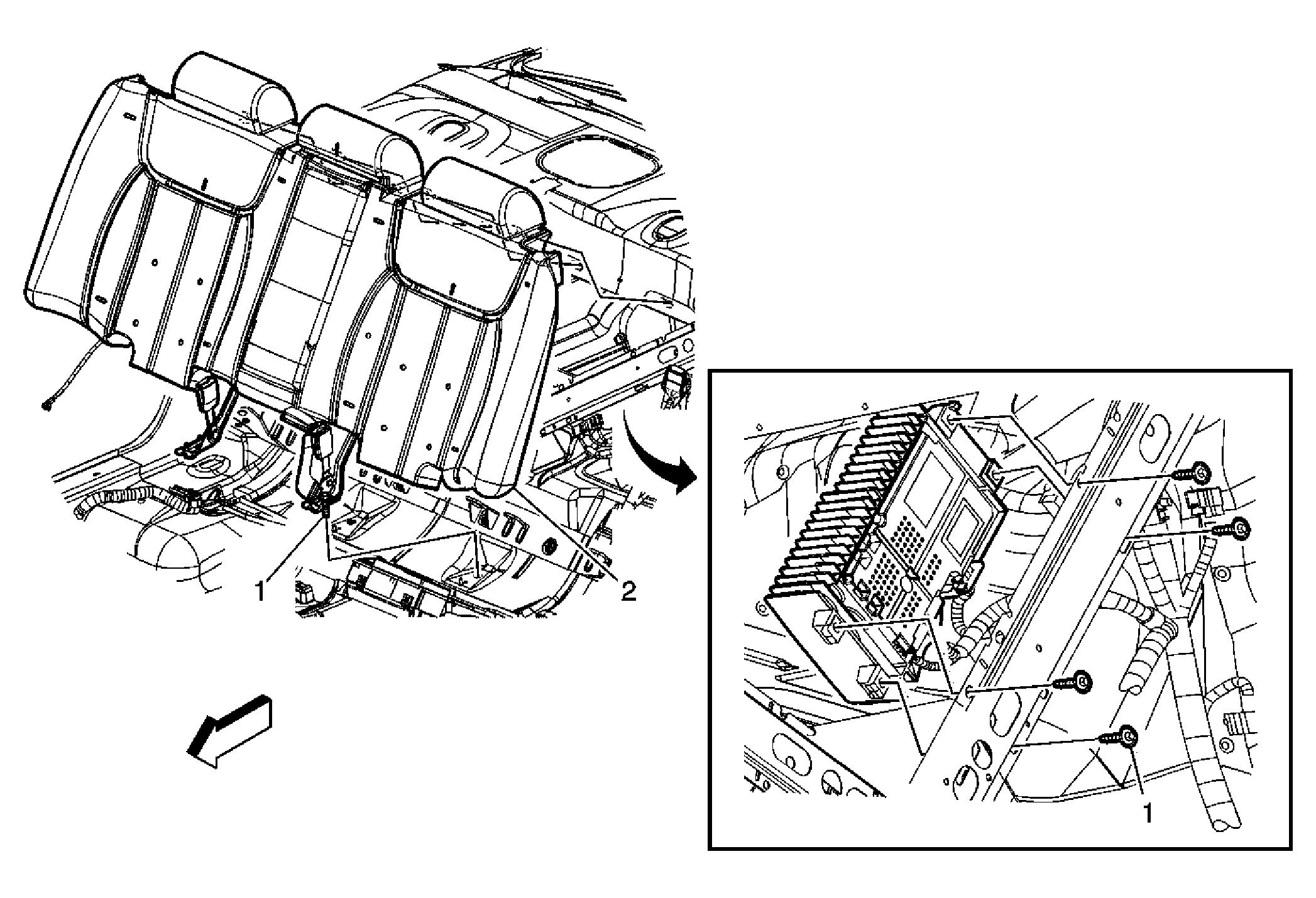

Fig 1: Locating Amplifier & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat back. Refer to Rear Seat Back Replacement . Refer to Control Module References for replacement and setup information.
1	Low Frequency Audio Amplifier Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Low Frequency Audio Amplifier Assembly Tip: Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure

Remove the rear seat back. Refer to Rear Seat Back Replacement .
Refer to Control Module References for replacement and setup information.

Low Frequency Audio Amplifier Bolts (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Low Frequency Audio Amplifier Assembly
Tip: Disconnect the electrical connectors.
