Installation Procedure

    Fig 1: View Of Intake Air Pressure And Temperature Sensor
    GM1829737Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the intake air pressure and temperature sensor O-ring with clean engine oil.
  2. Install the intake air pressure and temperature sensor.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the intake air pressure and temperature sensor bolts and tighten to 2.5 N.m (22 lb in).

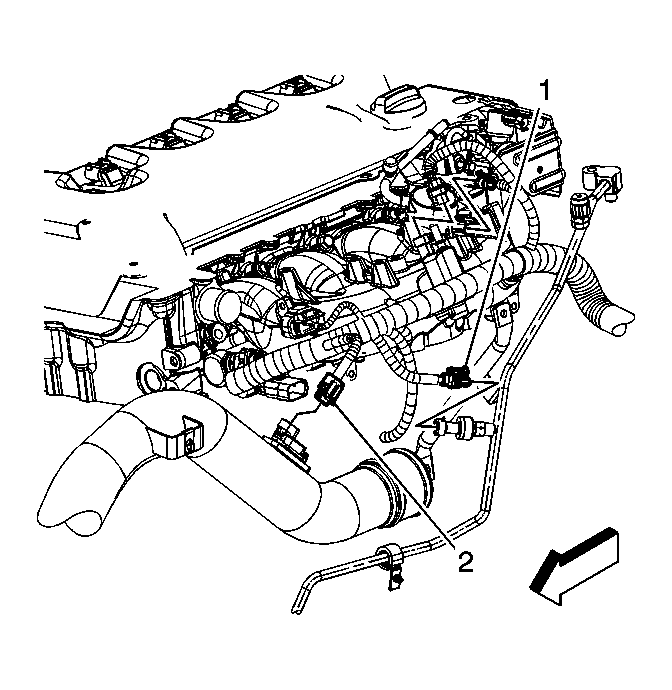

    4. Fig 2: Identifying Intake Air Pressure And Temperature Sensor Electrical Connector
    GM1826861Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (2) to the intake air pressure and temperature sensor.
