Removal Procedure

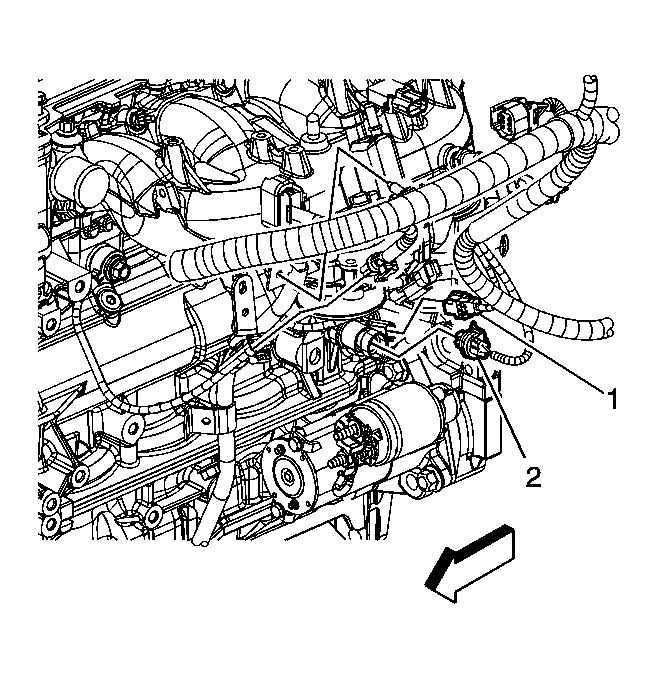

    Fig 1: Identifying CKP Sensor Electrical Connector
    GM1716603Courtesy of GENERAL MOTORS CORP.
  1. Remove the starter. Refer to Starter Replacement .
  2. Disconnect the engine wiring harness electrical connector (1) from the crankshaft position (CKP) sensor.
    3. Fig 2: View Of CKP Sensor
    GM1578475Courtesy of GENERAL MOTORS CORP.
  3. Remove the CKP sensor bolt.
  4. Remove the CKP sensor.
