Installation Procedure

    Fig 1: View Of Air Cleaner Cover Components
    GM1829442Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
  3. Latch the upper air cleaner cover retainer clips.
    4. Fig 2: Identifying Air Cleaner Outlet Duct Clamps
    GM1829443Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner outlet duct to the air cleaner housing.
    5. CAUTION: Refer to Fastener Caution .
  5. Tighten the air cleaner outlet duct clamp (1) at the air cleaner housing to 4 N.m (35 lb in).

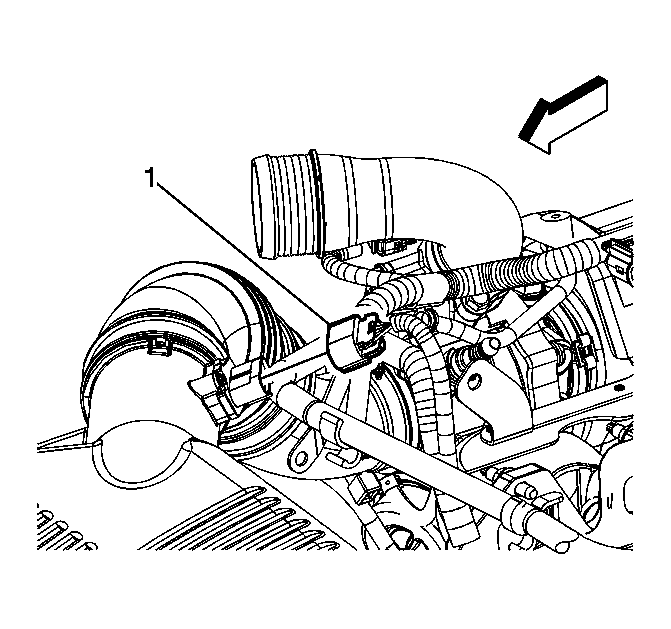

    6. Fig 3: Identifying MAF Sensor Electrical Connector
    GM1826859Courtesy of GENERAL MOTORS CORP.
  6. Connect the engine wiring harness electrical connector (1) to the MAF sensor.
