Fuel Rail Assembly

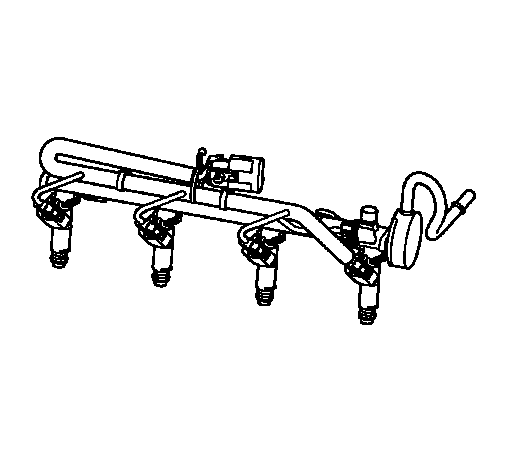

Fig 1: View Of Fuel Rail Assembly

Courtesy of GENERAL MOTORS CORP.

The fuel rail assembly attaches to the cylinder head. The fuel rail assembly performs the following functions:

• Positions the injectors in the intake ports of the cylinder head
• Distributes fuel evenly to the injectors
• Integrates the fuel pulse dampener into the fuel metering system
