Installation Procedure

    Fig 1: Identifying Positive Battery Cables & Cable Components
    GM1593202Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the negative battery cable. Route the cable through the engine wiring harness junction block bracket to battery, main side rail, and BEC.
  2. Install the battery cable clip bolt (3).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Install the negative battery cable clips (4) to the wheelhouse liner.
  4. Install the negative battery cable terminal from the BEC stud.
  5. Install the negative battery cable ground nut (1) at the BEC stud.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

    6. Fig 2: View Of Negative Battery Cable Ground Bolt
    GM1591855Courtesy of GENERAL MOTORS CORP.
  6. Position the engine harness ground terminal behind the negative battery cable terminal and position against the cylinder head.
  7. Install the negative battery cable ground bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    8. Fig 3: Identifying Battery Connections
    GM1593197Courtesy of GENERAL MOTORS CORP.
  8. Install the negative battery cable terminal (3) to the stud.
  9. Install the negative battery cable ground nut (4) at the side rail stud.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

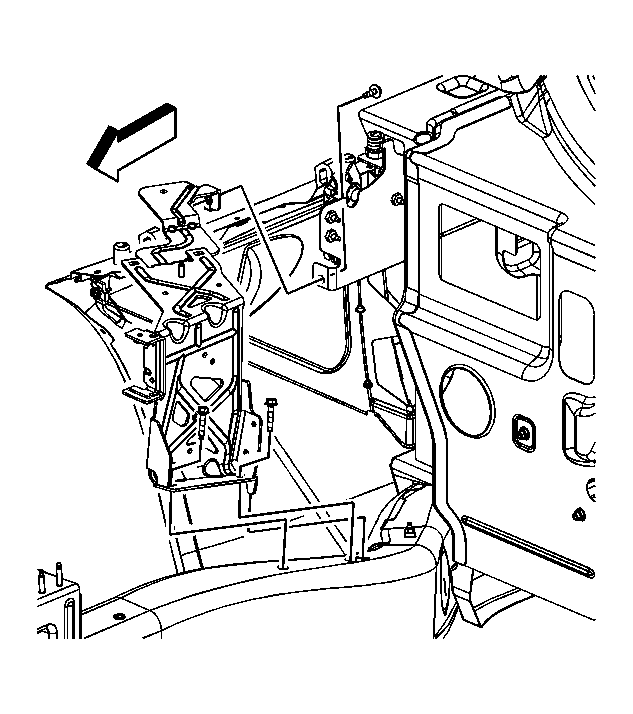

    10. Fig 4: View Of Underhood Bussed Electrical Center (BEC) Bracket & Bolts
    GM1765457Courtesy of GENERAL MOTORS CORP.
  10. position the underhood BEC bracket and electrical center and install the bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  11. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
