Steering Wheel Secondary/Configurable Control Schematics

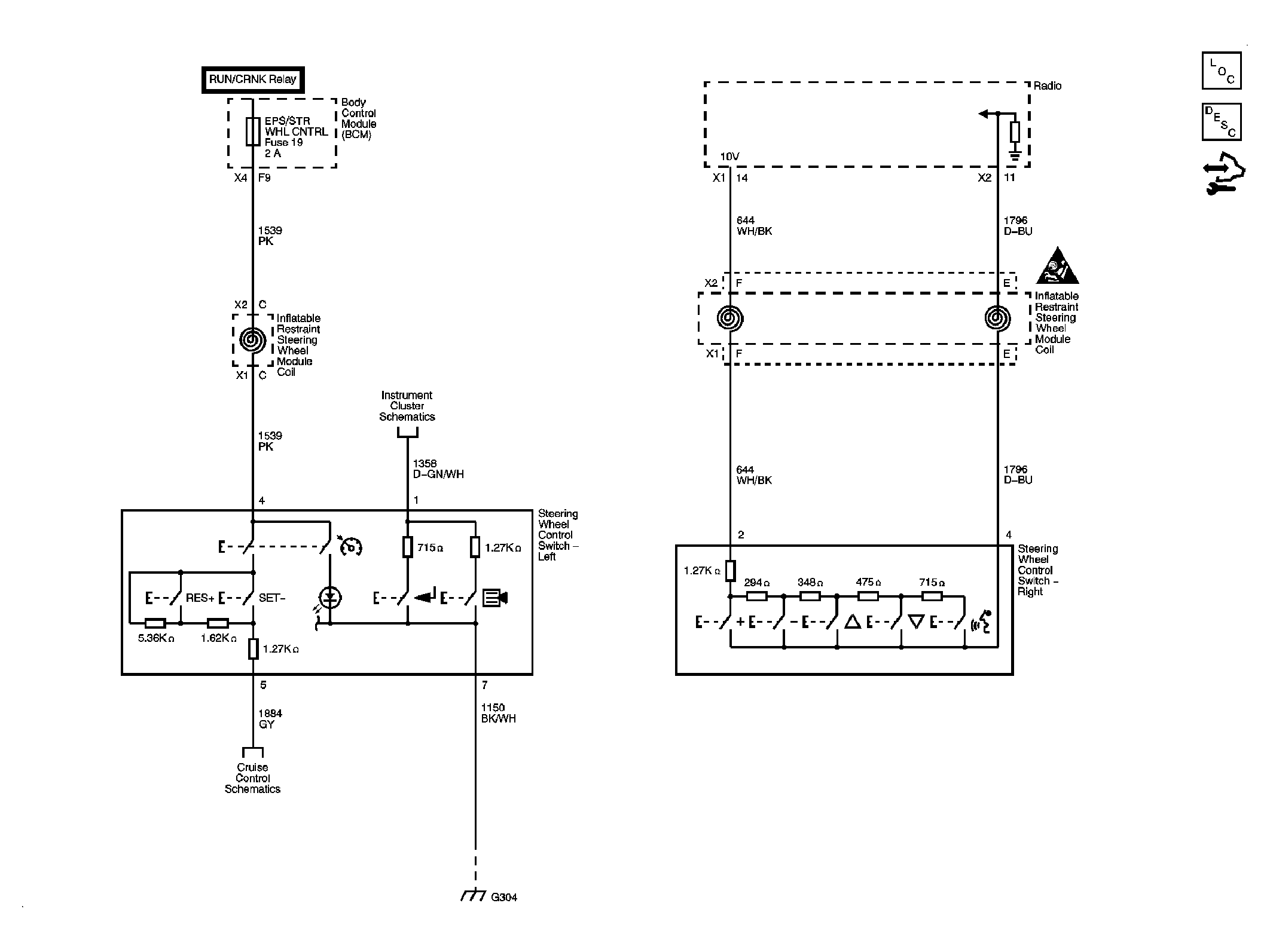

Fig 1: Steering Wheel Secondary/Configurable Control

GM2049650

Courtesy of GENERAL MOTORS CORP.
